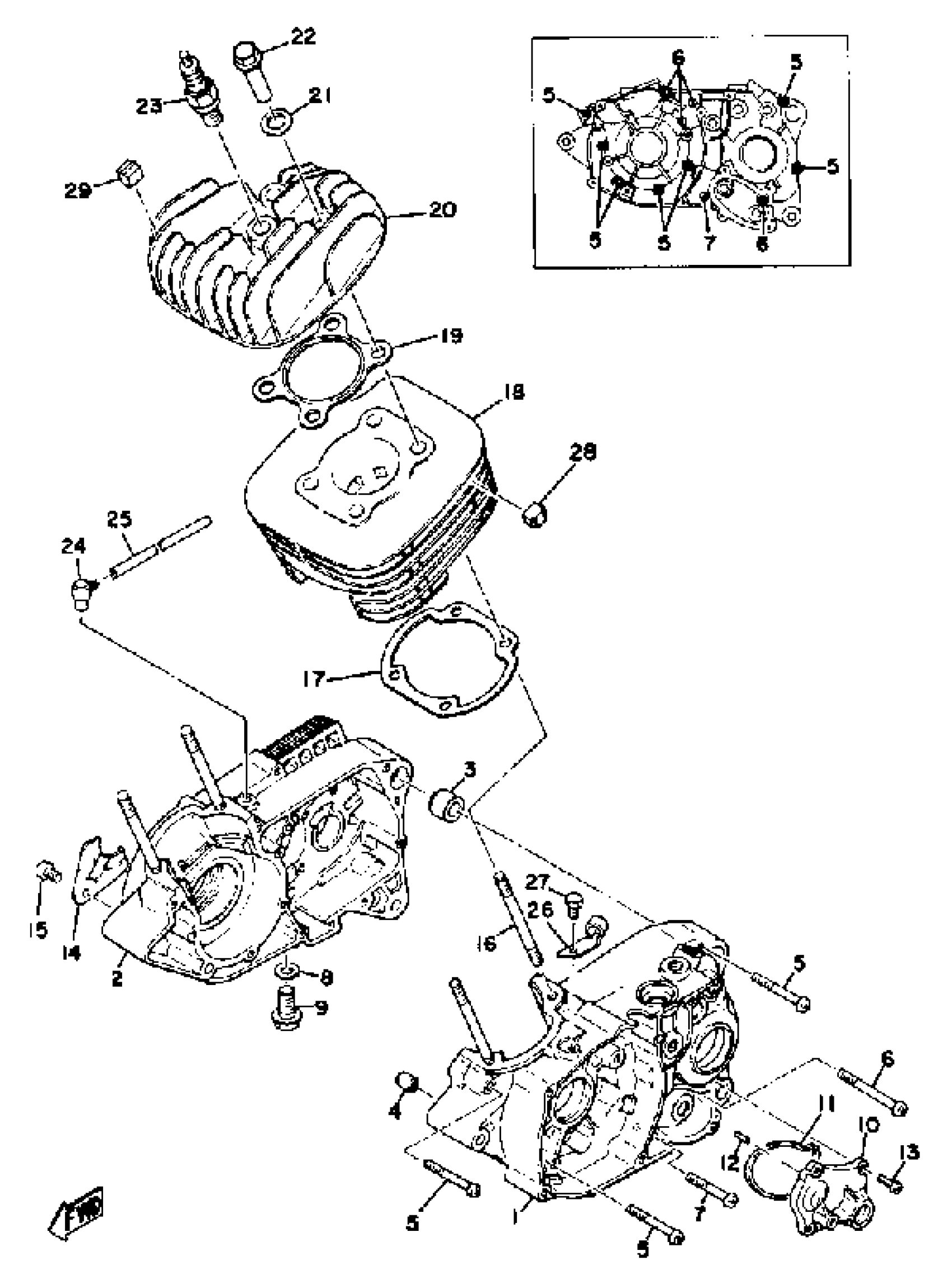

Yamaha DT100E (DT100E) 1978 CYLINDER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

1T9-15111-00-00

Unavailable

2

CRANKCASE 2

1T9-15121-01-00

Unavailable

3

PIN, DOWEL

99530-14016-00

$3.80

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

SCREW PAN HEAD

98580-06550-00

$8.49

6

SCREW, BIND (JH1)

98580-06560-00

Unavailable

7

SCREW PAN HEAD

98580-06040-00

$8.49

8

GASKET (3JD1)

90430-12207-00

$7.99

9

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

10

COVER, SHIFTER

437-15419-01-00

$82.99

11

RING, RUBBER

401-15449-00-00

$29.99

12

PIN,DOWEL (603)

93603-12007-00

$2.55

13

SCREW, PAN

98507-06014-00

$8.49

14

HOLDER (R.H)

304-15128-00-00

$6.99

15

SCREW, PAN

98507-08010-00

$8.49

16

BOLT STUD 276113610000

90116-08065-00

Unavailable

17

GASKET, CYLINDER

3UL-11351-00-00

Unavailable

18

CYLINDER 1

1T9-11311-00-00

Unavailable

18

CYLINDER 1

3A3-11311-01-00

Unavailable

19

GASKET,CYLINDER HEAD

276-11181-01-00

Unavailable

19

GASKET, CYLINDER HEAD

304-11181-70-00

Unavailable

20

HEAD, CYLINDER 1

1T9-11111-00-00

Unavailable

20

HEAD, CYLINDER 1

(3A3-11111-00-00)

Unavailable

21

WASHER PLATE 278111750000

90201-12362-00

Unavailable

22

NUT (3V6)

90179-08303-00

Unavailable

23

B7ES NGK SPLUG 4PK

B7E-S0000-00-00

Unavailable

24

BREATHER

583-15371-00-00

Unavailable

25

HOSE (L200)

90445-07176-00

Unavailable

26

HOLDER, CLUTCH CABLE

401-15441-02-00

Unavailable

27

BOLT (661)

97013-06012-00

Unavailable

28

ABSORBER

434-11161-00-00

Unavailable

28

ABSORBER 1

521-11161-01-00

Unavailable

28

ABSORBER 1

521-11161-01-00

Unavailable

29

ABSORBER 1

(427-11161-00-00)

Unavailable

29

ABSORBER 1

(427-11161-00-00)

Unavailable
