Description

Price

1

CLUTCH ASSEMBLY

(1V1-16301-10-00)

Unavailable

2

. PRIMARY DRIVEN GEAR COMP (74T)

1V1-16150-10-00

Unavailable

3

PLATE, THRUST

131-16154-00-00

Unavailable

4

BOSS, CLUTCH

1V1-16371-02-00

Unavailable

5

RING, CUSHION

1V1-16367-01-00

$8.99

6

PLATE, FRICTION

598-16321-01-00

$17.49

7

PLATE, CLUTCH 1

1V1-16324-10-00

$22.99

8

PLATE, PRESSURE

598-16351-00-00

Unavailable

9

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

10

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

11

ROD,PUSH (1)

137-16356-00-00

$31.99

12

NUT, HEXAGON 1371637700

90170-12060-00

$9.49

13

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

14

SPACER (525)

90560-17147-00

Unavailable

15

UNAVAILABLE IN PRICE BOOK

92011-75580-0

Unavailable

16

BALL

93503-16003-00

Unavailable

17

ROD, PUSH 2

1X0-16357-00-00

Unavailable

18

PUSH LEVER ASSEMBLY

525-16380-00-00

Unavailable

19

SPRING, TORSION

90508-14132-00

Unavailable

20

WASHER PLATE 150251530000

90201-14217-00

Unavailable

21

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

22

SCREW

90149-12097-00

Unavailable

23

O-RING (611)

93210-10096-00

Unavailable

24

NUT

90179-12197-00

Unavailable

25

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

Unavailable

26

NUT(1EE)

90179-12659-00

Unavailable

27

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

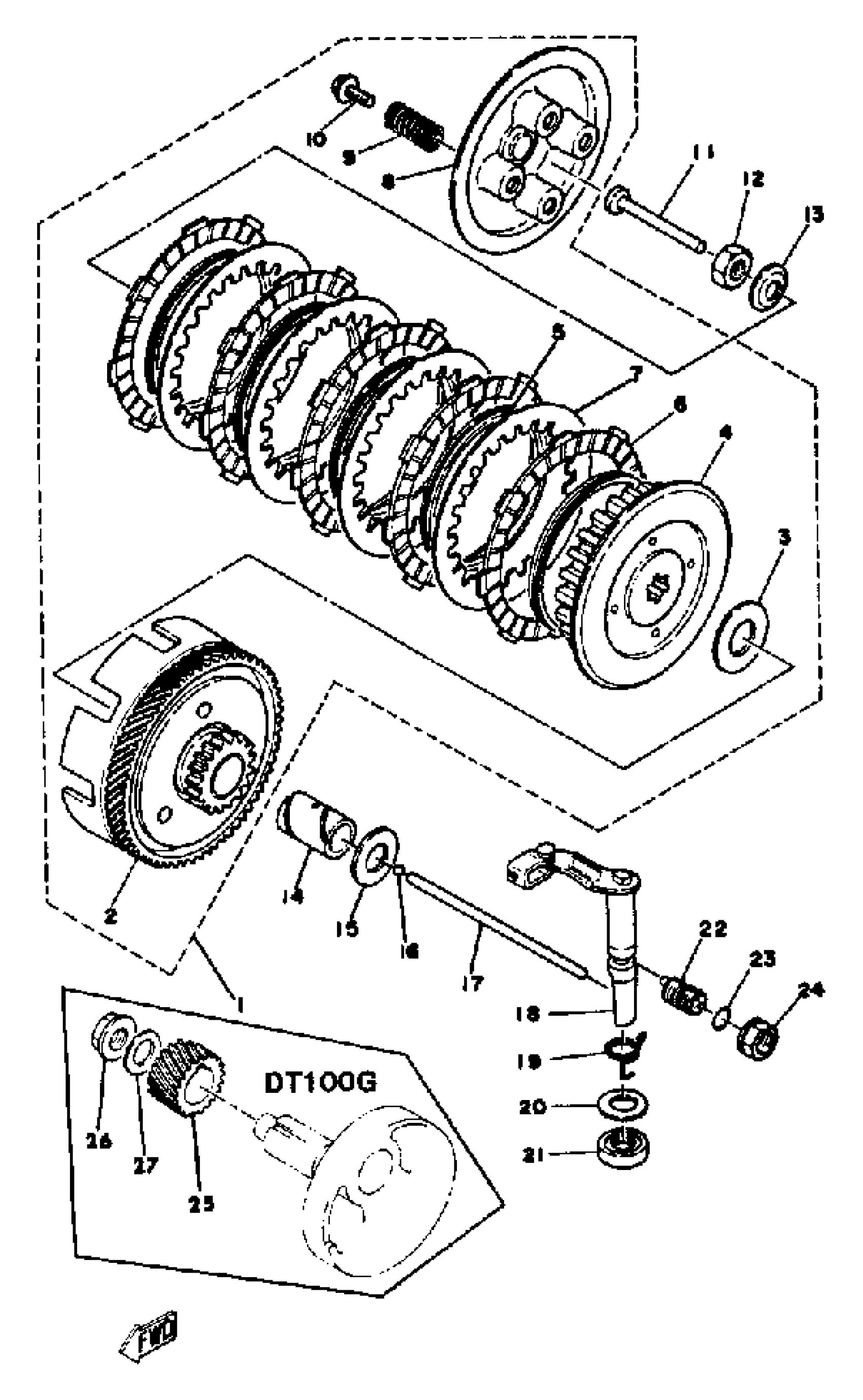

Yamaha DT100E (DT100E) 1978 CLUTCH Diagram

CLUTCH ASSEMBLY

. PRIMARY DRIVEN GEAR COMP (74T)

PLATE, THRUST

BOSS, CLUTCH

RING, CUSHION

PLATE, FRICTION

PLATE, CLUTCH 1

PLATE, PRESSURE

SPRING COMPRESSION132163330000

BOLT, HEXAGON WITH WASHER(353)

ROD,PUSH (1)

NUT, HEXAGON 1371637700

WASHER, CONICAL SPRING 12,2 X

SPACER (525)

UNAVAILABLE IN PRICE BOOK

BALL

ROD, PUSH 2

PUSH LEVER ASSEMBLY

SPRING, TORSION

WASHER PLATE 150251530000

OIL SEAL (14X25X5-2H7)

SCREW

O-RING (611)

NUT

GEAR, PRIMARY DRIVE (19T)

NUT(1EE)

WASHER, CONICAL SPRING 12,2 X
