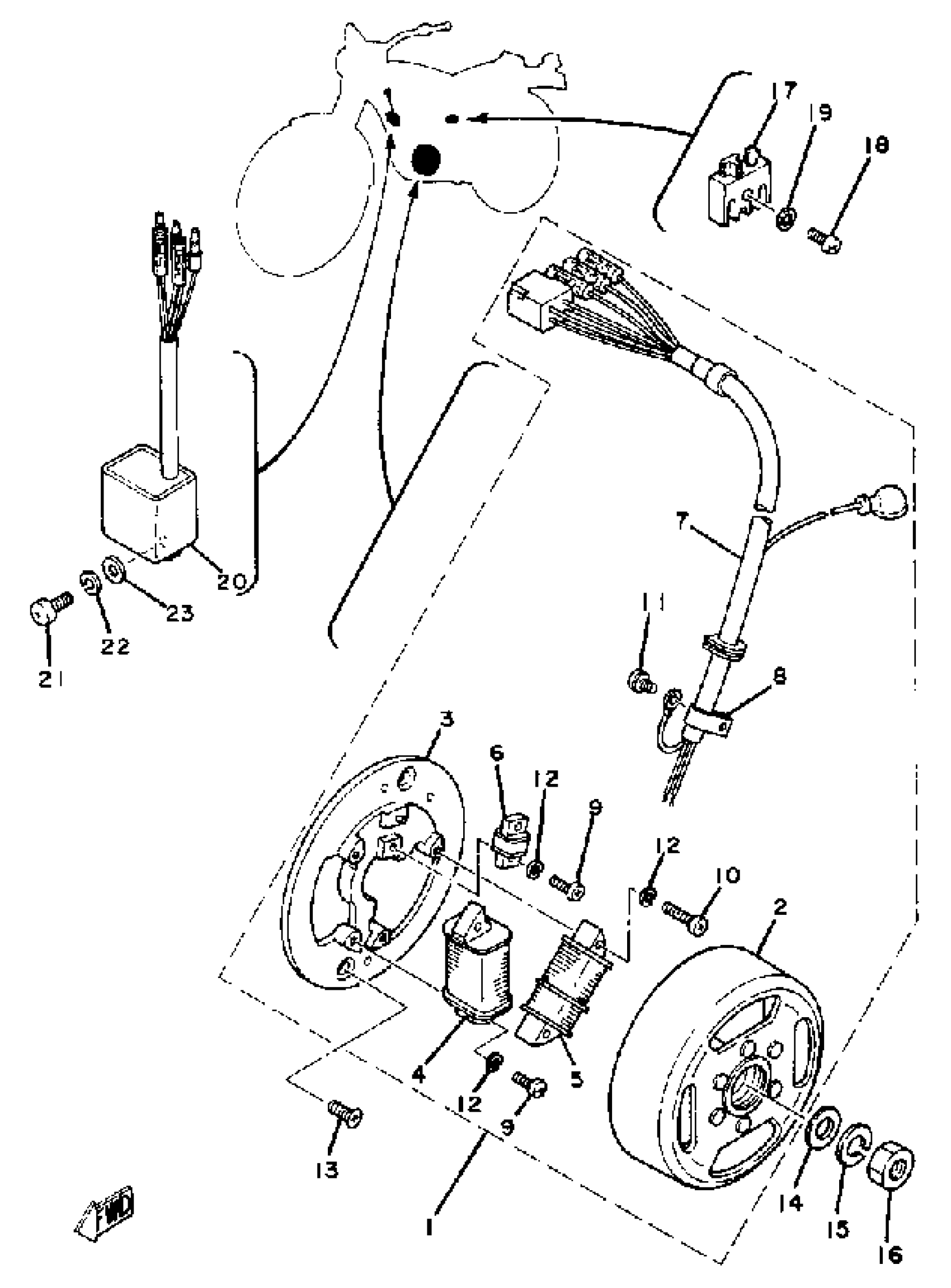

Yamaha DT100E (DT100E) 1978 CDI MAGNETO DT100G Diagram

#

Description
Price

1

CDI MAGNETO ASSEMBLY

(3A3-85500-20-00)

Unavailable

2

. ROTOR ASSEMBLY

3A3-85550-20-00

Unavailable

3

BASE, MAGNETO

(3A3-85509-20-00)

Unavailable

4

. COIL SOURCE 2

3A3-85512-20-00

Unavailable

5

. COIL, LIGHTING 1

3A3-85513-20-00

Unavailable

6

. COIL, PULSER

3A3-85580-20-00

Unavailable

7

LEAD WIRE ASSEMBLY

(3A3-85515-20-00)

Unavailable

8

CLAMP, LEAD

104-81328-20-00

$6.99

9

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

10

SCREW, PAN HEAD

98517-04025-00

Unavailable

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

13

SCREW, FLAT HEAD

98780-06014-00

Unavailable

14

WASHER (492)

90201-12535-00

Unavailable

15

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

16

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

17

RECTIFIER ASSY

353-81970-M2-00

Unavailable

18

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

19

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

20

CDI UNIT ASSEMBLY

3A3-85540-20-00

Unavailable

21

SCREW, PAN

98507-06014-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

WASHER, PLAIN (646)

92990-06600-00

Unavailable
