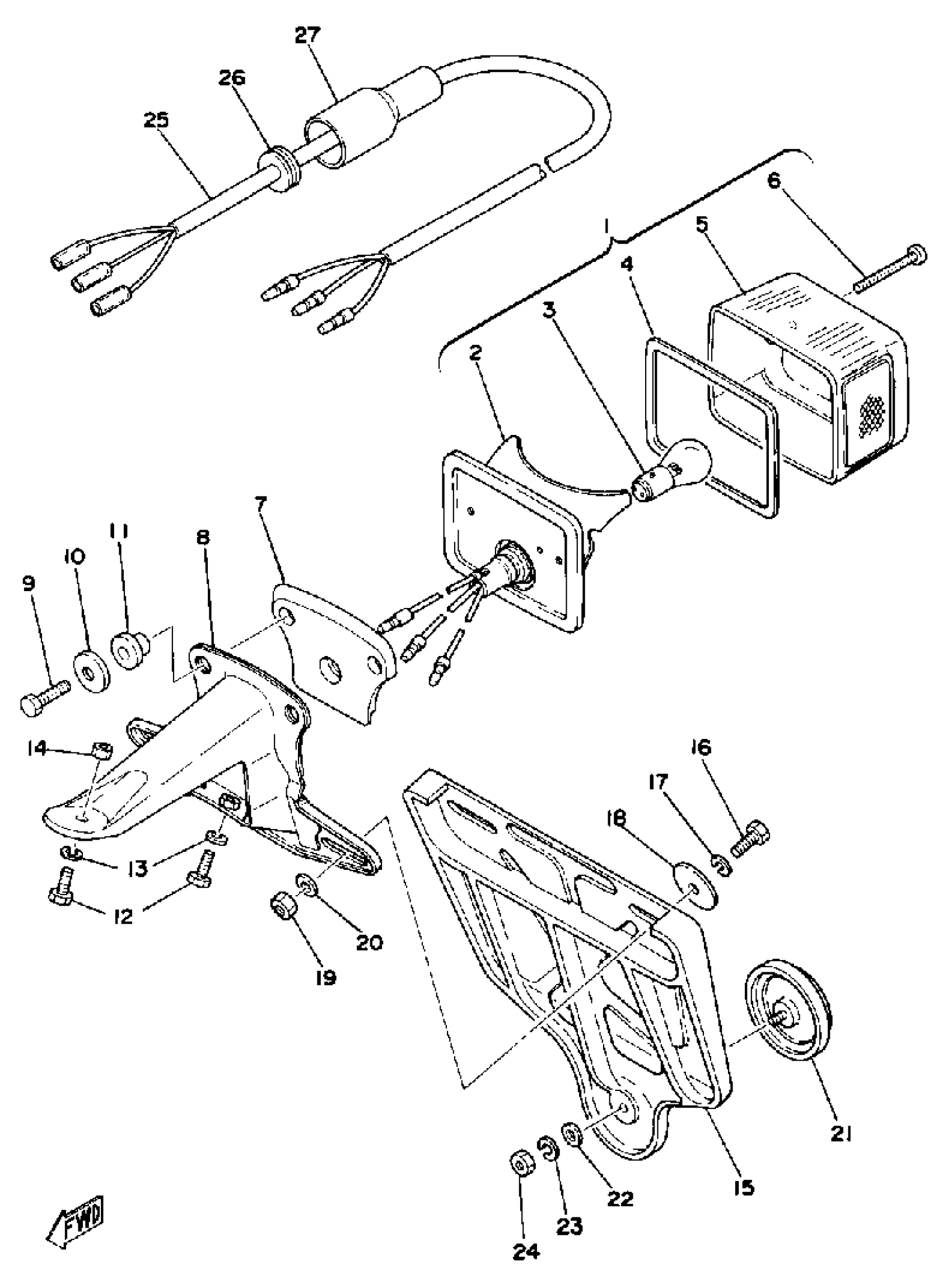

Yamaha DT100D (DT100D) 1977 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

1M1-84510-60-00

Unavailable

2

. BASE, TAILLIGHT

1M1-84511-60-00

Unavailable

3

. BULB

1M1-84514-60-00

Unavailable

4

GASKET, TAIL LENS

1M1-84523-60-00

$13.49

5

LENS, TAIL LAMP

1M1-84521-60-00

$39.99

6

SCREW, ADJUSTING

5BF-8433E-00-00

$7.99

7

SEAT, BASE

1M1-84512-60-00

Unavailable

8

BRACKET, LICENCE

(1T9-84551-60-33)

Unavailable

9

BOLT 337847520000

90109-06005-00

$7.49

10

WASHER, SPECIAL

2H7-84754-00-00

$10.99

11

DAMPER

1M1-84527-60-00

$8.99

12

BOLT (661)

97013-06012-00

$5.60

13

WASHER, SPRING

92995-06100-00

Unavailable

14

NUT, HEXAGON

95380-06600-00

Unavailable

15

BRACKET, REFLECT 1

(1M1-85132-61-00)

Unavailable

16

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

WASHER PLATE 248217570000

90201-06074-00

Unavailable

19

NUT, HEXAGON

95380-06600-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

REFLECTOR, REAR 1

1M1-85131-10-00

Unavailable

22

. WASHER, PLAIN

92990-05200-00

Unavailable

23

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

24

NUT, HEXAGON (663)

95380-05600-00

Unavailable

25

CORD, TAILLIGHT

1T9-84517-00-00

Unavailable

26

GROMMET

90480-12529-00

Unavailable

27

COVER, CONNECTER

(538-82599-10-00)

Unavailable
