Description

Price

1

SEAL, DUST

164-23462-00-00

$7.99

2

RACE, BALL 1

B6E-23411-00-00

$8.49

3

BALL

93501-04011-00

$8.49

4

RACE, BALL 2

B6E-23412-00-00

$13.49

5

RACE, BALL 2

BP2-23412-00-00

$7.49

6

BALL

93503-16003-00

$2.72

7

RACE, BALL 1

BP2-23411-00-00

$11.49

8

COVER, BALL RACE

122-23416-00-00

$7.99

9

NUT

90179-25004-00

$24.99

10

CROWN, HANDLE

354-23435-00-33

Unavailable

11

BOLT, WASHER BASED HEAD (10V)

90105-14220-00

$4.72

12

HOLDER, HANDLE UPPER

401-23441-00-98

Unavailable

13

BOLT, HEXAGON

97013-08030-00

$2.49

14

WASHER, PLATE 1562722600

90201-08083-00

$9.49

15

BOLT, HEXAGON

97013-08030-00

$2.49

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

17

STEERING LOCK ASSEMBLY

2N3-23408-00-00

Unavailable

18

SCREW(617)

98780-05012-00

Unavailable

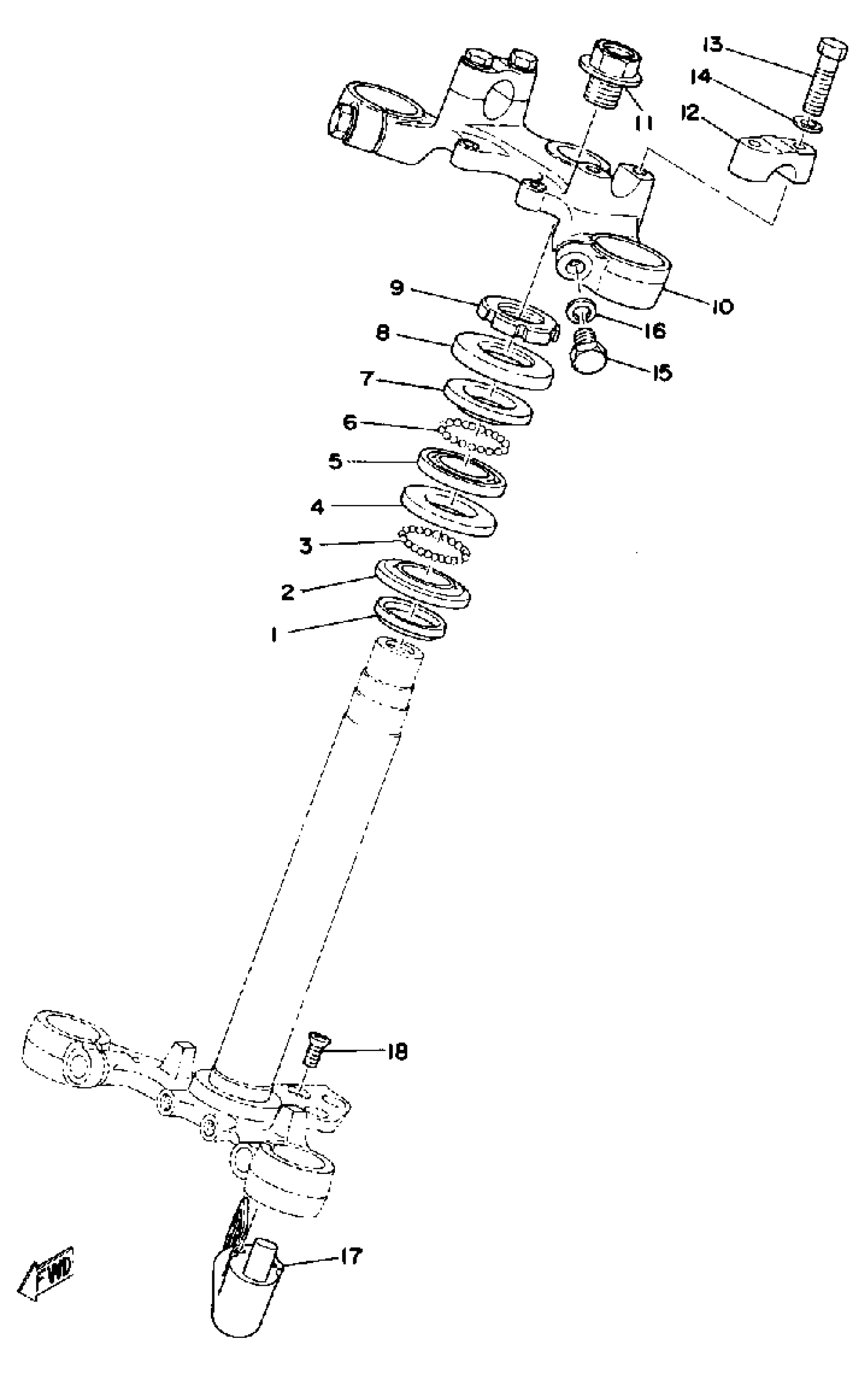

Yamaha DT100D (DT100D) 1977 STEERING Diagram

SEAL, DUST

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE

NUT

CROWN, HANDLE

BOLT, WASHER BASED HEAD (10V)

HOLDER, HANDLE UPPER

BOLT, HEXAGON

WASHER, PLATE 1562722600

BOLT, HEXAGON

YBS67-8 WASHER, SPRING

STEERING LOCK ASSEMBLY

SCREW(617)
