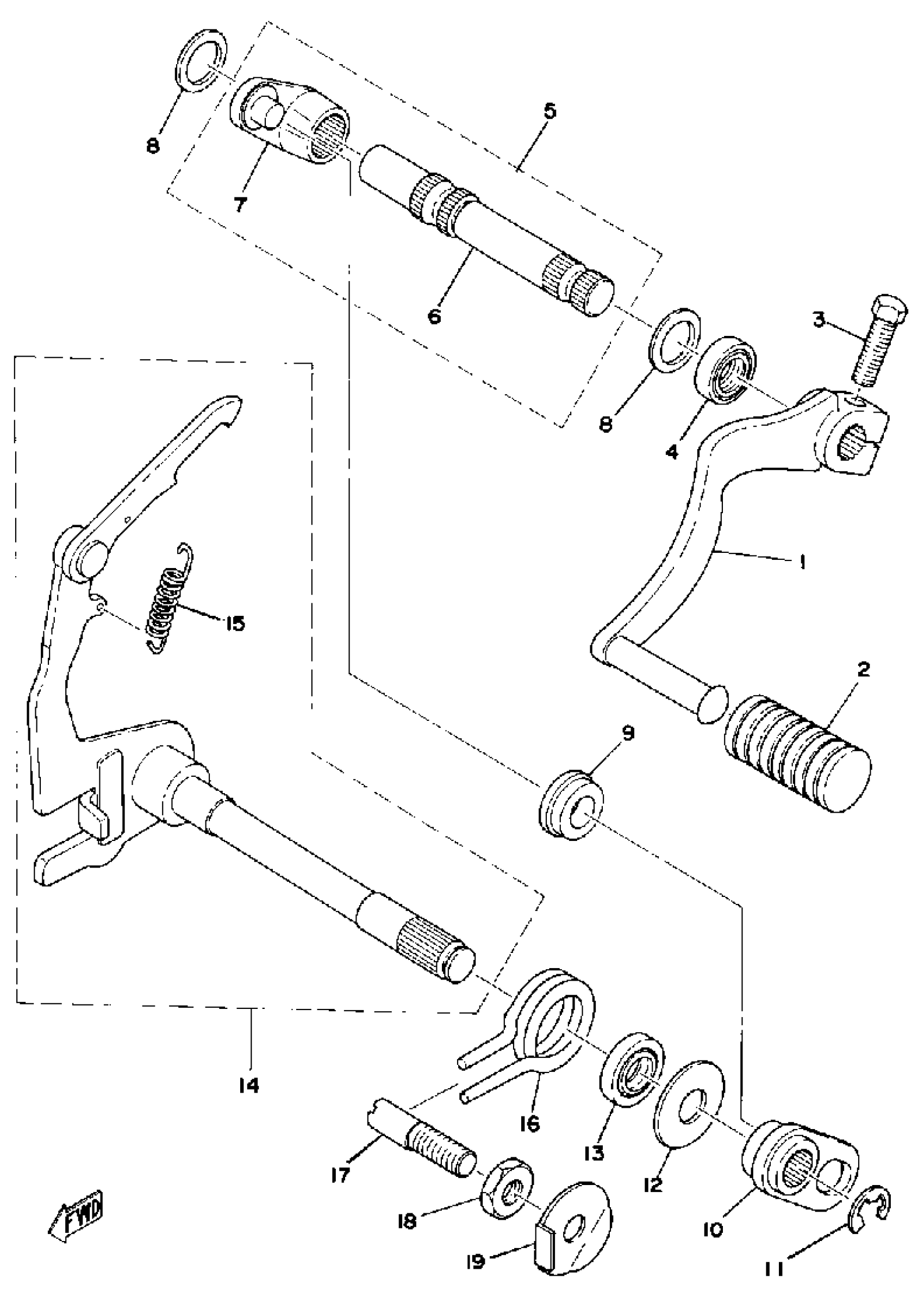

Yamaha DT100D (DT100D) 1977 SHIFTER 2 Diagram

PEDAL, SHIFT

1X0-18111-00-00

Unavailable

COVER, CHANGE PEDAL

132-18113-01-00

$7.99

BOLT, HEXAGON

97017-06020-00

$4.06

OIL SEAL (12X19X5-401)

93109-12012-00

$10.49

SHIFT SHAFT ASY 2

401-18102-02-00

Unavailable

SHAFT,SHIFT 2

401-18155-02-00

Unavailable

LEVER, SHIFT 3

401-18151-00-00

Unavailable

SHIM

401-18334-00-00

$6.99

ROLLER, CHANGE LEVER

401-18178-00-00

$19.99

LEVER, CHANGE 4

401-18152-01-00

Unavailable

CIRCLIP(2R6)

99001-08600-00

$8.49

WASHER, PLATE (353)

90201-12575-00

$8.49

OIL SEAL

93101-12173-00

$13.49

SHIFT SHAFT ASSEMBLY

558-18101-00-00

Unavailable

SPRING TENSION 132181230000

90506-09009-00

Unavailable

SPRING TORSION 132181240000

90508-32207-00

Unavailable

UNAVAILABLE IN PRICE BOOK

90194-08094-00

Unavailable

NUT (583)

90170-08193-00

Unavailable

WASHER LOCK 248181390000

90215-08014-00

Unavailable
