Description

Price

1

SINGLE SEAT ASSEMBLY

1T9-W2471-01-00

Unavailable

2

. COVER, SINGLE SEAT

1T9-24711-00-00

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

HINGE, SEAT

538-24726-00-00

Unavailable

5

BRACKET, SEAT

278-24728-00-00

Unavailable

6

STOPPER

1T9-24768-00-00

Unavailable

7

BOLT (661)

97013-06012-00

$5.60

8

BOLT (583)

90101-06304-00

$7.49

9

WASHER, SPRING

92995-06100-00

Unavailable

10

PIN

1K8-24774-00-00

Unavailable

11

SEAT LOCK ASSEMBLY

526-24705-00-00

Unavailable

12

BOLT (661)

97013-06012-00

$5.60

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

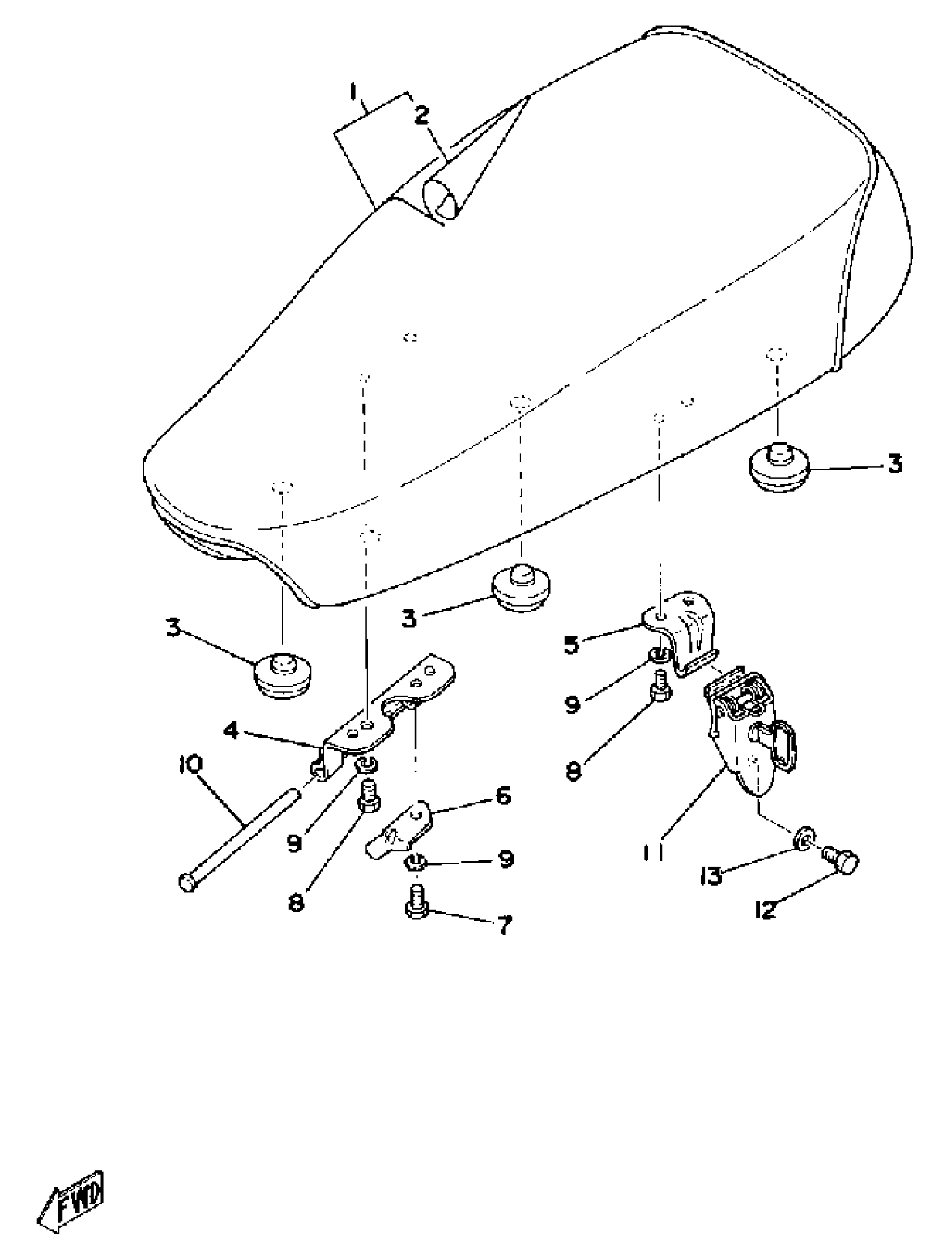

Yamaha DT100D (DT100D) 1977 SEAT Diagram

SINGLE SEAT ASSEMBLY

. COVER, SINGLE SEAT

PAD, SEAT

HINGE, SEAT

BRACKET, SEAT

STOPPER

BOLT (661)

BOLT (583)

WASHER, SPRING

PIN

SEAT LOCK ASSEMBLY

BOLT (661)

YBS66-6 WASHER, PLAIN
