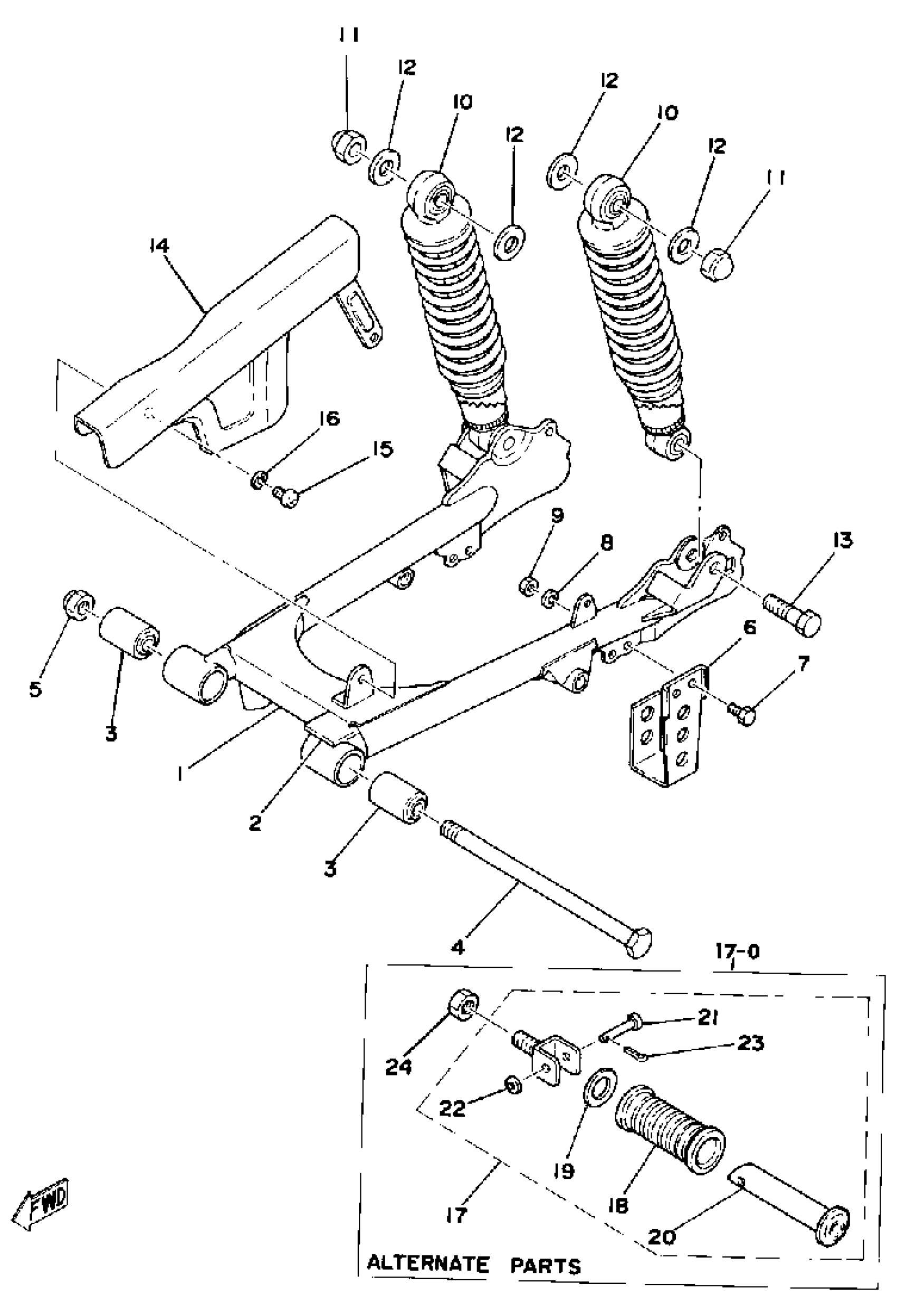

Yamaha DT100D (DT100D) 1977 REAR ARM REAR CUSHION CHAIN CASE Diagram

#

Description
Price

0

BUDDY PEGS

120-W0096-00-00

Unavailable

1

REAR ARM

1T9-22110-01-33

Unavailable

2

SEAL, GUARD

183-22151-00-00

$8.99

3

BUSH 1

276-22123-00-00

$38.99

4

AXLE,WHEEL

2J5-25381-01-00

Unavailable

5

NUT, NYLON

95717-12300-00

$7.49

6

GUARD, CHAIN

492-22153-00-33

Unavailable

7

BOLT(8CP)

97017-06014-00

$8.49

8

WASHER, SPRING

92995-06100-00

Unavailable

9

NUT, HEXAGON

95380-06600-00

Unavailable

10

SHK/ABS ASY,REAR

3UL-22210-00-33

Unavailable

11

NUT CROWN(663)

95380-12800-00

Unavailable

12

WASHER, PLATE (4N0)

90201-126A7-00

$9.49

13

BOLT(M35)

90101-10776-00

Unavailable

14

CASE, CHAIN

1T9-22311-00-33

Unavailable

15

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

16

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

17

REAR FOOTREST ASSY

120-27430-02-00

Unavailable

18

COVER, REAR FOOTREST

120-27433-00-00

Unavailable

19

WASHER, PLATE (888)

90201-20279-00

Unavailable

20

FOOTREST, REAR 1

2GV-27431-00-00

Unavailable

21

PIN, CLEVIS (1Y8)

91701-06032-00

Unavailable

22

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

23

PIN, COTTER

91490-16020-00

Unavailable

24

NUT, HEXAGON SMALL

95317-12700-00

Unavailable
