Description

Price

1

TANK, OIL

1T9-21751-00-00

Unavailable

2

BODY, CAP

1T9-21771-01-00

$7.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

HOSE (L600)

90445-083J5-00

$10.49

5

CLIP 101235600

90467-08003-00

$10.49

6

BOLT, HEXAGON

97017-06025-00

$4.24

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE

90201-06380-00

$0.60

10

PLATE, BATT FITTING

(1T9-82136-00-00)

Unavailable

11

BOLT (661)

97013-06012-00

$5.60

12

WASHER, SPRING

92995-06100-00

Unavailable

13

OIL LVL GAUGE ASSEMBLY

(1E7-85720-02-00)

Unavailable

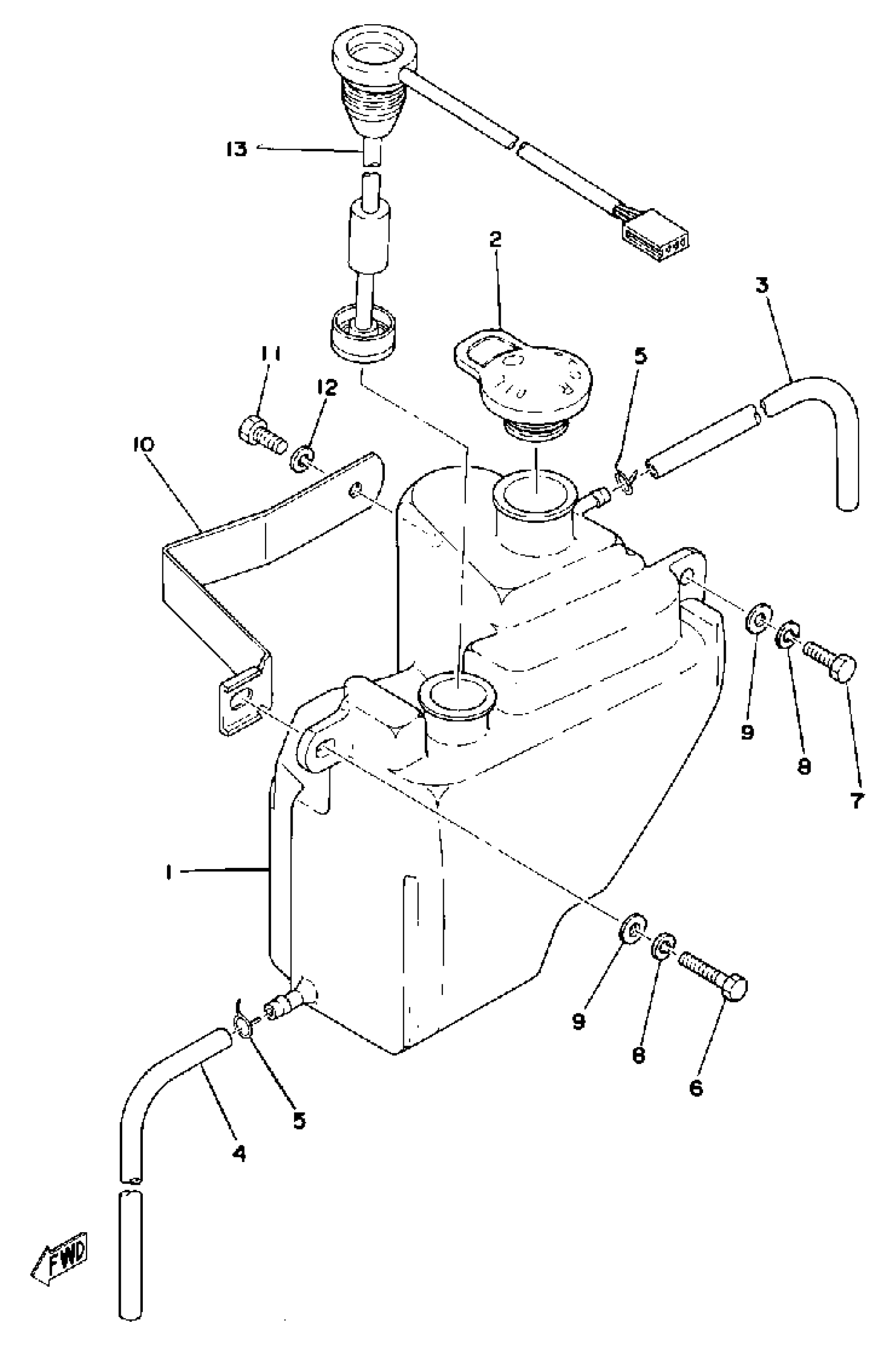

Yamaha DT100D (DT100D) 1977 OIL TANK Diagram

TANK, OIL

BODY, CAP

HOSE (L420)

HOSE (L600)

CLIP 101235600

BOLT, HEXAGON

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE

PLATE, BATT FITTING

BOLT (661)

WASHER, SPRING

OIL LVL GAUGE ASSEMBLY
