1977 Yamaha DT100D (DT100D) Handle Wire Diagram

← All diagrams

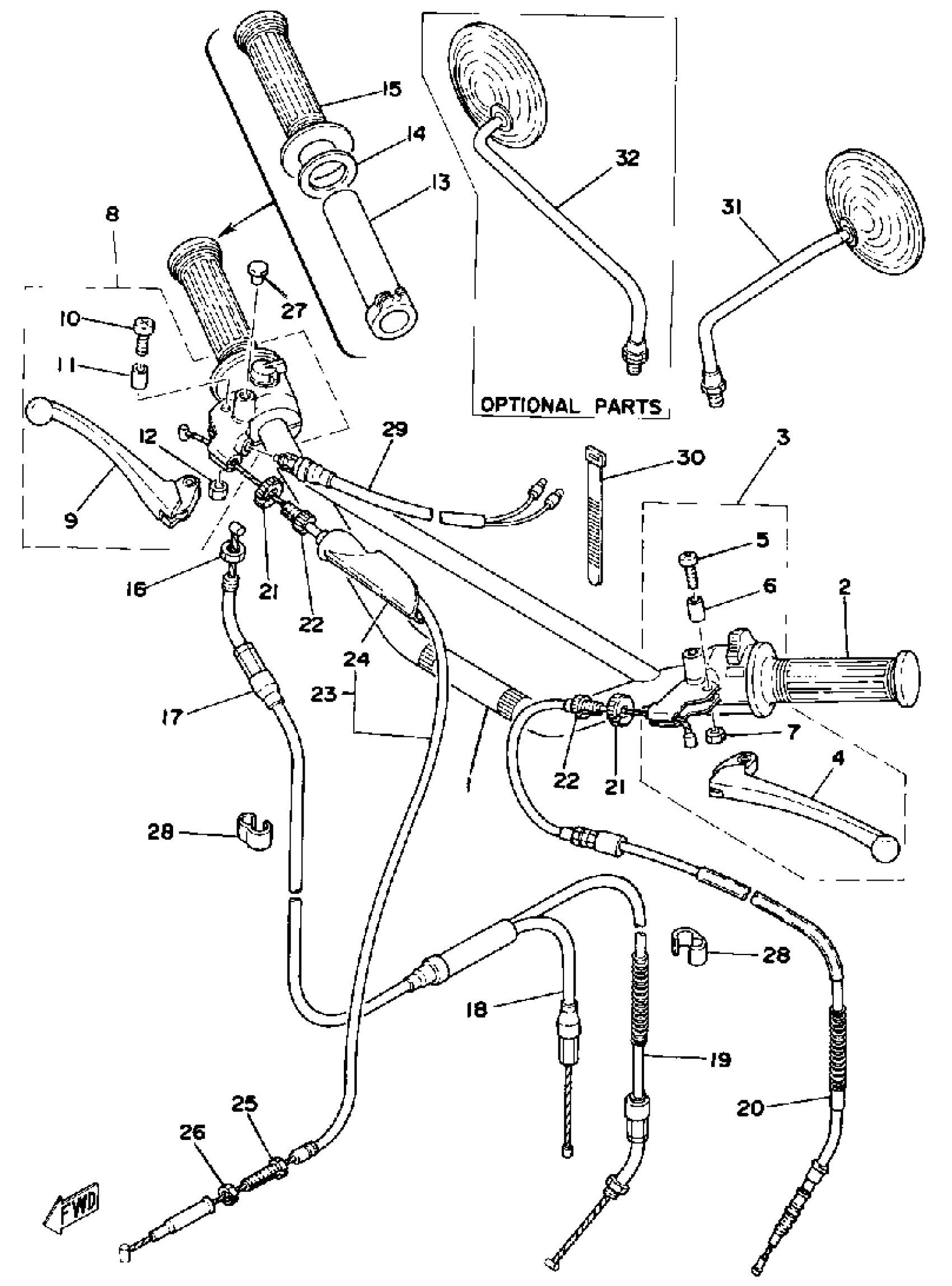

Find the part on the Handle Wire diagram for your 1977 Yamaha DT100D (DT100D), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1977 Yamaha DT100D (DT100D) Handle Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3M1-26111-01-00

1
Out of stock

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

1
Out of stock

3

LEVER HOLDER ASSEMBLY 1 (1T9-82910-00)

1T9-82910-01-00

1
Out of stock

4

LEVER (L.H)

137-83912-02-38

—

$23.55

In stock

5

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

6

. COLLAR, LEVER 1

137-83913-01-00

1
Out of stock

7

NUT, U

95617-05100-00

1

$6.68

In stock

8

LEVER HOLDER ASSEMBLY 2

1T9-82920-X0-00

1
Out of stock

8

LEVER HOLDER ASSEMBLY R

1T9-W8292-30-00

1
Out of stock

9

LEVER (R.H)

2N3-83922-00-00

1

$26.28

In stock

10

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

11

. COLLAR, LEVER 1

137-83913-01-00

1
Out of stock

12

NUT, U

95617-05100-00

1

$6.68

In stock

12

. UNAVAILABLE IN PRICE BOOK

95601-05600-00

1
Out of stock

13

TUBE, GUIDE

1V1-26243-00-00

1

$14.08

In stock

14

RING, LEAF

150-26249-00-00

1
Out of stock

15

GRIP (R.H)

1A0-26242-01-00

—
Out of stock

16

NUT,HEXAGON

90170-10044-00

1
Out of stock

17

CABLE, THROTTLE 1

2F5-26311-00-00

1
Out of stock

18

CABLE, THROTTLE 2

1T9-26312-00-00

1
Out of stock

19

CABLE,PUMP

1T9-26321-10-00

1
Out of stock

20

CABLE, CLUTCH

1T9-26335-00-00

1
Out of stock

21

NUT

90179-08030-00

—

$3.78

In stock

22

BOLT

90123-08002-00

—

$8.93

In stock

23

CABLE, BRAKE

3M1-26341-00-00

1
Out of stock

24

COVER, LEVER

498-26372-00-00

—

$26.34

In stock

25

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

26

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

27

PLUG (17J)

90338-07124-00

—

$8.55

In stock

28

CLIP (1E6)

90468-15064-00

—
Out of stock

29

FRONT STOP SWITCH ASSY

395-83980-09-00

—

$34.84

In stock

30

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

31

3MIRROR ASSEMBLY LH

266-26290-10-00

1
Out of stock

32

MIRROR ASSEMBLY RH

395-26290-00-00

1
Out of stock
