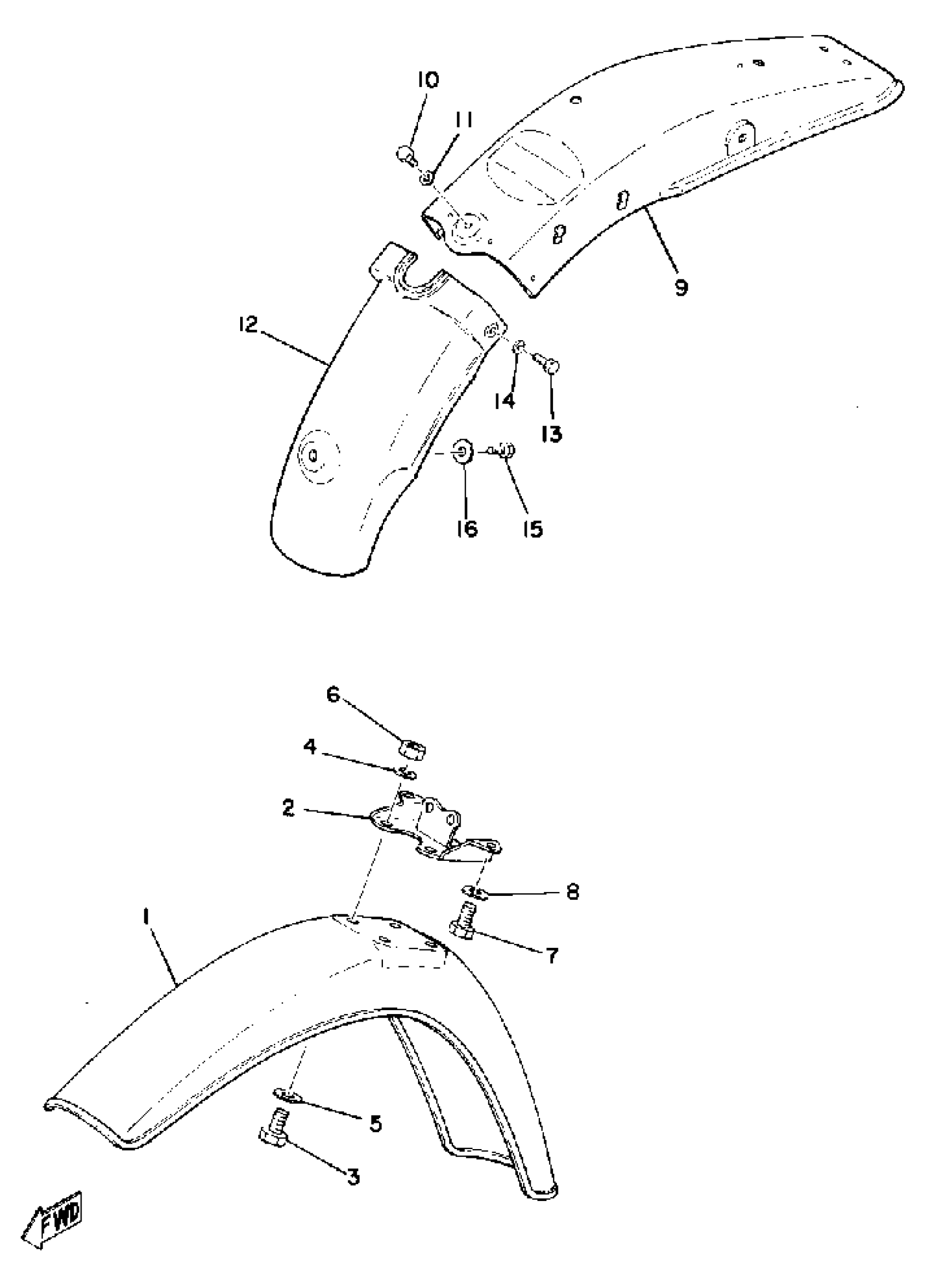

Yamaha DT100D (DT100D) 1977 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(1T9-21511-00-00)

Unavailable

2

STAY, FENDER 1

1T9-21513-00-00

Unavailable

3

BOLT(8CP)

97017-06014-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

BOLT(3JP)

97017-06010-00

$3.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

FENDER, REAR

1T9-21611-00-26

Unavailable

10

BOLT(8CP)

97017-06014-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

FLAP

1T9-21621-00-00

Unavailable

13

BOLT (661)

97013-06012-00

$5.60

14

WASHER, PLAIN (646)

92990-06600-00

$2.80

15

BOLT (661)

97013-06012-00

$5.60

16

WASHER, PLATE

90201-06380-00

$0.60
