Description

Price

1

FLYWHL MAGNETO ASSEMBLY

(1T9-81300-20-00)

Unavailable

2

BASE, MAGNETO

437-81309-20-00

Unavailable

3

ROTOR ASSEMBLY

(437-81350-20-00)

Unavailable

4

. COIL, SOURCE

2U7-81312-21-00

Unavailable

5

. COIL, LIGHTING 1

1T9-81313-20-00

Unavailable

6

SCREW, PAN HEAD

98517-04025-00

Unavailable

7

CONTACT BREAKER ASSY

2A6-81321-20-00

$49.99

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

CONDENSER

1K8-81325-20-00

$63.99

10

. LUBRICATOR

116-81331-20-00

Unavailable

11

SCREW, PAN HEAD

110-81346-21-00

$5.49

12

LEAD WIRE ASSEMBLY

(437-81315-20-00)

Unavailable

13

CLAMP, LEAD

104-81328-20-00

$6.99

14

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

15

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

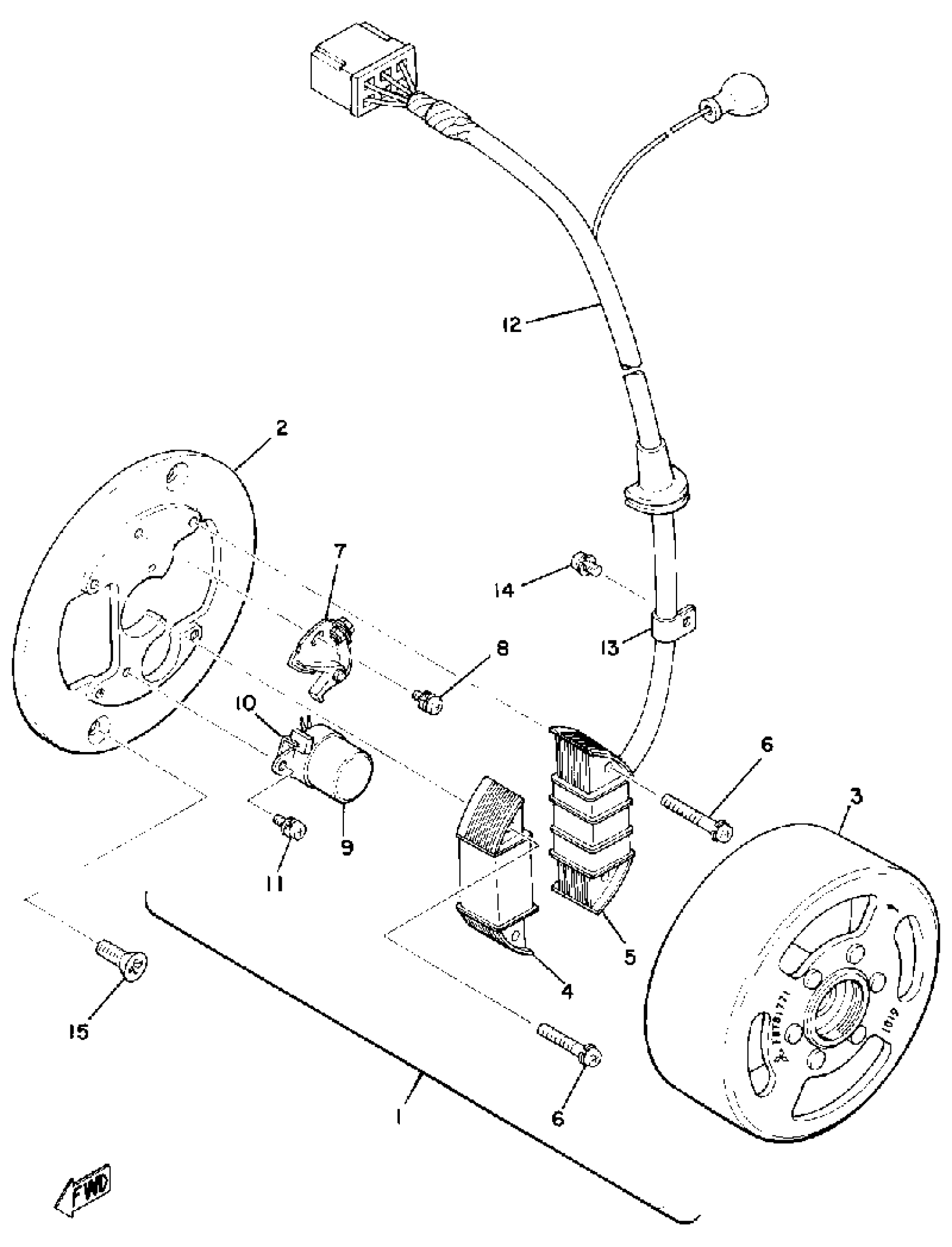

Yamaha DT100D (DT100D) 1977 FLYWHEEL MAGNETO Diagram

FLYWHL MAGNETO ASSEMBLY

BASE, MAGNETO

ROTOR ASSEMBLY

. COIL, SOURCE

. COIL, LIGHTING 1

SCREW, PAN HEAD

CONTACT BREAKER ASSY

SCREW, PAN HEAD

CONDENSER

. LUBRICATOR

SCREW, PAN HEAD

LEAD WIRE ASSEMBLY

CLAMP, LEAD

SCREW, PAN HEAD(3XP)

SCREW, OVAL HEAD (92701-06012)
