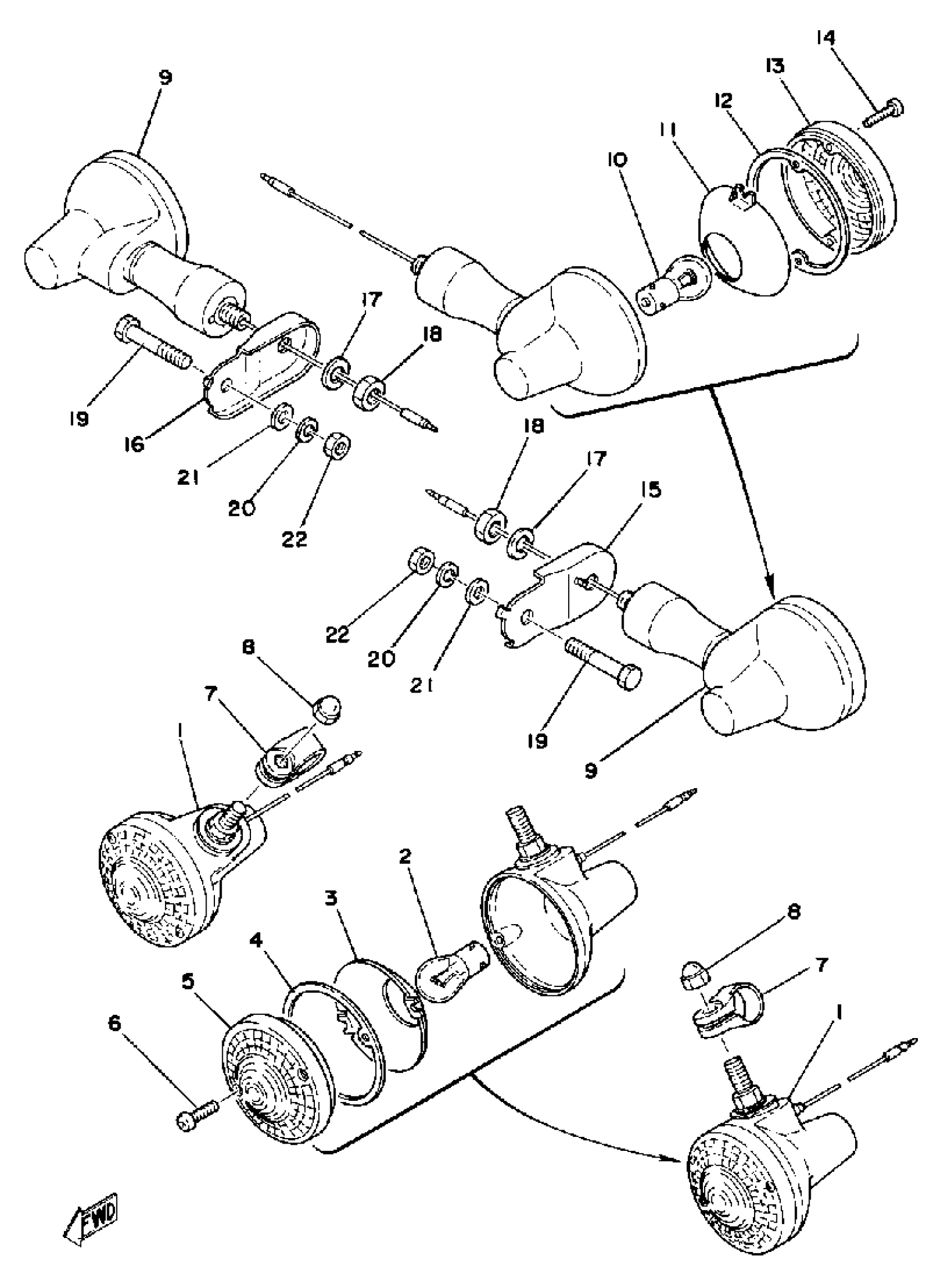

Yamaha DT100D (DT100D) 1977 FLASHER LAMP Diagram

#

Description
Price

1

FRONT FLASHER LIGHT ASSY 1

1M1-83310-60-00

Unavailable

2

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

3

. REFLECTOR

1M1-83309-60-00

Unavailable

4

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

5

LENS, FLASHER

341-83312-70-00

Unavailable

6

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

7

STAY, FLASHER

1M1-83318-00-00

$8.99

8

NUT, CROWN

95303-08800-00

$9.49

9

REAR FLASHER LAMP ASSY

1T9-83330-60-00

Unavailable

10

BULB,FLASHER(6V18W)

115-83311-60-00

Unavailable

11

. REFLECTOR

1M1-83309-60-00

Unavailable

12

. GASKET, FLASHER LENS

1M1-83313-60-00

Unavailable

13

LENS, FLASHER

341-83312-70-00

Unavailable

14

YBS83-320 SCREW,PANH.TAPPING

97780-30120-00

Unavailable

15

. STAY, FLASHER

1T9-83368-01-00

Unavailable

16

STAY, FLASHER

1T9-83369-01-00

Unavailable

17

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

18

NUT(3BM)

95314-10600-00

Unavailable

19

BOLT

97013-08045-00

Unavailable

20

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

21

.. WASHER, PLATE

92990-08600-00

Unavailable

22

NUT(6L2)

95333-08600-00

Unavailable
