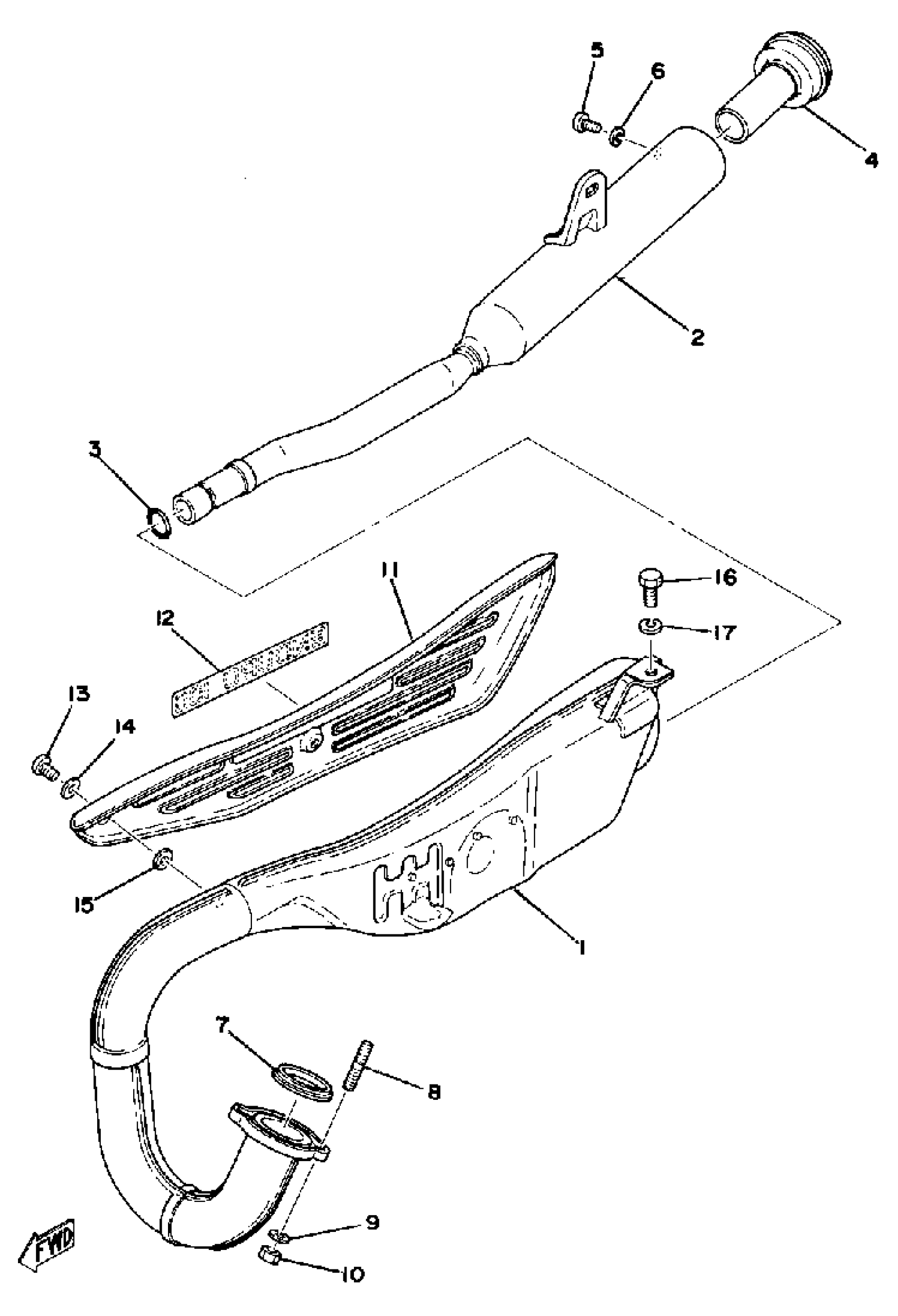

Yamaha DT100D (DT100D) 1977 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASY L

3UL-14610-01-00

Unavailable

2

SILENCER, EXHAUST

1T9-14753-00-00

Unavailable

3

O-RING (538)

93210-16290-00

Unavailable

4

PIPE, OUTLET

438-14752-00-00

Unavailable

5

SCREW PAN HEAD

98580-06010-00

$8.49

6

WASHER, SPRING

92995-06100-00

Unavailable

7

GASKET, EXHAUST PIPE

3PA-14613-10-00

$15.49

8

BOLT STUD 306111790000

90116-06016-00

$4.14

9

WASHER, SPRING

92995-06100-00

Unavailable

10

NUT, HEXAGON

95380-06600-00

Unavailable

11

PROTECTOR, MUFF 1

(1T9-14718-00-26)

Unavailable

12

EMBLEM

(1T9-21737-00-00)

Unavailable

13

SCREW, BIND(1JK)

98980-06010-00

$9.49

14

WASHER, PLATE(3MT)

90202-05188-00

$8.49

15

WASHER, PLATE(3MB)

90202-05187-00

$1.38

16

BOLT(JA9)

90101-08691-00

Unavailable

17

WASHER, PLAIN

92990-08200-00

Unavailable
