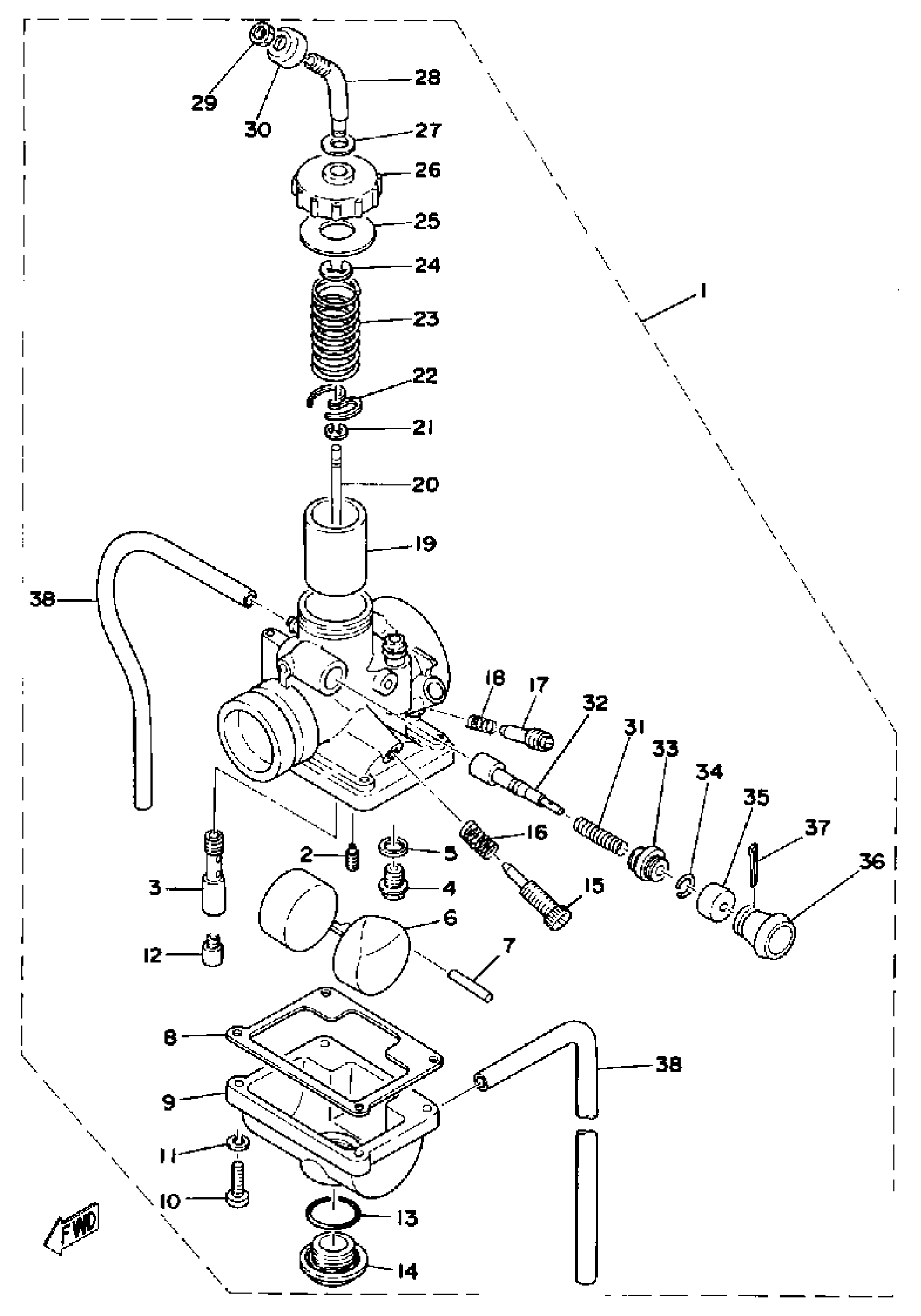

Yamaha DT100D (DT100D) 1977 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(1T9-14101-60-00)

Unavailable

2

JET, PILOT (# 17.5)

260-14142-17-00

Unavailable

3

NOZZLE, MAIN

(558-14141-34-00)

Unavailable

4

VALVE SEAT ASSY

353-14190-15-00

Unavailable

5

WASHER, VALVE SEAT

127-14195-00-00

$7.99

6

FLOAT

4NR-14185-00-00

$41.99

7

PIN, FLOAT

127-14186-00-00

$6.65

8

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

9

. BODY, FLOAT CHMBR 1

539-14181-08-00

Unavailable

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

. JET, MAIN #120

137-14143-24-00

Unavailable

12

JET, MAIN #130

137-14143-26-A0

$7.99

12

JET, MAIN #140

137-14143-28-A0

Unavailable

13

O-RING (541)

558-14147-00-00

$9.99

14

PLUG, SCREW

500-14115-00-00

Unavailable

15

. SCREW, THROTTLE

493-14122-00-00

Unavailable

16

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

17

AIR SCREW SET

22K-14104-00-00

Unavailable

18

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

19

VALVE,THROTTLE 1

53V-14112-20-00

Unavailable

20

NEEDLE

166-14116-13-00

Unavailable

21

CLIP

3FA-14137-00-00

Unavailable

22

. SEAT, SPRING

137-14136-00-00

Unavailable

23

SPRING, THROTTLE VALVE

3X3-14131-00-00

Unavailable

24

CLIP

363-14137-00-00

Unavailable

25

GASKET

193-14126-00-00

Unavailable

26

. TOP, MIXING CHAMBER

1T9-14158-00-00

Unavailable

27

GASKET

509-14198-00-00

Unavailable

28

CABLE ADJUST SCREW SET

10X-14106-00-00

Unavailable

29

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

30

CAP

3X3-14169-00-00

Unavailable

31

SPRING, PLUNGER

156-14135-00-00

Unavailable

32

. PLUNGER, STARTER

304-14171-00-00

Unavailable

33

CAP, PLUNGER

152-14174-00-00

Unavailable

34

. CLIP, PLUNGER

152-14138-00-00

Unavailable

35

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

36

HOLDER

304-14261-00-00

Unavailable

37

PIN, COTTER

91490-16020-00

Unavailable

38

PIPE

23F-14197-00-00

Unavailable
