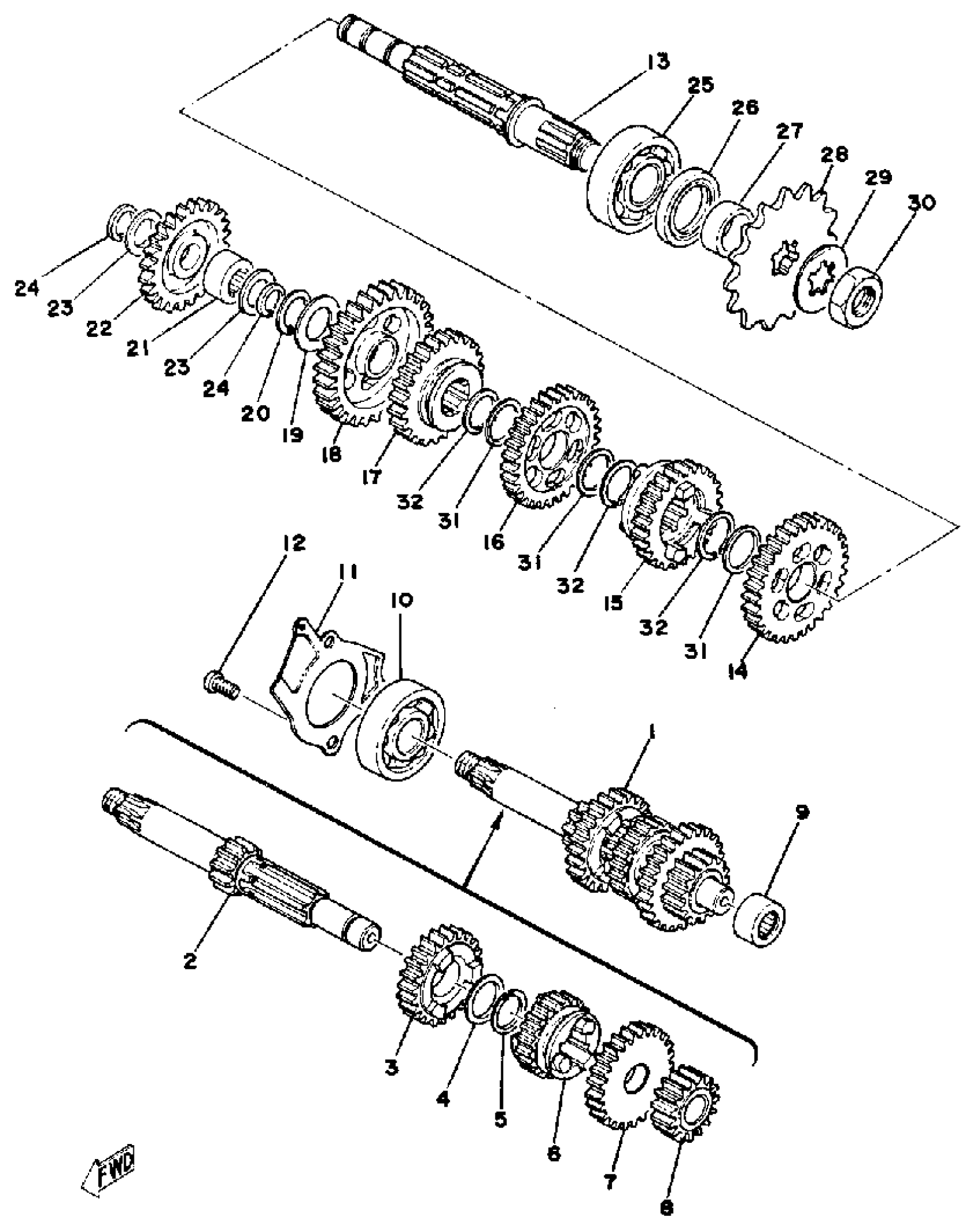

Yamaha DT100C (DT100C) 1976 TRANSMISSION Diagram

MAIN AXLE

(558-17410-00-00)

Unavailable

. AXLE, MAIN (11T)

558-17411-00-00

Unavailable

GEAR, 4TH PINION

(437-17141-00-00)

Unavailable

WASHER PLATE 132172160000

90201-20266-00

$9.49

CIRCLIP (525)

93410-20038-00

$3.76

. GEAR, 3RD PINION (19T)

427-17131-00-00

Unavailable

GEAR, 5TH PINION (25T)

437-17151-00-00

Unavailable

GEAR, 2ND PINION

437-17121-02-00

Unavailable

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

$36.99

BEARING(4HM)

93306-30317-00

$39.99

PLATE, COVER

1G8-17471-00-00

Unavailable

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

AXLE, DRIVE

558-17421-00-00

Unavailable

GEAR, 2ND WHEEL

427-17221-00-00

$45.99

GEAR, 5TH WHEEL (20T)

437-17251-00-00

Unavailable

GEAR, 3RD WHEEL

427-17231-00-00

Unavailable

GEAR,4TH WHEEL

4EG-17241-00-00

Unavailable

. GEAR, 1ST WHEEL

248-17211-00-00

Unavailable

SHIM, DRIVE AXLE

164-17427-00-06

Unavailable

CIRCLIP

93440-15012-00

Unavailable

BEARING, CYLINDRICAL(2TV)

93311-31567-00

Unavailable

GEAR, KICK IDLE

525-15651-00-00

Unavailable

SHIM, MAIN AXLE 0.5MM

137-17417-00-05

Unavailable

CIRCLIP

93440-15012-00

Unavailable

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

COLLAR (525)

90387-20491-00

Unavailable

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

WASHER PLATE 132172160000

90201-20266-00

$9.49

CIRCLIP (525)

93410-20038-00

$3.76
