Description

Price

1

SINGLE SEAT ASSEMBLY

(558-24710-00-00)

Unavailable

2

COVER, SINGLE SEAT

(558-24711-00-00)

Unavailable

3

HINGE, SEAT

248-24726-00-33

Unavailable

4

HINGE, SEAT

(437-24726-00-00)

Unavailable

5

PIN, CLEVIS

91701-05055-00

$7.49

6

CLIP (156-83525-00)

90468-10050-00

$3.05

7

BRACKET, SEAT

371-24728-02-00

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT (661)

97013-06012-00

$5.60

10

SEAT LOCK ASSEMBLY

(558-24705-00-00)

Unavailable

11

SCREW, FLAT

98707-06012-00

$8.49

12

DAMPER, SEAT

214-24724-00-00

$7.99

13

STOPPER

(437-24768-00-00)

Unavailable

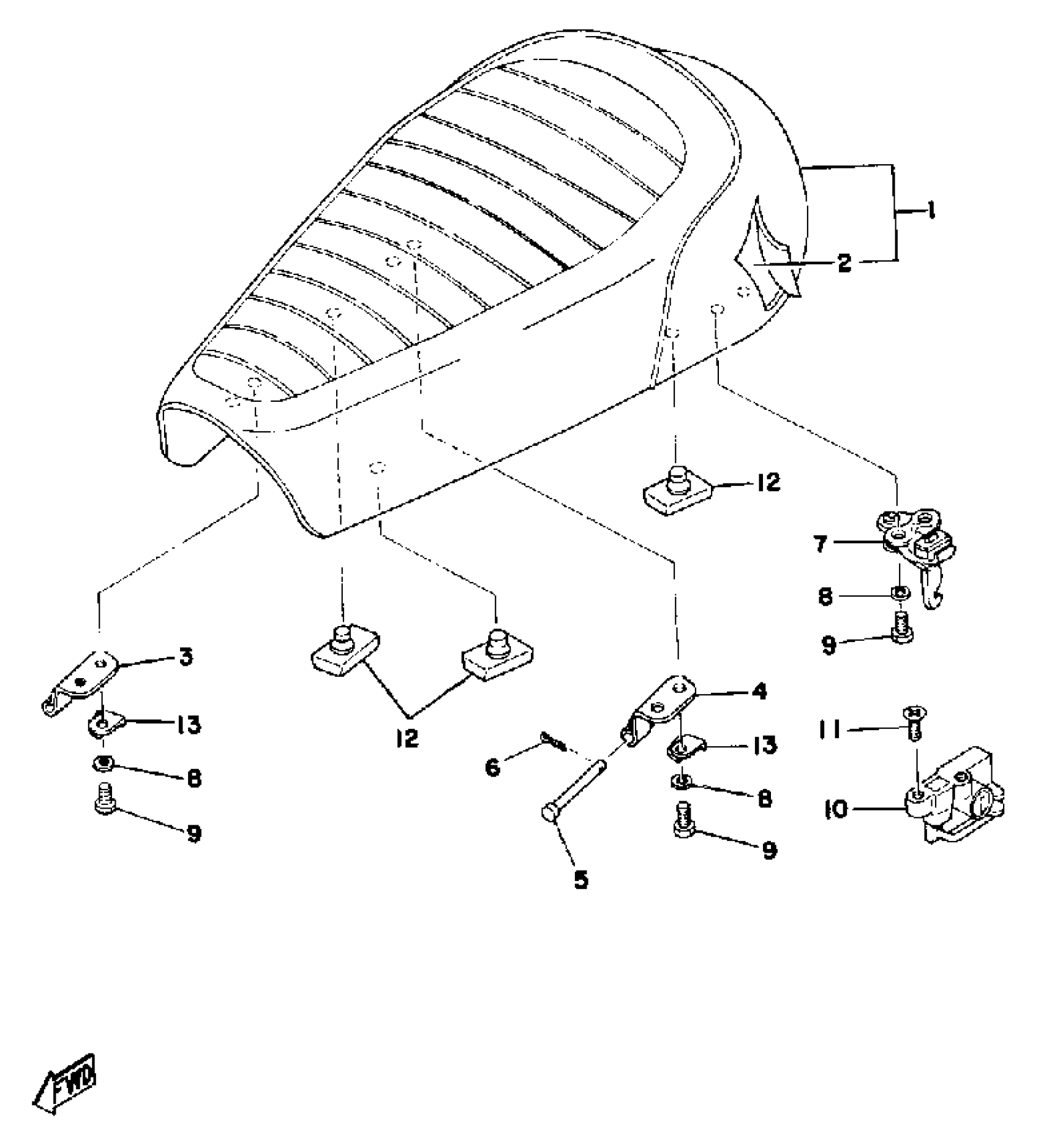

Yamaha DT100C (DT100C) 1976 SEAT Diagram

SINGLE SEAT ASSEMBLY

COVER, SINGLE SEAT

HINGE, SEAT

HINGE, SEAT

PIN, CLEVIS

CLIP (156-83525-00)

BRACKET, SEAT

WASHER, SPRING

BOLT (661)

SEAT LOCK ASSEMBLY

SCREW, FLAT

DAMPER, SEAT

STOPPER
