Description

Price

1

FENDER, FRONT

403-21511-01-20

Unavailable

2

BOLT(3RV)

97014-06035-00

$2.75

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR 1

(558-21544-00-00)

Unavailable

7

FENDER, REAR

(437-21610-00-20)

Unavailable

8

BOLT

97013-08045-00

Unavailable

9

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

10

DAMPER, REAR

168-21639-00-00

$10.99

11

COLLAR (437)

90387-08258-00

$10.49

12

. NUT

95380-08700-00

Unavailable

13

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

14

NUT, CROWN

95303-08800-00

$9.49

15

BOLT

97013-08035-00

$5.60

16

GUARD, MUD

(558-21620-01-00)

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06380-00

$0.60

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

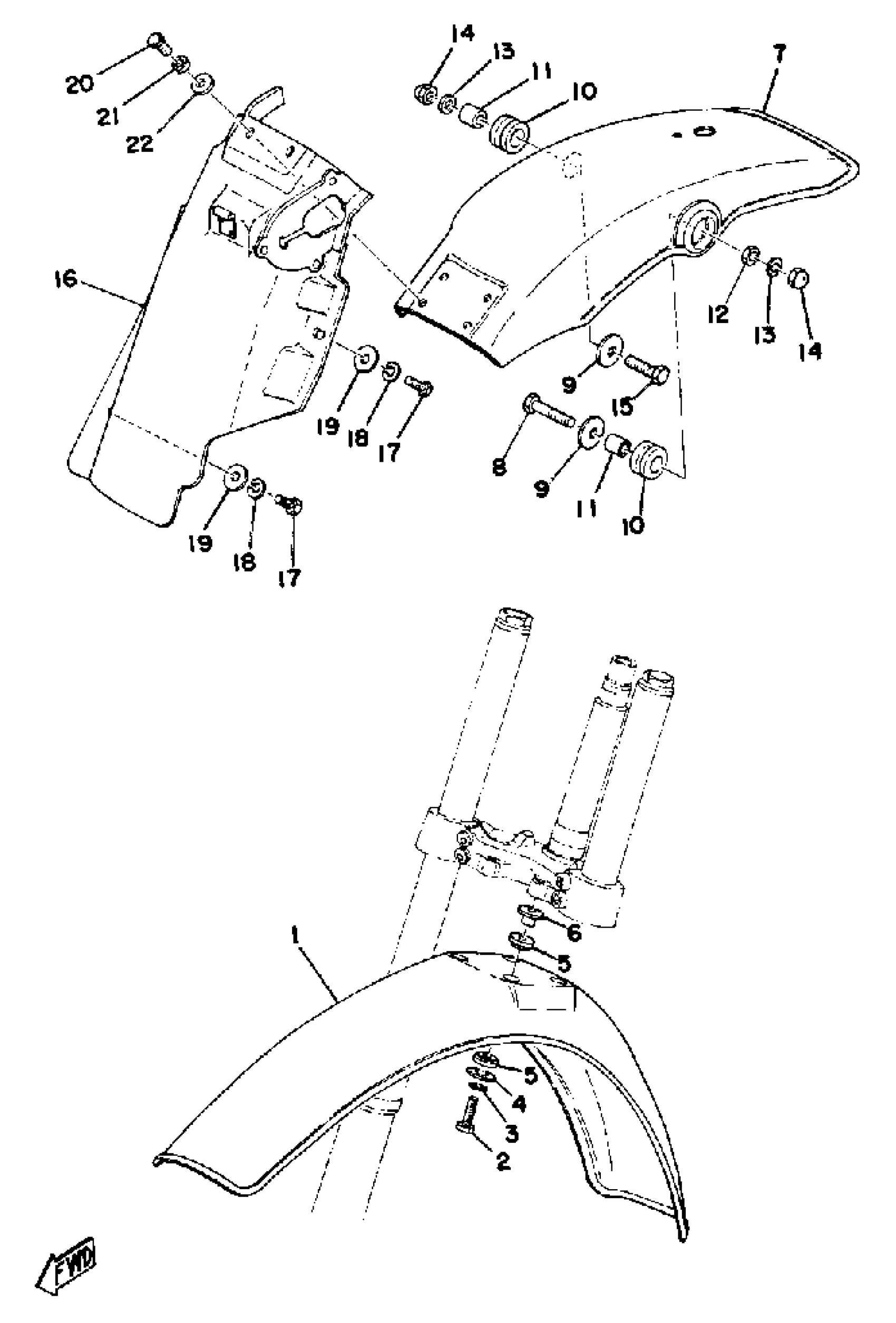

Yamaha DT100C (DT100C) 1976 FRONT FENDER-REAR FENDER Diagram

FENDER, FRONT

BOLT(3RV)

WASHER, SPRING

WASHER, PLATE

DAMPER, FENDER

COLLAR 1

FENDER, REAR

BOLT

WASHER, PLATE(8AT)

DAMPER, REAR

COLLAR (437)

. NUT

YBS67-8 WASHER, SPRING

NUT, CROWN

BOLT

GUARD, MUD

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE

BOLT, HEXAGON DEEP RECESS

WASHER, SPRING

WASHER, PLATE (4H7)
