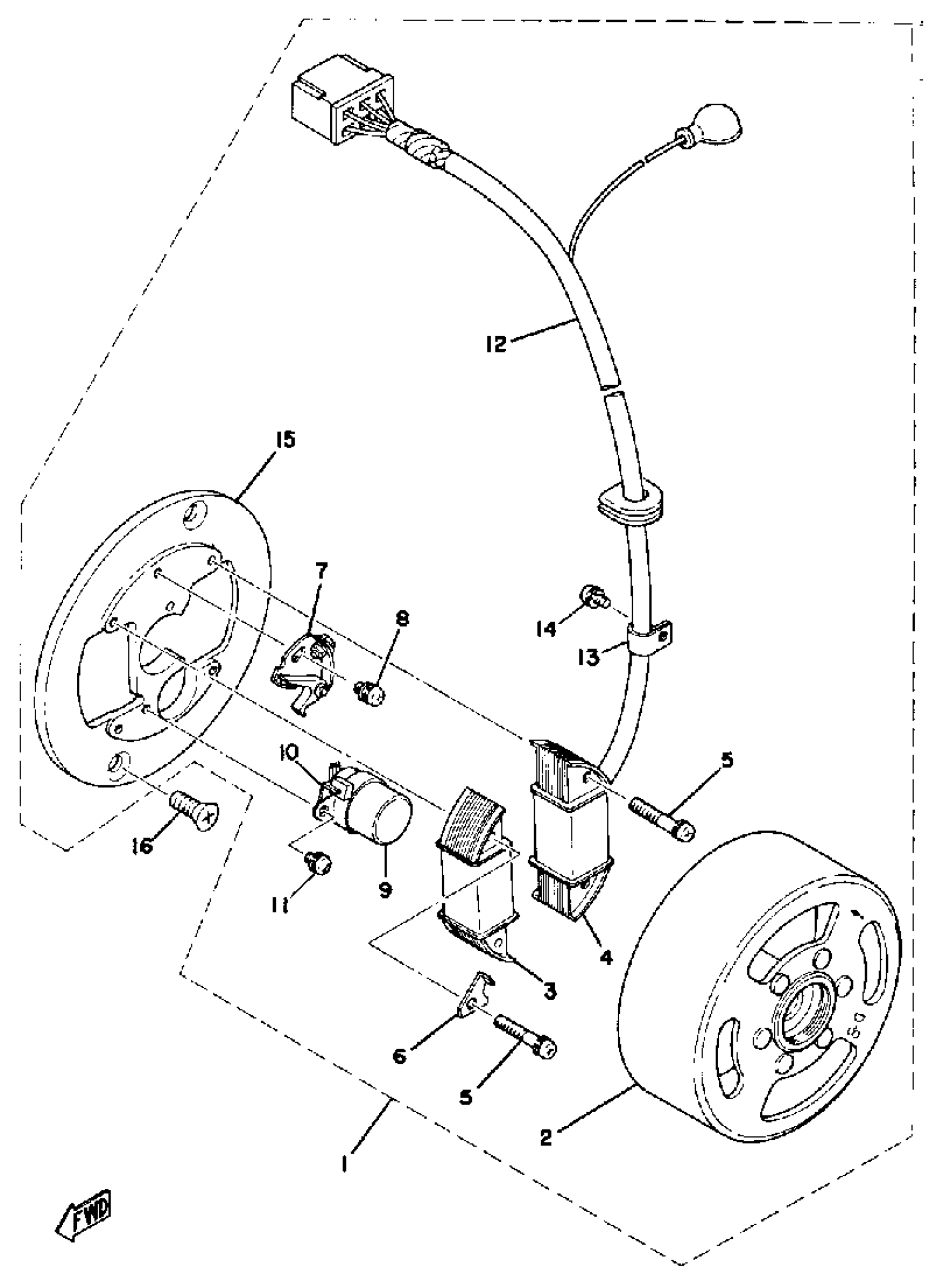

Yamaha DT100C (DT100C) 1976 FLYWHEEL MAGNETO Diagram

#

Description

Price

1

FLYWHL MAGNETO ASSEMBLY

(594-81300-20-00)

Unavailable

2

. COIL, SOURCE

2U7-81312-21-00

Unavailable

3

. COIL, SOURCE

2U7-81312-21-00

Unavailable

4

. COIL, LIGHTING 1

594-81313-20-00

Unavailable

5

SCREW, PAN HEAD

98517-04025-00

Unavailable

6

. PLATE, TIMING

296-81332-20-00

Unavailable

7

CONTACT BREAKER ASSY

2A6-81321-20-00

$49.99

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

CONDENSER

1K8-81325-20-00

$63.99

10

. LUBRICATOR

116-81331-20-00

Unavailable

11

SCREW, PAN HEAD

110-81346-21-00

$5.49

12

LEAD WIRE ASSEMBLY

(437-81315-20-00)

Unavailable

13

. CLAMP

109-81328-11-00

Unavailable

14

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

15

BASE, MAGNETO

437-81309-20-00

Unavailable

16

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable
