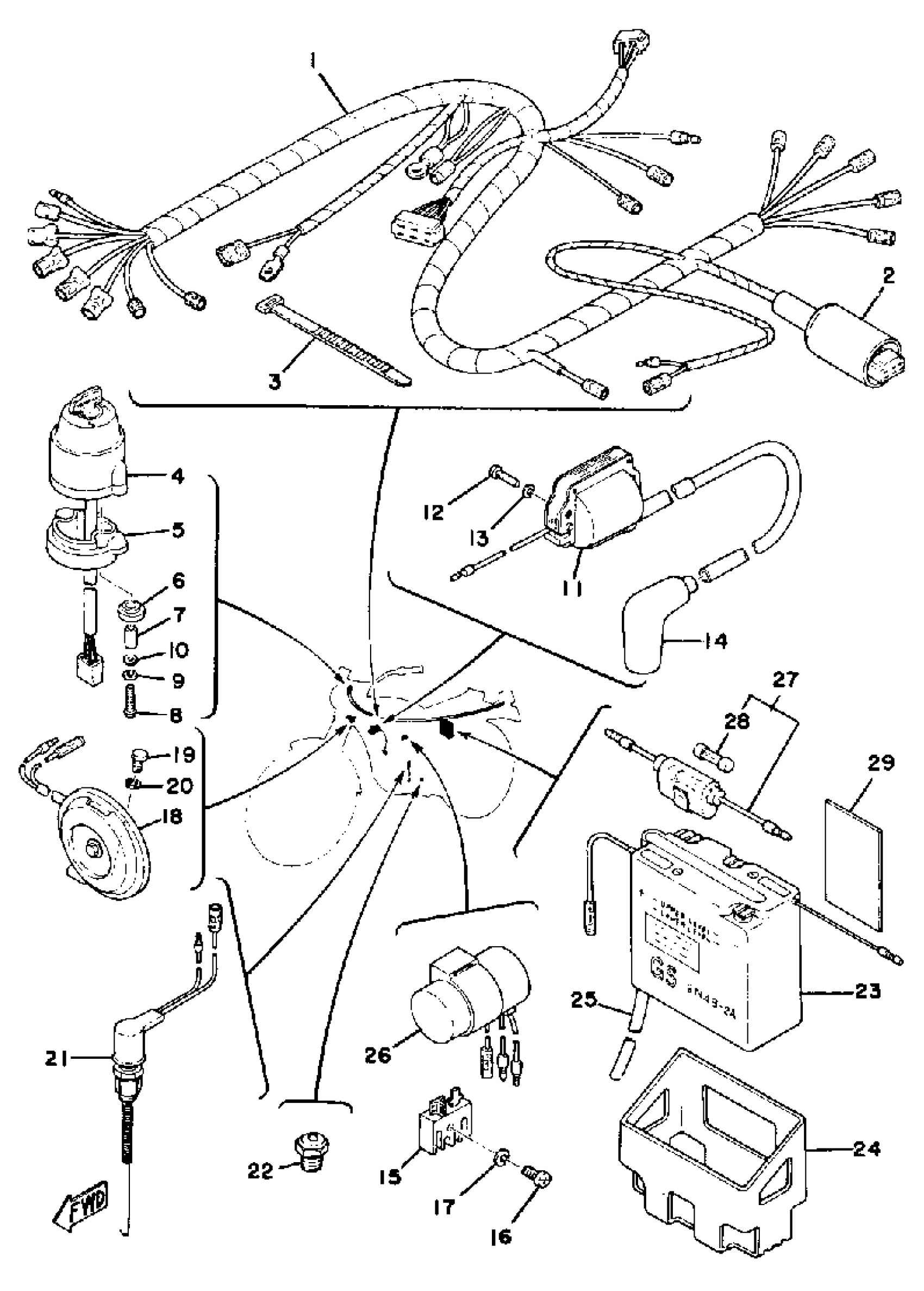

Yamaha DT100C (DT100C) 1976 ELECTRICAL Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

(558-82590-20-00)

Unavailable

2

COVER, CONNECTER

(307-82599-01-00)

Unavailable

3

BAND, SWITCH CORD

437-83936-01-00

$7.99

4

MAIN SWITCH ASSEMBLY

443-82508-21-00

Unavailable

5

. DAMPER, MAIN SWITCH

437-82555-00-00

Unavailable

6

DAMPER, STOPPER

1M1-82556-00-00

Unavailable

7

COLLAR, MAIN SWITCH

437-82516-00-00

Unavailable

8

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

. WASHER, PLAIN

92990-05200-00

Unavailable

11

IGNITION COIL ASSEMBLY

1Y8-82310-40-00

Unavailable

12

SCREW PAN HEAD

98580-06020-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

PLUG CAP ASSY

56J-82370-00-00

$64.99

15

RECTIFIER ASSY

353-81970-M2-00

Unavailable

16

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

18

HORN

437-83371-13-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

STOP SWITCH ASSEMBLY

437-82530-02-00

Unavailable

22

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

23

6N4B2A3 YUASA BATTERY

6N4-B2A3Y-00-00

Unavailable

24

SEAT, BATTERY

(558-82122-00-00)

Unavailable

25

HOSE

90445-08286-00

Unavailable

26

FLASHER RELAY ASSEMBLY

438-83350-62-00

Unavailable

27

FUSE HOLDER ASSY

55K-82150-02-00

Unavailable

28

FUSE

1A0-82151-00-00

Unavailable

29

LABEL, BATTERY

40A-82141-G0-00

Unavailable
