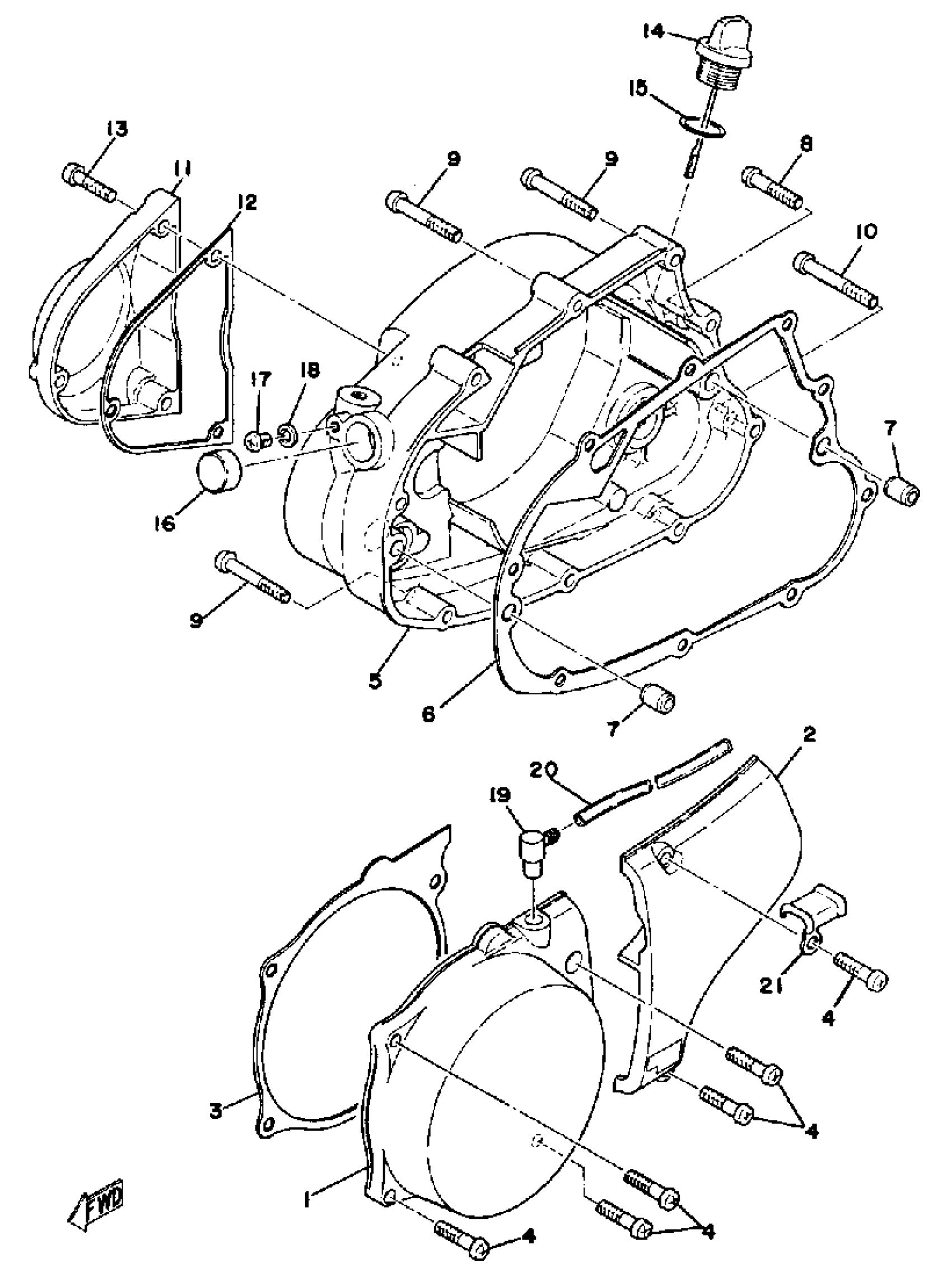

Yamaha DT100C (DT100C) 1976 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

437-15411-01-00

Unavailable

2

COVER, CRANKCASE R

437-15421-00-00

Unavailable

3

GASKET 1

401-15455-01-00

Unavailable

4

SCREW PAN HEAD

98580-06020-00

$8.49

5

COVER, CRANKCASE 3

(437-15431-00-00)

Unavailable

6

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

$20.99

7

PIN, DOWEL(3VD)

99530-10114-00

$2.55

8

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

9

SCREW PAN HEAD

98580-06040-00

$8.49

10

SCREW PAN HEAD

98580-06545-00

$5.60

11

COVER, OIL PUMP

437-15416-01-00

Unavailable

12

GASKET, OIL PUMP COVER 1

3UL-15456-01-00

$11.99

13

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

14

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

15

O-RING (646)

93210-19123-00

Unavailable

16

PLUG 363174810000

90338-20023-00

Unavailable

17

SCREW PAN HEAD

98580-06010-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

BREATHER

583-15371-00-00

Unavailable

20

HOSE (L200)

90445-07176-00

Unavailable

21

CLAMP

90461-10016-00

Unavailable
