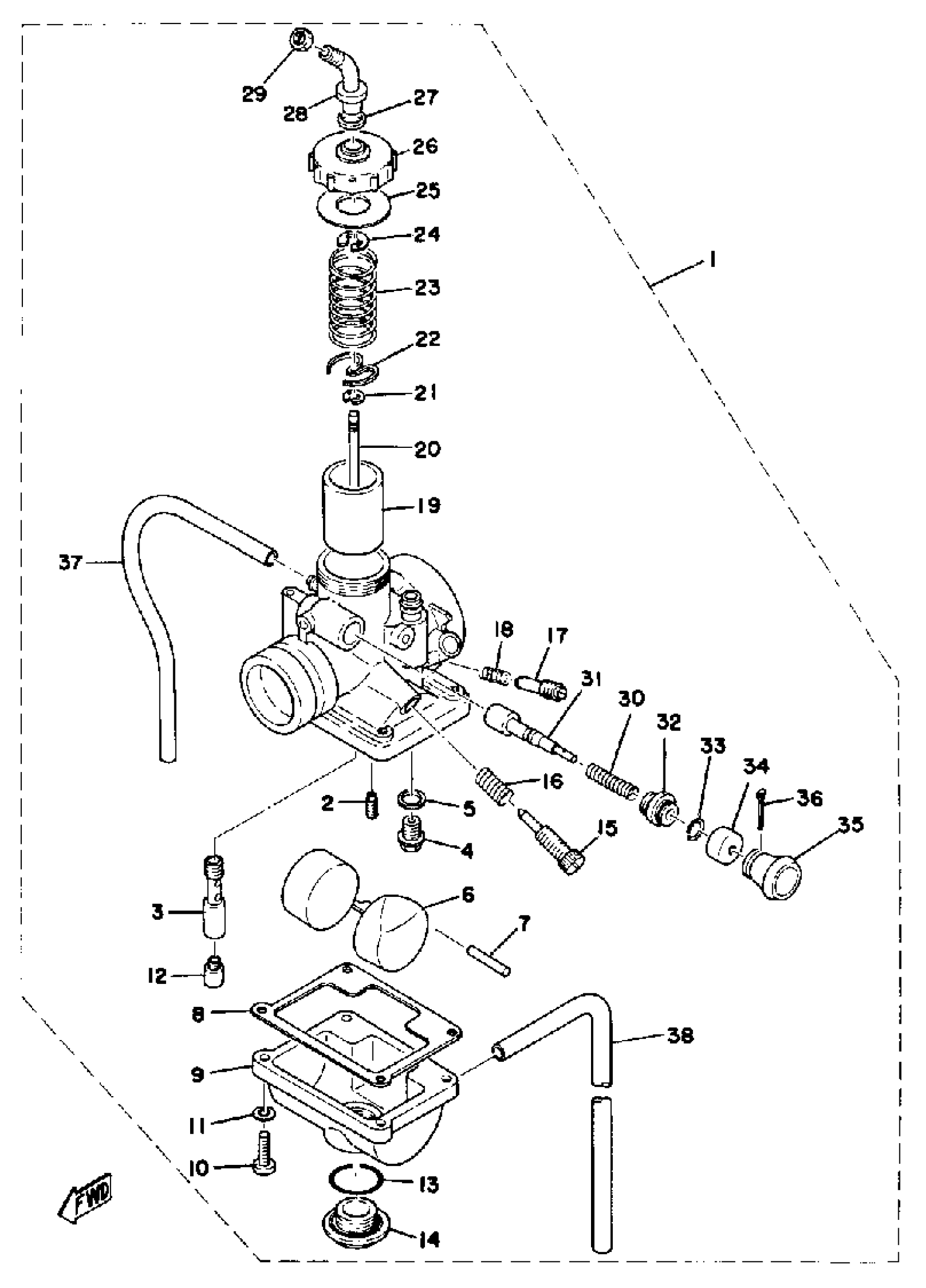

Yamaha DT100C (DT100C) 1976 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(558-14101-60-00)

Unavailable

2

JET, PILOT (# 22.5)

260-14142-22-A0

$9.99

3

. NOZZLE, MAIN

558-14141-30-00

Unavailable

4

VALVE SEAT ASSY

353-14190-15-00

Unavailable

5

WASHER, VALVE SEAT

127-14195-00-00

$7.99

6

FLOAT

4NR-14185-00-00

$41.99

7

PIN, FLOAT

127-14186-00-00

$6.65

8

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

9

. BODY, FLOAT CHMBR 1

539-14181-08-00

Unavailable

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

12

JET, MAIN #150

137-14143-30-00

$7.99

12

JET, MAIN #160

137-14143-32-00

$9.99

12

JET, MAIN #170

137-14143-34-00

$7.99

13

O-RING (541)

558-14147-00-00

$9.99

14

PLUG, SCREW

500-14115-00-00

Unavailable

15

. SCREW, THROTTLE

493-14122-00-00

Unavailable

16

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

17

AIR SCREW SET

22K-14104-00-00

Unavailable

18

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

19

VALVE,THROTTLE 1

53V-14112-20-00

Unavailable

20

NEEDLE

166-14116-13-00

Unavailable

21

CLIP

3FA-14137-00-00

Unavailable

22

. SEAT, SPRING

137-14136-00-00

Unavailable

23

SPRING, THROTTLE VALVE

3X3-14131-00-00

Unavailable

24

CLIP

363-14137-00-00

Unavailable

25

GASKET

193-14126-00-00

Unavailable

26

TOP, MIXING CHAMBER

(558-14158-00-00)

Unavailable

27

GASKET

363-14198-00-00

Unavailable

28

. GUIDE, CABLE

363-14155-00-00

Unavailable

29

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

30

SPRING, PLUNGER

156-14135-00-00

Unavailable

31

. PLUNGER, STARTER

304-14171-00-00

Unavailable

32

CAP, PLUNGER

152-14174-00-00

Unavailable

33

. CLIP, PLUNGER

152-14138-00-00

Unavailable

34

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

35

HOLDER

304-14261-00-00

Unavailable

36

PIN, COTTER

91490-16020-00

Unavailable

37

PIPE, AIR VENT

183-14197-01-00

Unavailable

38

PIPE

23F-14197-00-00

Unavailable
