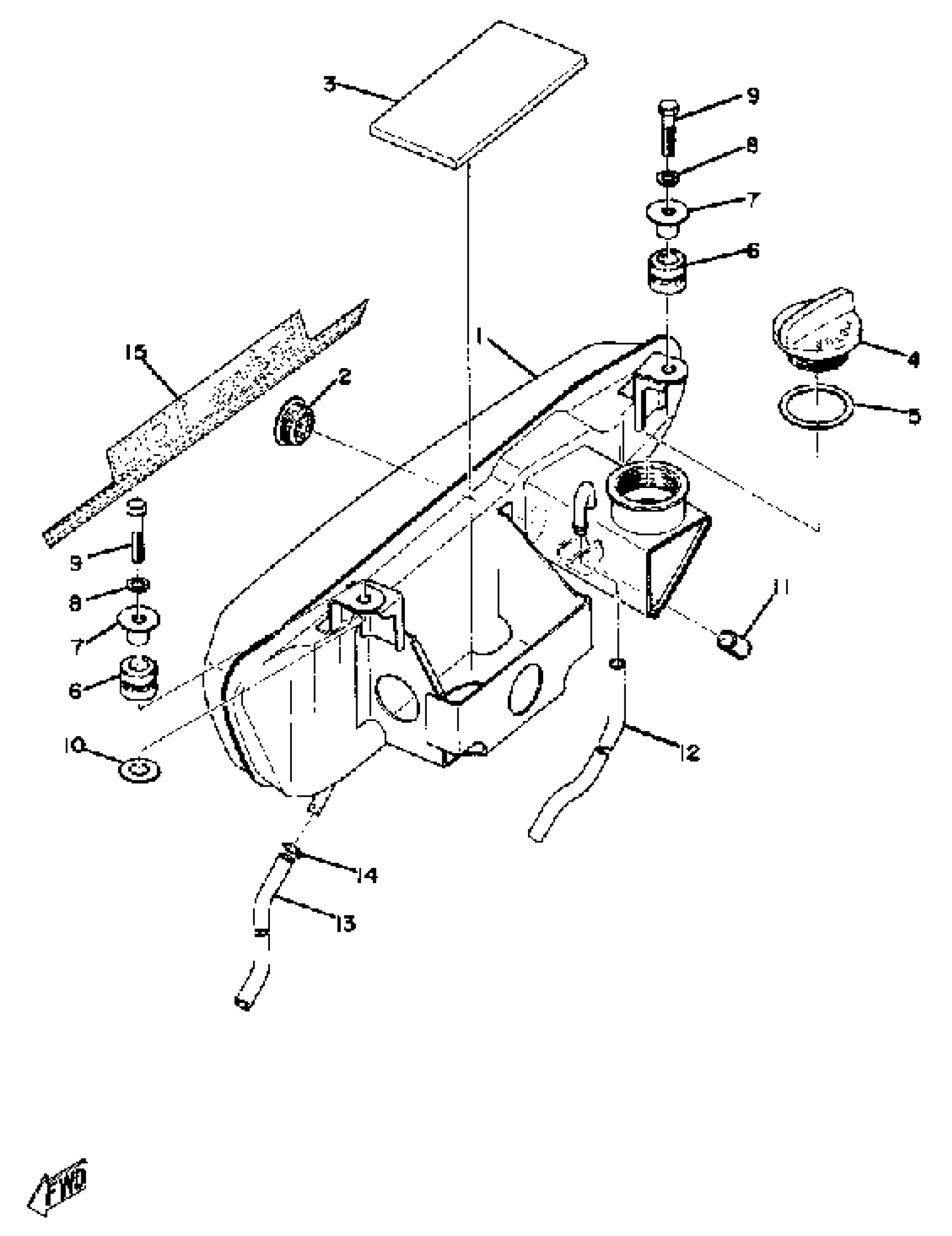

Yamaha DT100A (DT100A) 1974 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSEMBLY

(437-21705-00-N4)

Unavailable

1

OIL TANK ASSEMBLY

(437-21705-00-N6)

Unavailable

2

. GAUGE, LEVEL

360-21761-00-00

Unavailable

3

SEAL 1

(437-21732-00-00)

Unavailable

4

BODY, OIL TANK CAP

1A0-21771-00-00

$29.13

5

GASKET 214217720000

90430-29114-00

$5.79

6

GROMMET 839774310000

90480-14023-00

$4.34

7

COLLAR 437216330000

90387-07391-00

Unavailable

8

WASHER, SPRING

92995-06100-00

$2.95

9

SCREW, PAN HEAD

(90157-06029-00)

Unavailable

10

WASHER, PLATE

90201-06380-00

$0.54

11

DAMPER, OIL TANK

437-21779-00-00

Unavailable

12

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$15.77

13

HOSE (L420)

90445-092K1-00

$10.47

13

HOSE (L420)

90445-092K1-00

$10.47

14

CLIP 101235600

90467-08003-00

Unavailable

15

EMBLEM 7

(437-21787-00-00)

Unavailable

15

EMBLEM 7

(437-21787-20-00)

Unavailable
