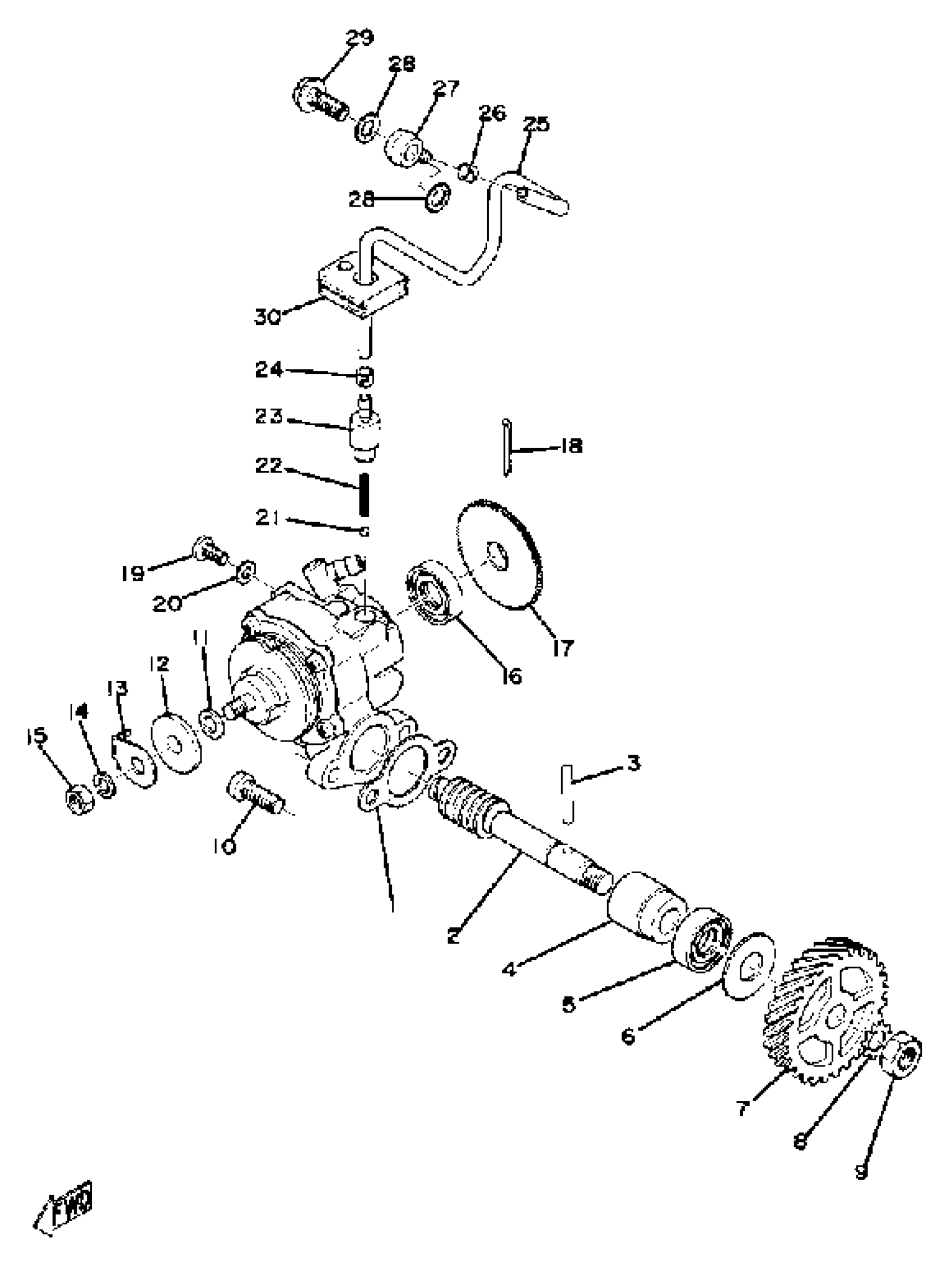

Yamaha DT100A (DT100A) 1974 OIL PUMP Diagram

#

Description
Price

1

GASKET, PUMP CASE

126-13116-01-00

$8.99

1

OIL PUMP ASSEMBLY (427-13101-02)

427-13101-02-00

Unavailable

2

SHAFT, WORM

275-13175-02-00

$24.99

3

PIN,DOWEL (137)

93603-22028-00

$3.76

4

METAL, WORM SHAFT OUTER

137-13176-00-00

Unavailable

5

OIL SEAL (10X22X7-137)

93101-10002-00

$8.49

6

WASHER, PLATE(52H)

90201-105J4-00

$9.49

7

GEAR, DRIVE

248-13178-00-00

Unavailable

8

WASHER (688)

92990-08400-00

Unavailable

9

. NUT

95380-08700-00

Unavailable

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

SHIM,PLUNGER

137-13137-00-10

$7.99

12

PLATE, ADJUSTING

137-13138-01-00

Unavailable

13

COVER, AJST PULLEY

(402-13146-00-00)

Unavailable

14

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

15

NUT, HEXAGON (663)

95380-05600-00

Unavailable

16

OIL SEAL (J10)

93101-10090-00

Unavailable

17

PLATE, STARTER

(137-13128-00-00)

Unavailable

18

. PIN, COTTER

91401-12018-00

Unavailable

19

SCREW, BIND

98980-04008-00

Unavailable

20

GASKET 137131870000

90430-04004-00

Unavailable

21

BALL

93505-32002-00

Unavailable

22

SPRING (278-13169-00)

90501-02018-00

Unavailable

23

NOZZLE

402-13552-00-00

Unavailable

24

CLIP (214-13164-00)

90468-02033-00

Unavailable

25

HOSE (L200)

90445-05N13-00

Unavailable

26

CLIP (214-13164-00)

90468-02033-00

Unavailable

27

BANJO, DELIVERY PIPE

214-13162-01-00

Unavailable

28

GASKET(3FP)

90430-06224-00

Unavailable

29

BOLT UNION 137131650000

90401-06001-00

Unavailable

30

HOLDER, OIL PIPE

248-13174-00-00

Unavailable
