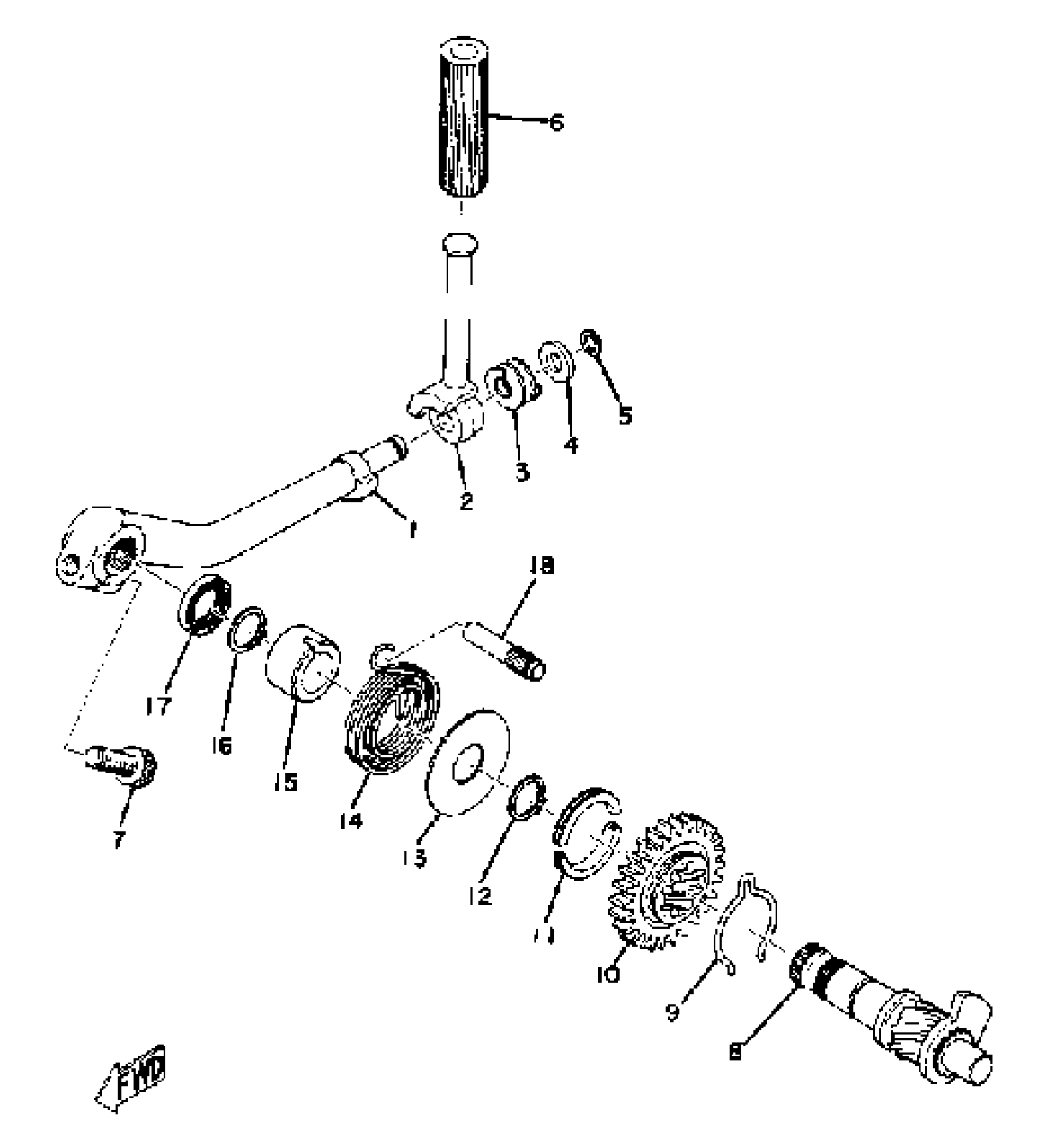

Yamaha DT100A (DT100A) 1974 KICK STARTER Diagram

#

Description
Price

1

KICK CRANK ASSEMBLY (437-15610-01-93)

1X0-15620-00-00

Unavailable

2

LEVER, KICK

(137-15612-01-00)

Unavailable

3

SPRING, COMPRESSION (5L1)

90504-18031-00

$9.49

4

WASHER,SPEC'L SHAPE

90209-10210-00

Unavailable

5

. CIRCLIP, OUTER

93440-10028-00

Unavailable

6

COVER, KICK LEVER

156-15618-01-00

$7.99

7

BOLT, SOCKET

91317-08025-00

$8.49

8

KICK AXLE ASY

403-15660-02-00

Unavailable

9

CLIP 315156870000

90468-26048-00

$8.49

10

GEAR, KICK

(305-15641-00-00)

Unavailable

11

HOLDER, KICK GEAR

248-15654-00-00

$8.99

12

CIRCLIP(4A6)

99009-30400-00

$8.49

13

COVER, SPRING

401-15676-00-00

$7.99

14

SPRING TORSION 401156650000

90508-26041-00

$7.49

15

SPACER

401-15666-00-00

Unavailable

16

CIRCLIP(1EY)

99009-17400-00

Unavailable

17

OIL SEAL (17X25X4-401)

93101-17062-00

Unavailable

18

STOPPER, KICK SPRING

257-15668-00-00

Unavailable
