1974 Yamaha DT100A (DT100A) Front Wheel Diagram

← All diagrams

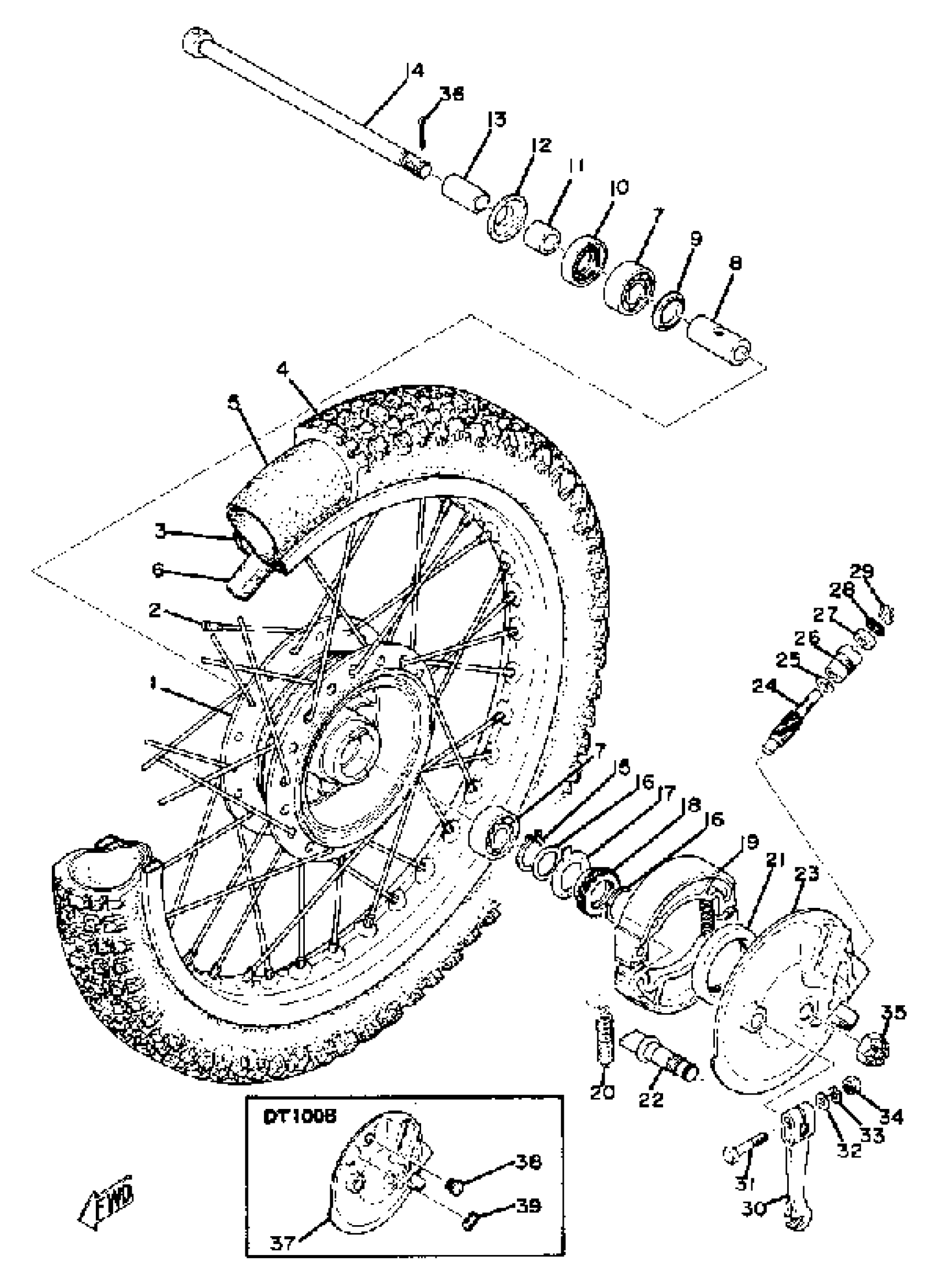

Find the part on the Front Wheel diagram for your 1974 Yamaha DT100A (DT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT100A (DT100A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

(276-25104-10-00)

1
Out of stock

2

SPOKE SET, INNER 1

(276-25196-80-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(276-25197-80-00)

1
Out of stock

3

RIM (1.40-19)

94414-19003-00

1
Out of stock

4

275X19 YOKO Y620

(94127-19321-00)

1
Out of stock

5

TUBE (2.75-19)(3GX)

94227-19292-00

—

$33.15

In stock

6

BAND, RIM

94327-19111-00

1

$12.51

In stock

7

BEARING

93306-30102-00

1
Out of stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

UNAVAILABLE IN PRICE BOOK

109-25115-00-00

1
Out of stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

COLLAR 1832518300

90387-12095-00

1

$4.63

In stock

12

COVER, HUB DUST

2K5-25118-00-00

1
Out of stock

13

COLLAR

90387-12099-00

1
Out of stock

14

AXLE, WHEEL

427-25181-10-00

1
Out of stock

15

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

16

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

17

CLUTCH, METER

183-25149-00-00

—
Out of stock

18

UNAVAILABLE IN PRICE BOOK

301-36246-00-00

1
Out of stock

19

BRAKESHOE SET

22F-W2534-00-00

1
Out of stock

19

BRAKE SHOE SET-2 PCS

326-W2536-00-00

1
Out of stock

20

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

21

SEAL,OIL

93105-47007-00

—
Out of stock

22

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

22

NO LONGER AVAILABLE

437-25151-00-00

1
Out of stock

23

BRAKE SHOE PLT ASSEMBLY

(437-25120-10-00)

1
Out of stock

24

GEAR, METER

301-25138-00-00

1
Out of stock

25

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

26

BUSHING

109-25136-00-00

—

$8.78

In stock

27

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

28

O-RING (26H)

93210-14579-00

—

$5.69

In stock

29

RING, STOP

102-25137-00-00

—
Out of stock

30

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

31

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

34

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

35

NUT CASTLE(481)

90171-12005-00

—

$7.35

In stock

36

PIN, COTTER

91490-30030-00

—

$7.15

In stock

36

PIN, COTTER

(91401-30075-00)

1
Out of stock

37

BRAKE SHOE PLT ASSEMBLY

(437-25120-10-00)

1
Out of stock

38

GROMMET (397)

90480-10068-00

—

$6.77

In stock

39

LABEL, INDICATOR

(437-25134-00-00)

1
Out of stock
