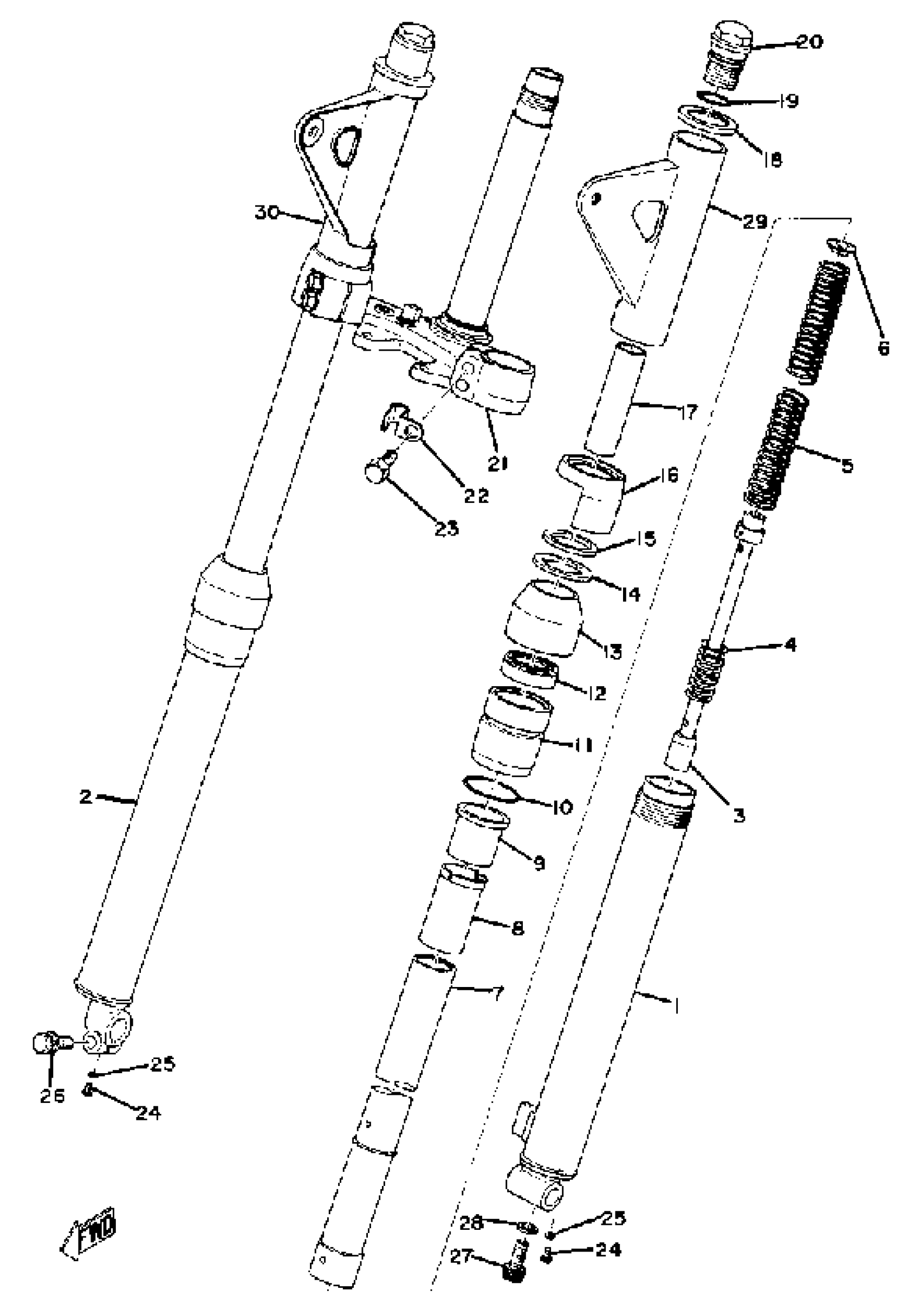

Find the part on the Front Fork diagram for your 1974 Yamaha DT100A (DT100A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha DT100A (DT100A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(437-23101-01-00)

1
Out of stock

1

TUBE, OUTER 1

(437-23126-00-00)

1
Out of stock

2

TUBE, OUTER 2

(437-23136-00-00)

1
Out of stock

3

CYLINDER, FRTFRK

(248-23170-01-00)

1
Out of stock

4

SPRING, SUB

(248-23152-00-00)

1
Out of stock

5

. SPRING, FRONT FORK

318-23141-00-00

1
Out of stock

6

SEAT, SPRING UPPER

(304-23142-50-00)

1
Out of stock

7

TUBE, INNER 1

(437-23124-00-00)

1
Out of stock

8

SPACER, OIL LOCK

(248-23166-00-00)

1
Out of stock

9

. METAL, SLIDE 1

(137-23125-01-00)

1
Out of stock

10

. O-RING

137-23147-00-00

1
Out of stock

11

OUTER NUT

(193-23150-40-00)

1
Out of stock

12

OIL SEAL

137-23145-01-00

1

$38.06

In stock

13

SEAL, DUST

248-23144-00-00

1

$28.22

In stock

14

. GASKET

(437-23163-00-00)

1
Out of stock

15

WASHER, LIGHT STAY

(437-23161-00-00)

1
Out of stock

16

COVER, OUTER 1

(304-23122-50-00)

1
Out of stock

17

SPACER

(248-23118-00-00)

1
Out of stock

18

GUIDE, COVER UPPER

(248-23115-01-00)

1
Out of stock

19

PACKING(O-RING)

146-23114-00-00

—
Out of stock

20

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

21

UNDER BRACKET

(437-23340-00-33)

1
Out of stock

22

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

23

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

24

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

25

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

26

BOLT, WITH WASHER

(90119-08010-00)

1
Out of stock

27

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

28

GASKET

(214-23158-00-00)

1
Out of stock

29

COVER, UPPER 1

(438-23121-00-20)

1
Out of stock

30

COVER, UPPER 2

(438-23131-00-20)

1
Out of stock
