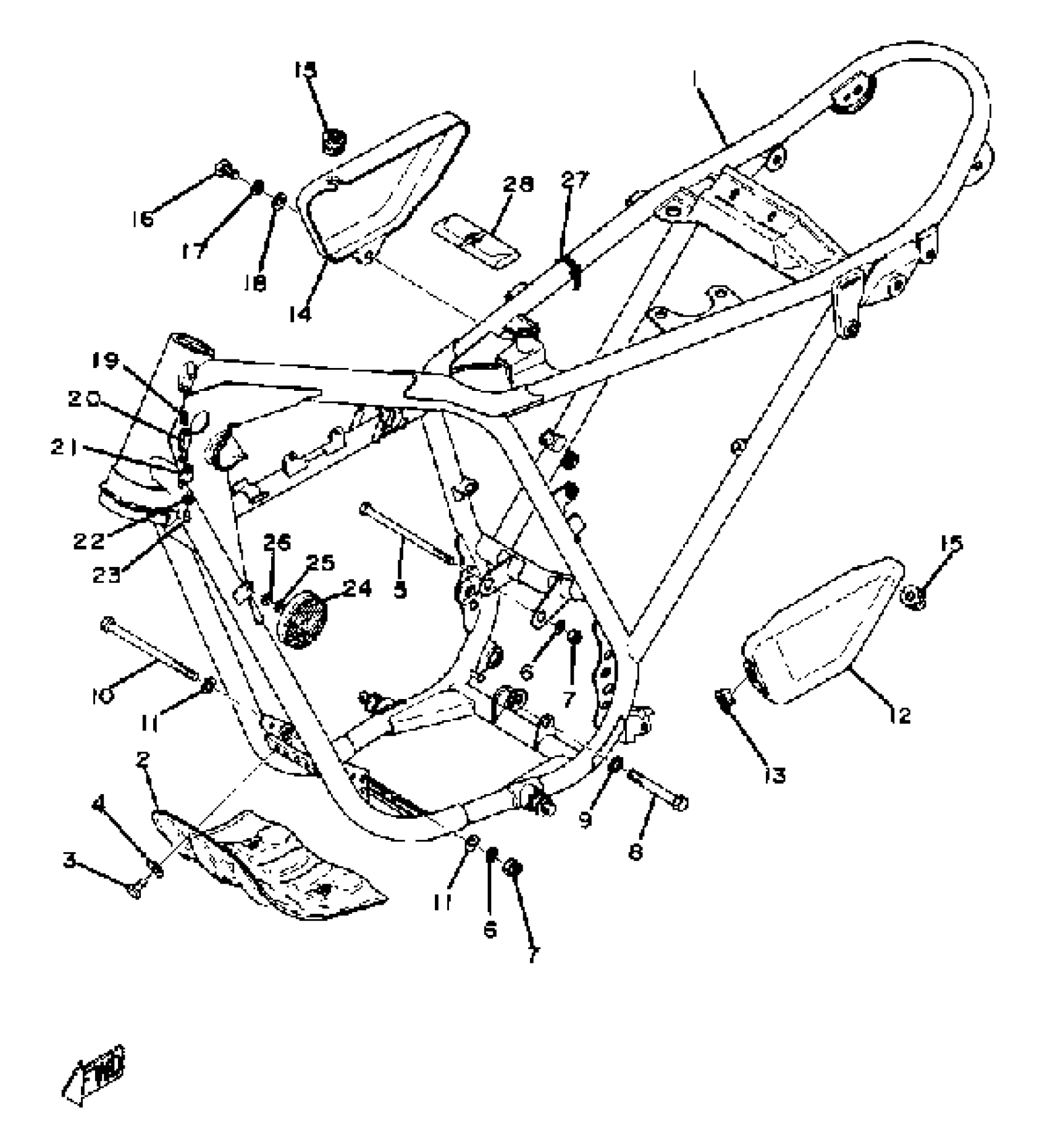

Yamaha DT100A (DT100A) 1974 FRAME SIDE COVER Diagram

#

Description
Price

1

FRAME

(437-21110-20-33)

Unavailable

2

PROTECTOR, ENGINE

(401-21471-00-90)

Unavailable

3

BOLT (661)

97013-06012-00

$5.60

4

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

5

BOLT, WASHER BASED (401)

90105-08120-00

$9.49

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

NUT, SELF-LOCKING (3Y2)

90185-08089-00

$9.49

8

BOLT

90105-10037-00

Unavailable

9

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

10

BOLT

90105-08024-00

$7.49

11

WASHER (401)

90209-08050-00

$10.49

12

SIDE COVER ASSEMBLY 1

437-21710-00-00

Unavailable

13

DAMPER, SIDE COVER

437-21717-10-00

$9.99

14

COVER, SIDE 2

437-21721-00-00

Unavailable

15

DAMPER, SIDE COVER (437)

90480-12053-00

$7.49

16

SCREW, PAN

98507-06014-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

19

SPRING, CONICAL

90502-08005-00

Unavailable

20

STEERING LOCK ASSY

341-23408-01-00

Unavailable

21

CAP, HANDLE LOCK

(134-23484-10-00)

Unavailable

22

WASHER, WAVE

90206-04003-00

Unavailable

23

RIVET 214234830000

90269-04003-00

Unavailable

24

REFLECTOR, FRONT 1

355-85111-01-00

Unavailable

25

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

26

. WASHER, PLAIN

92990-05200-00

Unavailable

27

BAND

341-26397-01-00

Unavailable

28

TOOL KIT

(315-W2810-10-00)

Unavailable
