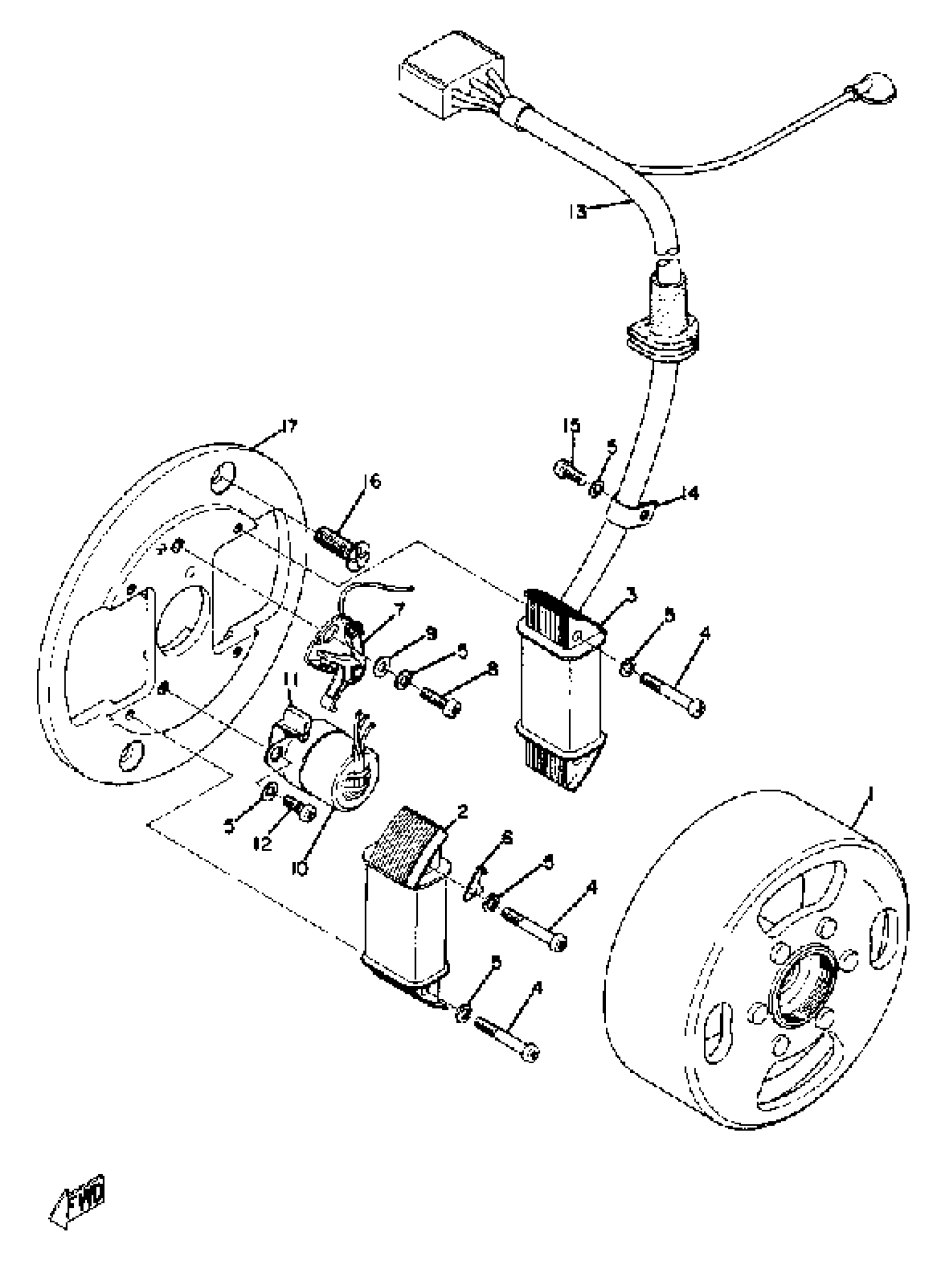

Yamaha DT100A (DT100A) 1974 FLYWHEEL MAGNETO Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

(437-81300-21-00)

Unavailable

1

ROTOR ASSEMBLY

(437-81350-20-00)

Unavailable

2

. COIL, SOURCE

375-81312-20-00

Unavailable

3

. COIL, LIGHTING 1

437-81313-20-00

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

Unavailable

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

. UNAVAILABLE IN PRICE BOOK

296-81332-21-00

Unavailable

7

CONTACT BREAKER ASSY

2A6-81321-20-00

$49.99

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

10

. CONDENSER

296-81325-90-00

Unavailable

11

. LUBRICATOR

116-81331-20-00

Unavailable

12

SCREW, PAN HEAD

110-81346-21-00

$5.49

13

LEAD WIRE ASSEMBLY

(437-81315-20-00)

Unavailable

14

. CLAMP

109-81328-11-00

Unavailable

15

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

16

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

17

BASE, MAGNETO

437-81309-20-00

Unavailable
