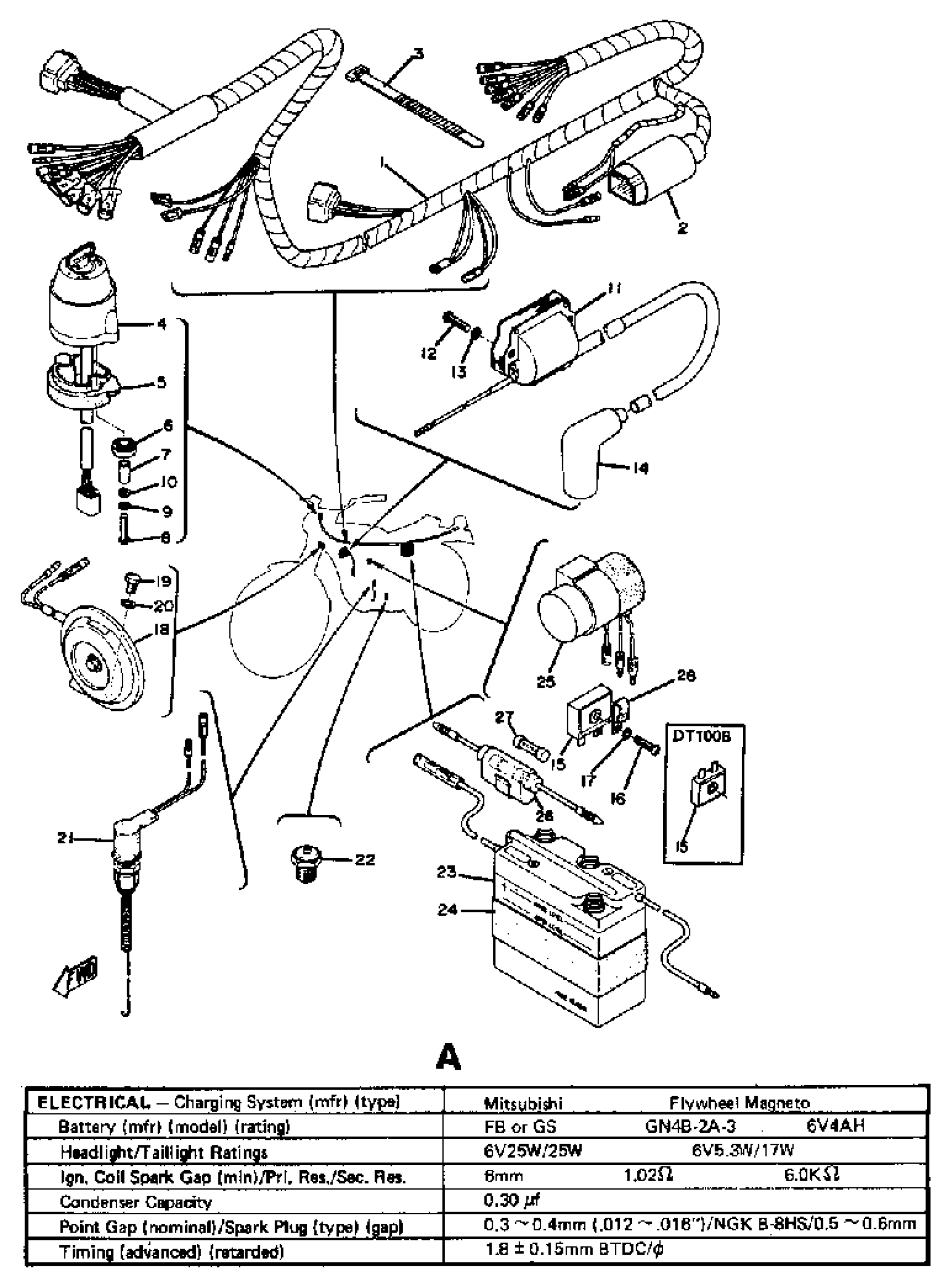

Yamaha DT100A (DT100A) 1974 ELECTRICAL Diagram

#

Description
Price

1

WIRE HARNESS ASSEMBLY

(437-82590-22-00)

Unavailable

2

COVER, CONNECTER

307-82599-01-00

Unavailable

3

BAND, SWITCH CORD

437-83936-01-00

$7.99

4

MAIN SWITCH ASSEMBLY

443-82508-21-00

Unavailable

5

. DAMPER, MAIN SWITCH

437-82555-00-00

Unavailable

6

DAMPER, STOPPER

1M1-82556-00-00

Unavailable

7

COLLAR, MAIN SWITCH

437-82516-00-00

Unavailable

8

SCREW, PAN HEAD

98580-05020-00

Unavailable

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

. WASHER, PLAIN

92990-05200-00

Unavailable

11

IGNITION COIL ASSY

355-82310-40-00

Unavailable

12

SCREW PAN HEAD

98580-06020-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

PLUG CAP ASSY

56J-82370-00-00

$64.99

15

RECTIFIER ASSY

353-81970-M2-00

Unavailable

16

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

18

HORN

437-83371-13-00

Unavailable

19

BOLT (661)

97013-06012-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable

21

STOP SWITCH ASSEMBLY

437-82530-02-00

Unavailable

22

NEUTRAL SWITCH ASSY

136-82540-03-00

Unavailable

23

6N4B2A3 YUASA BATTERY

6N4-B2A3Y-00-00

Unavailable

24

BAND, BATTERY

(437-82124-01-00)

Unavailable

25

FLASHER RELAY ASSEMBLY

438-83350-62-00

Unavailable

26

FUSE HOLDER ASSY

55K-82150-02-00

Unavailable

27

FUSE

1A0-82151-00-00

Unavailable

28

CLAMP(4MX)

90465-06376-00

Unavailable
