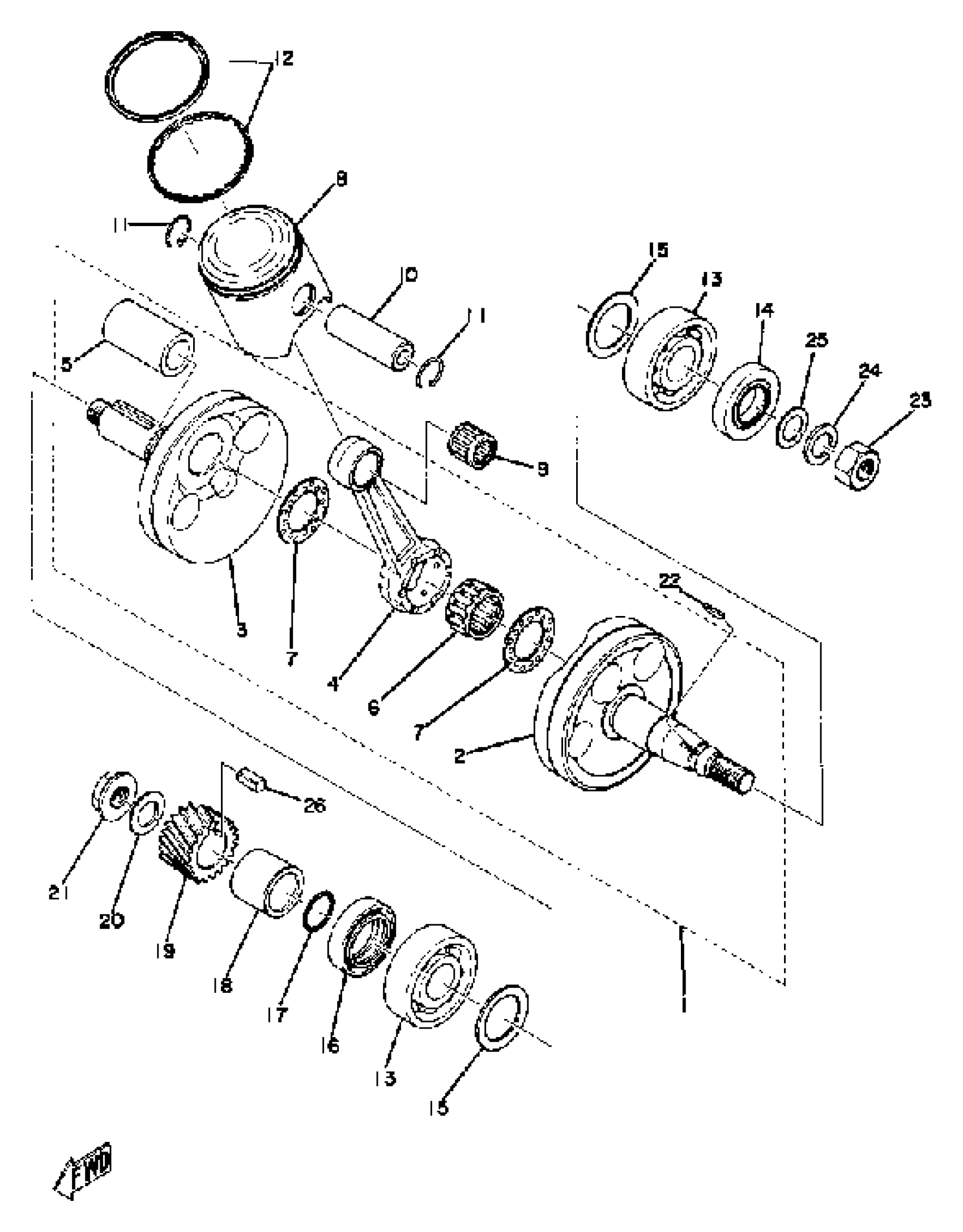

Yamaha DT100A (DT100A) 1974 CRANK PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

1M7-11400-00-00

Unavailable

2

CRANK 1

(427-11412-00-00)

Unavailable

3

CRANK 2

(336-11422-01-00)

Unavailable

4

ROD, CONNECTING

1M7-11651-00-00

$114.99

5

PIN, CRANK

5E2-11681-00-00

$32.99

6

BRG,CYL-CAL ROLLER 16G TM

93310-422E7-00

Unavailable

7

WASHER (29L)

90209-22248-00

Unavailable

8

PISTON STD

437-11631-01-97

Unavailable

8

PISTON 1 O/S 0.25

437-11635-01-00

Unavailable

8

PISTON 2 O/S 0.50

437-11636-01-00

Unavailable

9

BRG,CYL-CAL ROLLER 7G TM

93310-21403-00

$31.99

10

PIN, PISTON

131-11633-00-00

$21.99

11

CIRCLIP 131116340000

93450-15023-00

$9.49

12

PISTON RINGSET STD

437-11610-00-00

Unavailable

12

PISTON RINGSET 1ST

437-11610-10-00

Unavailable

12

PISTON RINGSET 2ND

437-11610-20-00

Unavailable

13

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

14

OIL SEAL(4BA)

93102-20447-00

Unavailable

15

SHIM, CRANK 1

136-11561-00-03

Unavailable

15

SHIM, CRANK 1

136-11561-00-05

Unavailable

16

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

17

O-RING(3KX)

93210-180A6-00

Unavailable

18

COLLAR, DISTANCE 2761613600

90387-20175-00

Unavailable

19

GEAR, PRIMARY DRIVE (19T)

336-16111-00-00

Unavailable

20

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

21

NUT(1EE)

90179-12659-00

Unavailable

22

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

23

NUT(3DM)

95304-12600-00

Unavailable

24

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

25

WASHER PLATE 611441260000

90201-14212-00

Unavailable

26

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
