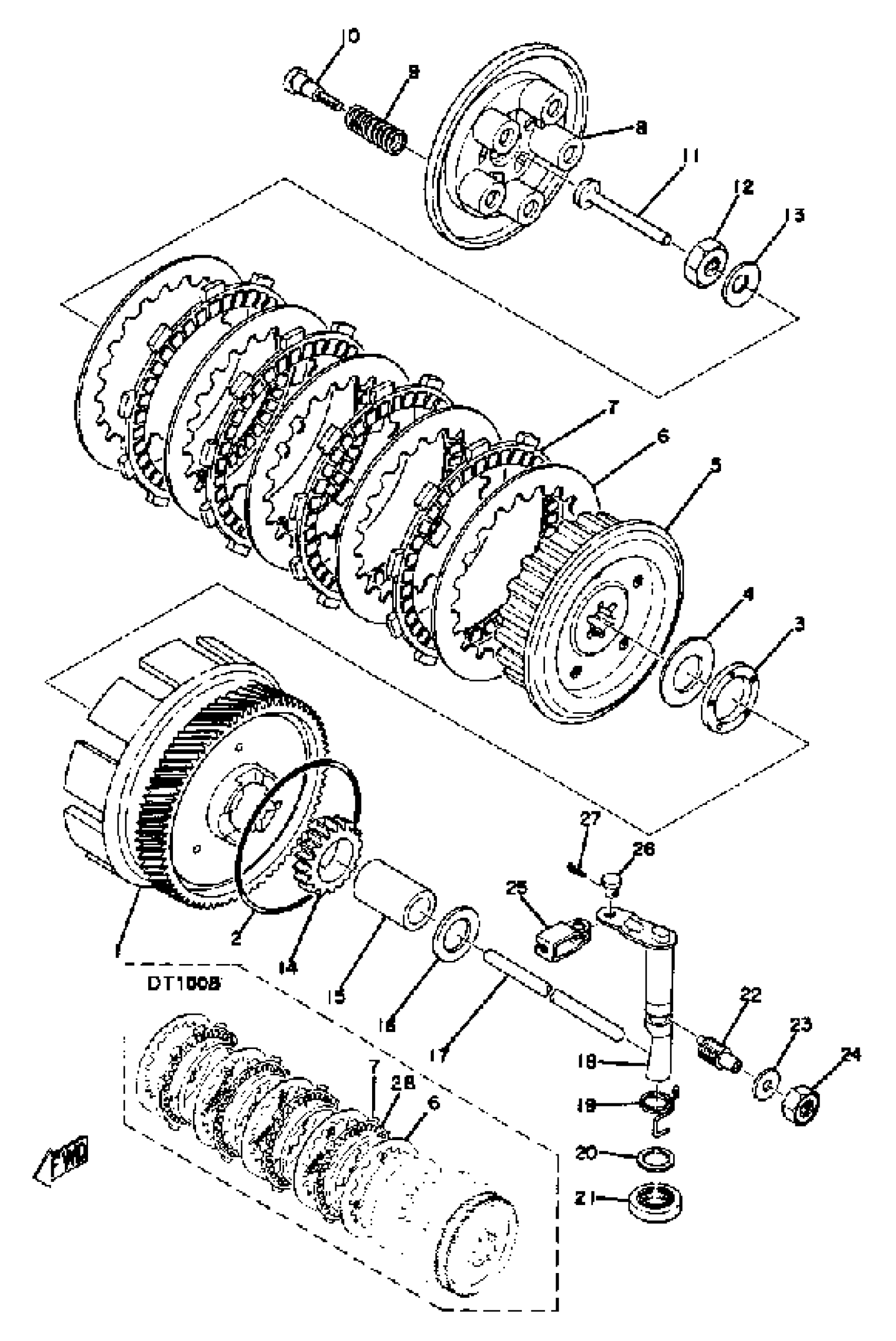

Yamaha DT100A (DT100A) 1974 CLUTCH Diagram
#
Description
Price
1
PRI DRVN GEAR
(403-16150-00-00)
Unavailable
1
CLUTCH ASSEMBLY
(403-16301-01-00)
Unavailable
1
CLUTCH ASSEMBLY
(437-16301-00-00)
Unavailable
3
. BEARING, FLAT #41
93341-22302-00
Unavailable
4
PLATE, THRUST 1
(276-16154-00-00)
Unavailable
5
. BOSS, CLUTCH
132-16371-02-00
Unavailable
7
PLATE,FRICTION
401-16321-09-00
Unavailable
10
SCREW, SPECL SHAPE
(90149-05147-00)
Unavailable
12
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
13
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
14
GEAR, KICK PINION
(254-15631-00-00)
Unavailable
15
SPACER (517)
90560-17146-00
Unavailable
16
PLATE, THRUST
122-16164-00-00
Unavailable
17
ROD, PUSH 2
(403-16357-00-00)
Unavailable
18
AXLE, PUSH LEVER
401-16382-02-00
Unavailable
19
SPRING, TORSION
90508-14132-00
Unavailable
20
WASHER PLATE 150251530000
90201-14217-00
Unavailable
21
OIL SEAL (14X25X5-2H7)
93104-14059-00
Unavailable
22
SCREW, ADJUSTING
364-16343-00-00
Unavailable
23
GASKET (3JD1)
90430-12207-00
Unavailable
24
NUT, CLUTCH ADJUSTING
583-16344-00-00
Unavailable
25
JOINT
214-16389-00-00
Unavailable
26
PIN W/HOLE 214163790000
90240-06005-00
Unavailable
27
. PIN, COTTER
91401-10015-00
Unavailable
28
RING, CUSHION
137-16367-00-00
Unavailable
