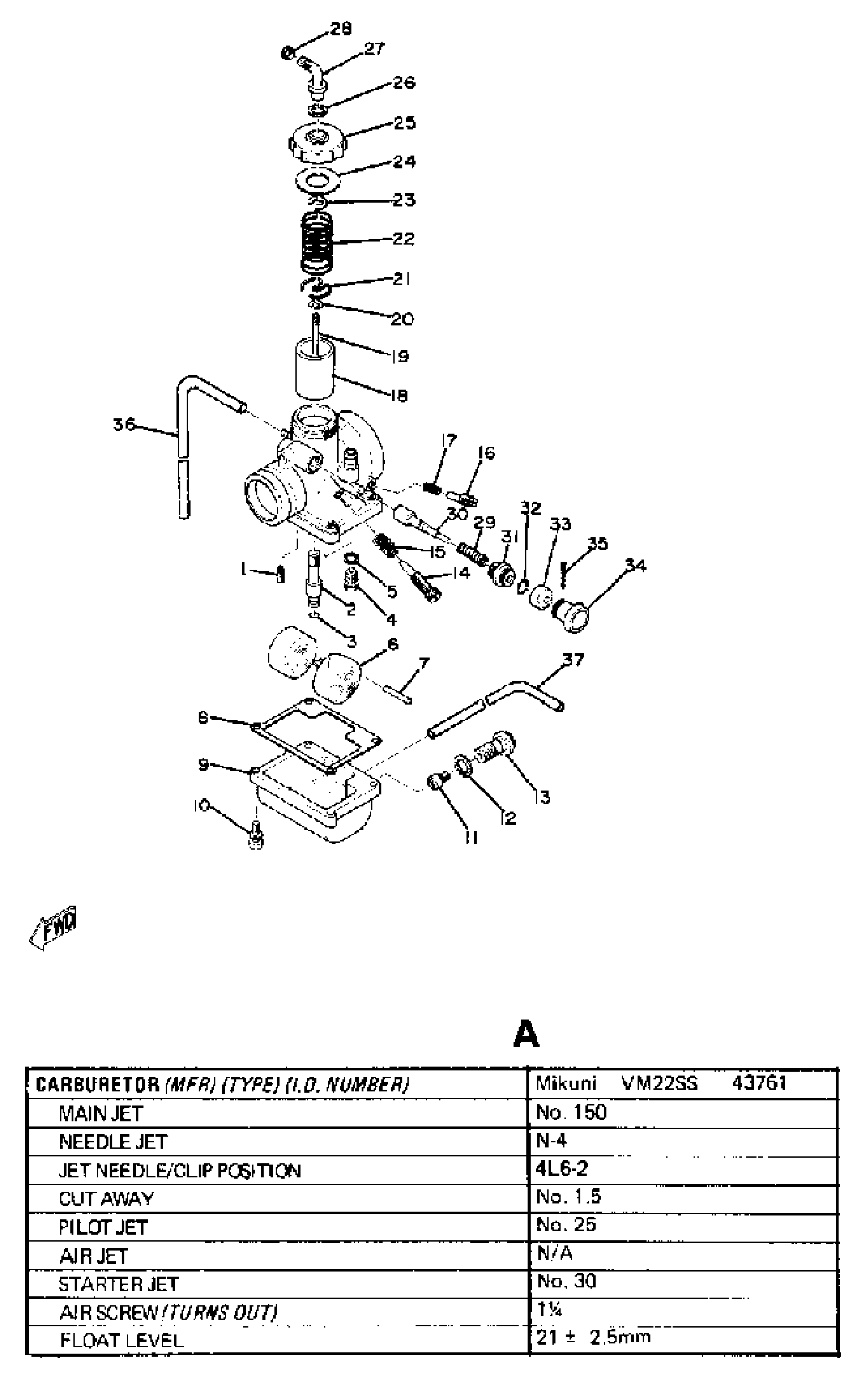

Yamaha DT100A (DT100A) 1974 CARBURETOR Diagram

#

Description
Price

1

JET, PILOT (# 25)

260-14142-25-00

$9.99

1

CARBURETOR ASSEMBLY 1 (437-14101-61) 001

437-14101-62-00

Unavailable

1

CARBURETOR ASSEMBLY 1

(540-14101-60-00)

Unavailable

2

. NOZZLE, MAIN

(437-14141-24-00)

Unavailable

3

O-RING

214-14147-00-00

$7.99

4

VALVE SEAT ASSY

353-14190-15-00

Unavailable

5

WASHER, VALVE SEAT

127-14195-00-00

$7.99

6

FLOAT

4NR-14185-00-00

$41.99

7

PIN, FLOAT

127-14186-00-00

$6.65

8

GASKET,FLOAT CHAMBER

304-14184-00-00

$14.49

9

BODY, FLOAT CHMBR 1

(437-14181-00-33)

Unavailable

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

JET, MAIN #140

137-14143-28-A0

Unavailable

11

JET, MAIN #150

137-14143-30-00

$7.99

11

JET, MAIN #160

137-14143-32-00

$9.99

12

GASKET

304-14198-00-00

Unavailable

13

BOLT,BANJO

479-14166-00-00

Unavailable

14

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

14

. SCREW, THROTTLE

493-14122-00-00

Unavailable

15

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

15

. SPRING, THROTTLE STOP

493-14133-00-00

Unavailable

16

AIR SCREW SET

22K-14104-00-00

Unavailable

17

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

18

. VALVE, THROTTLE 1

304-14112-15-00

Unavailable

18

. VALVE, THROTTLE 1

304-14112-15-00

Unavailable

19

NEEDLE SET

18L-1490J-00-00

Unavailable

20

CLIP

3FA-14137-00-00

Unavailable

21

. SEAT, SPRING

137-14136-00-00

Unavailable

22

SPRING, THROTTLE VALVE

3X3-14131-00-00

Unavailable

23

CLIP

363-14137-00-00

Unavailable

24

GASKET

193-14126-00-00

Unavailable

25

. TOP, MIXING CHAMBER

(437-14158-00-33)

Unavailable

26

GASKET

363-14198-00-00

Unavailable

27

. GUIDE, CABLE

363-14155-00-00

Unavailable

28

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

29

SPRING, PLUNGER

156-14135-00-00

Unavailable

30

. PLUNGER, STARTER

304-14171-00-00

Unavailable

31

CAP, PLUNGER

152-14174-00-00

Unavailable

32

. CLIP, PLUNGER

152-14138-00-00

Unavailable

33

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

34

HOLDER

304-14261-00-00

Unavailable

35

PIN, COTTER

91490-16020-00

Unavailable

36

PIPE, AIR VENT

183-14197-01-00

Unavailable

37

PIPE

23F-14197-00-00

Unavailable
