REAR WHEEL

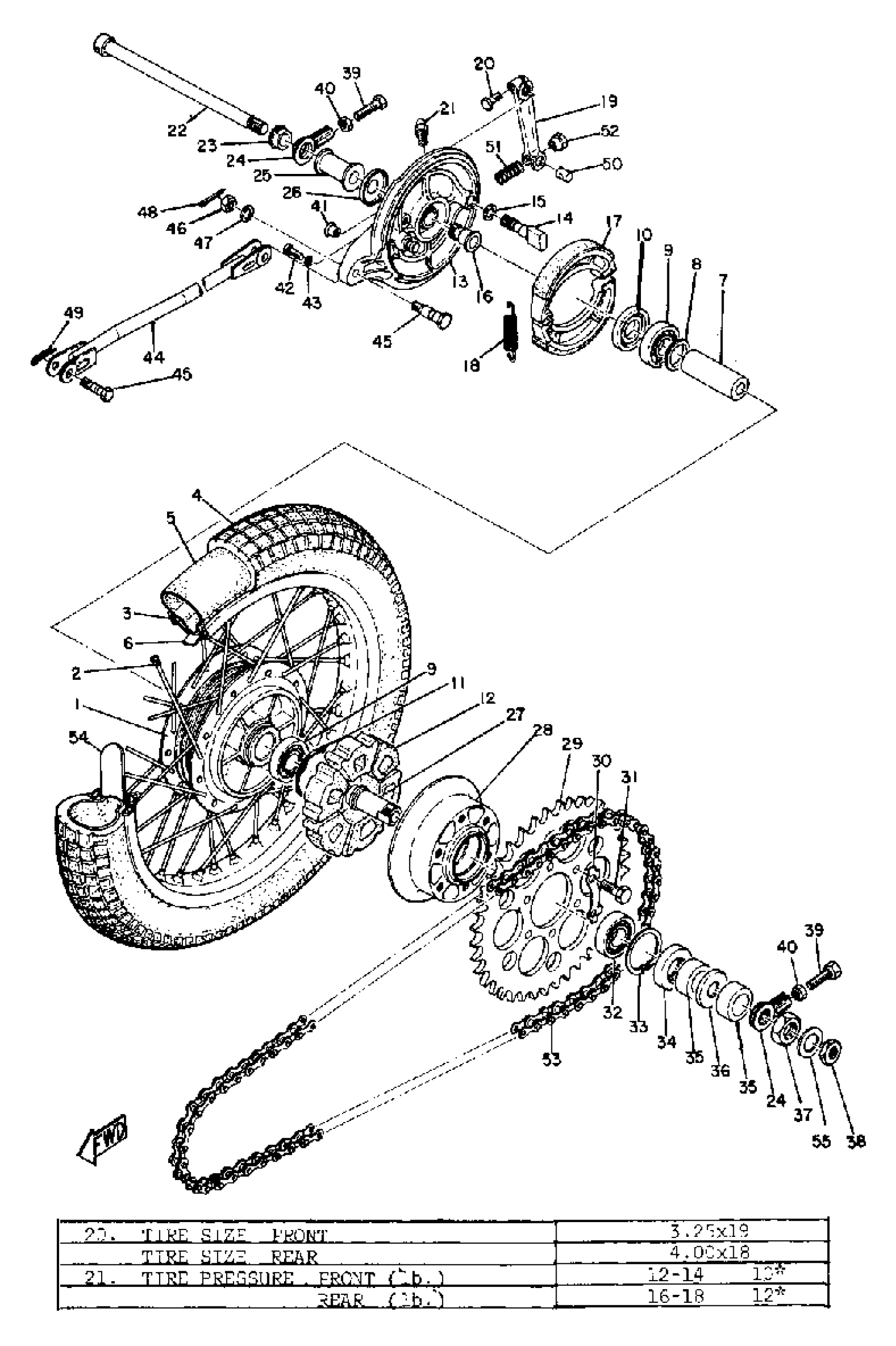

Yamaha DT1 (DT1) 1968 REAR WHEEL Diagram
#
1
REAR WHL ASSEMBLY 18
(214-25301-00-00)
Unavailable
1
HUB, REAR
(214-25311-00-00)
Unavailable
1
SPROCKET, DRIVN 40T
(214-25440-10-33)
Unavailable
1
. JOINT CHAIN
94680-11001-00
Unavailable
2
SPOKE SET, REAR
(214-25304-00-00)
Unavailable
2
SPOKE SET, INNER 2
(214-25396-90-00)
Unavailable
2
SPOKE SET, OUTER 2
(214-25397-90-00)
Unavailable
2
SPROCKET, DRIVN 41T
(214-25441-10-33)
Unavailable
3
SPROCKET, DRIVN 42T
(214-25442-10-33)
Unavailable
3
RIM 1.85X18
(94418-18036-00)
Unavailable
4
SPROCKET, DRIVN 43T
(214-25443-10-33)
Unavailable
4
400X18 DUN TRI UNI
(94140-18317-00)
Unavailable
5
SPROCKET, DRIVN 44T
(214-25444-10-33)
Unavailable
6
SPROCKET, DRIVN 45T
214-25445-10-33
Unavailable
6
BAND, RIM (2J4)
94340-18086-00
Unavailable
7
SPROCKET, DRIVN 47T
214-25447-10-00
Unavailable
7
SPACER(1ET)
90560-15290-00
Unavailable
8
FLANGE, SPACER
146-25116-00-00
Unavailable
8
SPROCKET, DRIVN 47T
214-25447-10-00
Unavailable
9
SPROCKET, DRIVN 48T
(214-25448-10-33)
Unavailable
9
BRG,R-B 6202Z 35MM 48G NT
93306-20204-00
Unavailable
10
SPROCKET, DRIVN 49T
(214-25449-10-33)
Unavailable
10
OIL SEAL, SO-TYPE
(93104-44024-00)
Unavailable
11
SPROCKET, DRIVN 51T (214-25451-10)
214-25451-10-33
Unavailable
11
O-RING (183)
93210-42101-00
Unavailable
12
DAMPER
(214-25364-00-00)
Unavailable
12
SPROCKET, DRIVN 51T (214-25451-10)
214-25451-10-33
Unavailable
13
PLATE, BRAKE SHOE
(214-25321-01-00)
Unavailable
14
CAMSHAFT
214-25351-01-00
Unavailable
15
SHIM, CAM SHAFT
148-25353-00-00
Unavailable
16
COLLAR
(90387-15447-00)
Unavailable
17
BRAKE SHOE KIT
3GW-W253A-00-00
Unavailable
18
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
19
LEVER, CAM SHAFT
214-25355-00-00
Unavailable
20
BOLT, HEXAGON
97017-06025-00
Unavailable
21
NIPPLE, GREASE
93700-06M03-00
Unavailable
22
AXLE, WHEEL
(214-25381-01-00)
Unavailable
23
COLLAR, WHEEL
(214-25377-00-00)
Unavailable
24
PULLER, CHAIN 1
214-25388-00-00
Unavailable
25
COLLAR
(90387-15120-00)
Unavailable
26
COVER, PLATE
(135-25127-00-00)
Unavailable
27
AXLE, SPROCKET
(214-25387-00-00)
Unavailable
28
CLUTCH, HUB
(214-25366-00-00)
Unavailable
29
SPROCKET, DRIVN 39T (39T) (214-25439-10)
214-25439-10-33
Unavailable
30
WASHER, LOCK
22W-25412-00-00
Unavailable
31
BOLT, FITTING
90109-08377-00
Unavailable
32
BEARING (22K)
93306-20446-00
Unavailable
33
CIRCLIP(48Y)
99009-47500-00
Unavailable
34
OIL SEAL (28X47X7-102)
93102-28022-00
Unavailable
35
COLLAR
(90387-20157-00)
Unavailable
36
COVER, HUB DUST
(214-25367-00-00)
Unavailable
37
NUT, HEXAGON
90170-20167-00
Unavailable
38
NUT, CASTLE(2UJ)
90171-14056-00
Unavailable
39
BOLT
90101-08060-00
Unavailable
40
. NUT
95380-08700-00
Unavailable
41
PLUG (17J)
90338-07124-00
Unavailable
42
SCREW PAN HEAD
98580-06020-00
Unavailable
43
WASHER, SPRING
92995-06100-00
Unavailable
44
BAR, TENSION
(214-25371-00-33)
Unavailable
45
BOLT
(90109-08102-00)
Unavailable
46
. NUT
95380-08700-00
Unavailable
47
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
48
PIN, COTTER
91490-20025-00
Unavailable
49
CLIP (156-83525-00)
90468-10050-00
Unavailable
50
PIN 1562723700
90249-12008-00
Unavailable
51
SPRING, (180-27236-00)
90501-10245-00
Unavailable
52
NUT (25K)
90179-06411-00
Unavailable
53
520 DS 110L
94585-20110-00
Unavailable
54
SPACER, BEAD
1T2-25394-00-00
Unavailable
55
WASHER, PLATE
(90201-15312-00)
Unavailable
