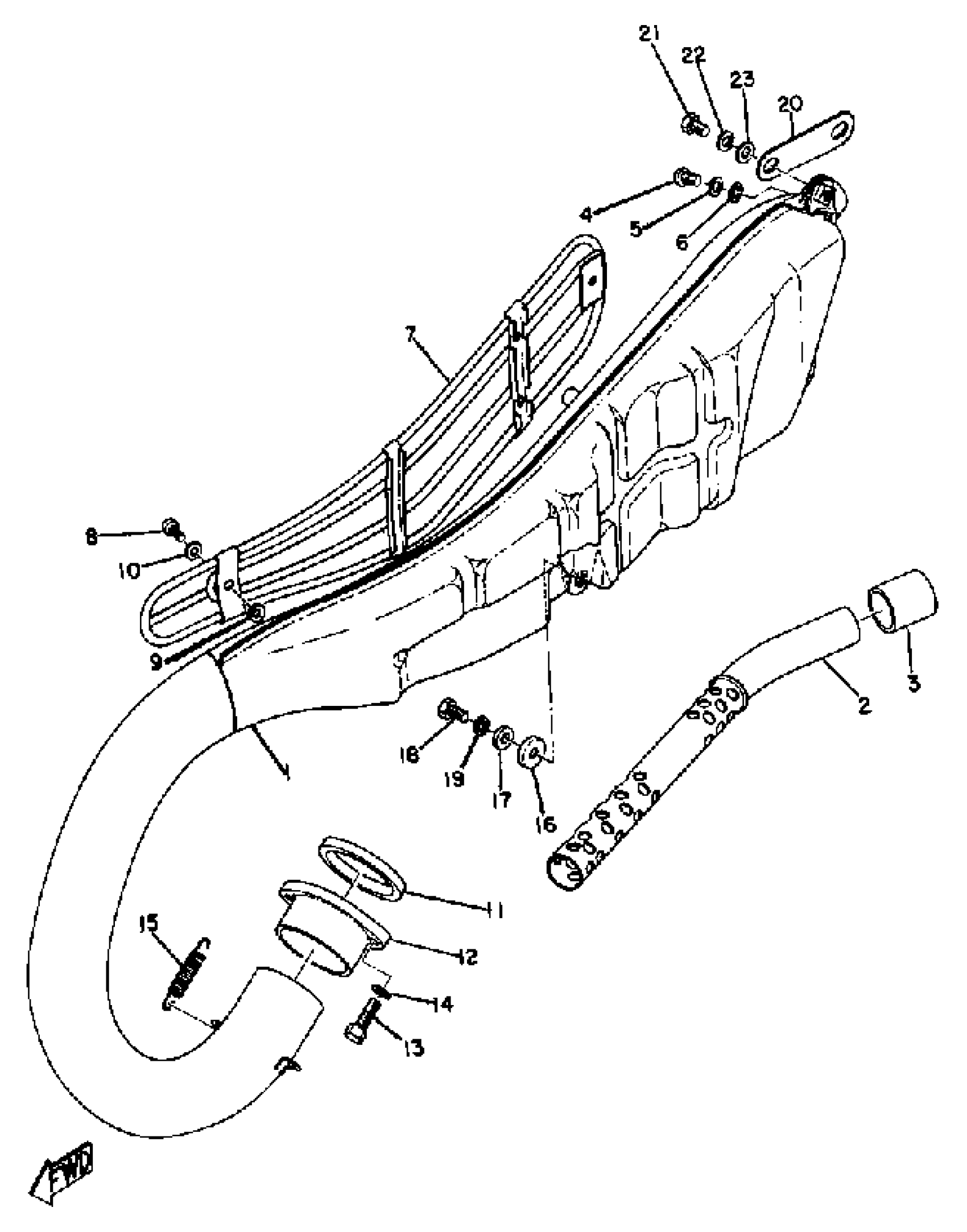

Yamaha DT1 (DT1) 1968 MUFFLER Diagram

#

Description
Price

1

PIPE, OUTLET

(214-14752-00-00)

Unavailable

1

TOOL

UNA-VAILA-BL-EI

Unavailable

2

SILENCER, EXHAUST

(214-14753-00-00)

Unavailable

3

PIPE, MUFFLER TAIL

(214-14746-01-00)

Unavailable

4

SCREW PAN HEAD

98580-06010-00

$8.49

5

WASHER, SPRING

92995-06100-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

PROTECTOR, MUFF 1

214-14718-00-00

Unavailable

8

SCREW, BIND(J45)

98980-06012-00

$8.49

9

WASHER, PLATE(3MT)

90202-05188-00

$8.49

10

WASHER, PLATE(3MB)

90202-05187-00

$1.38

11

GASKET, EXHAUST PIPE

214-14613-09-00

$18.49

12

NUT, RING

(214-14612-00-00)

Unavailable

13

BOLT(3DM)

97024-06020-00

$8.49

14

WASHER, SPRING

92995-06100-00

Unavailable

15

SPRING 214-14683-01

90506-12029-00

Unavailable

16

GROMMET (16R)

90480-14329-00

Unavailable

17

WASHER, PLATE

90201-06380-00

Unavailable

18

BOLT (661)

97013-06012-00

Unavailable

18

BOLT(JF7)

97080-06030-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

STAY, MUFFLER 1

214-14771-00-00

Unavailable

21

BOLT (661)

97013-06012-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78
