1968 Yamaha DT1 (DT1) Kick Diagram

← All diagrams

Find the part on the Kick diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

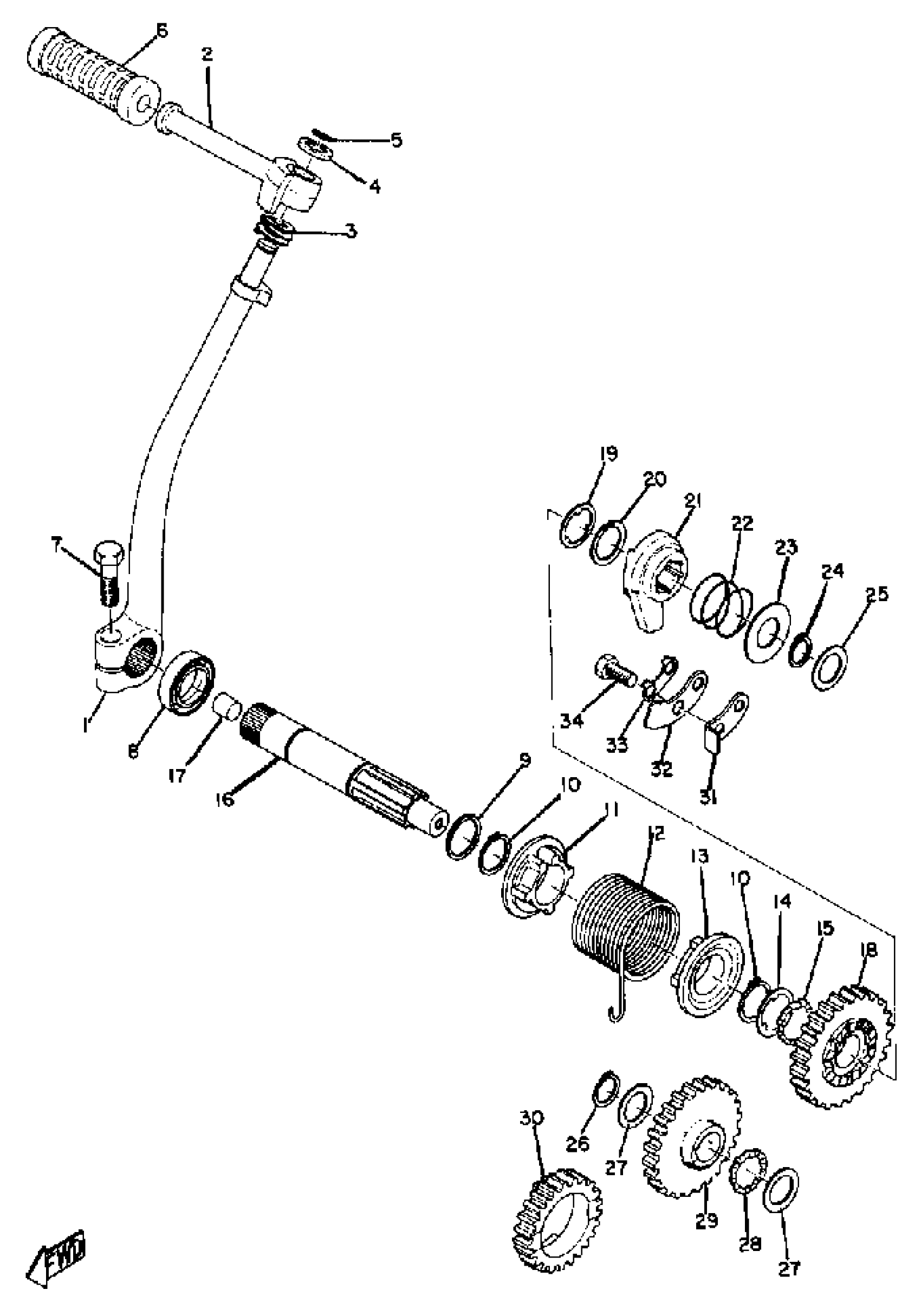

1968 Yamaha DT1 (DT1) Kick Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

275-15610-00-93

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

LEVER, KICK

(214-15612-09-00)

1
Out of stock

3

SPRING,KICK CRANK

214-15625-00-00

1
Out of stock

4

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

5

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

6

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

7

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

8

OIL SEAL (20X30X4.5-146)

93104-20007-00

1

$6.23

In stock

9

WASHER, PLATE (5N0)

90201-203E7-00

—

$7.22

In stock

10

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

11

COVER, SPRING

(214-15676-00-00)

1
Out of stock

12

SPRING, TORSION (214-15665-00)

90508-30079-00

1
Out of stock

13

GUIDE, SPRING

(214-15664-00-00)

1
Out of stock

14

WASHER

(214-15653-00-00)

1
Out of stock

15

WASHER, WAVE

(90206-20047-00)

1
Out of stock

16

AXLE, KICK

214-15661-00-00

1
Out of stock

17

. PLUG, BLIND

214-17481-00-00

1
Out of stock

18

GEAR, KICK (24T)

308-15641-00-00

1
Out of stock

19

WASHER, CLAW (168-15653-00)

90214-16009-00

1
Out of stock

20

CIRCLIP (525)

93410-20038-00

—

$2.62

In stock

21

WHEEL, RATCHET

(308-15671-00-00)

1
Out of stock

22

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

23

WASHER, PLAIN (1JL)

90201-155K6-00

—
Out of stock

24

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

25

SHIM

132-15644-00-00

1
Out of stock

26

CIRCLIP(1AR)

99009-15400-00

—

$5.10

In stock

27

SHIM, MAIN AXLE (1.0)

164-17417-00-10

—
Out of stock

28

WASHER WAVE 137156430000

90206-15021-00

—

$6.86

In stock

29

GEAR, KICK IDLE (23T)

275-15651-00-00

1
Out of stock

30

GEAR, KICK PINION

(214-15631-00-00)

1
Out of stock

31

STOPPER

214-15668-00-00

1
Out of stock

32

GUIDE, RATCHET WHEEL

2NX-15674-00-00

—

$8.71

In stock

33

WASHER, LOCK

214-15686-00-00

—

$6.38

In stock

34

BOLT, STUD

(90116-06180-00)

1
Out of stock
