1968 Yamaha DT1 (DT1) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

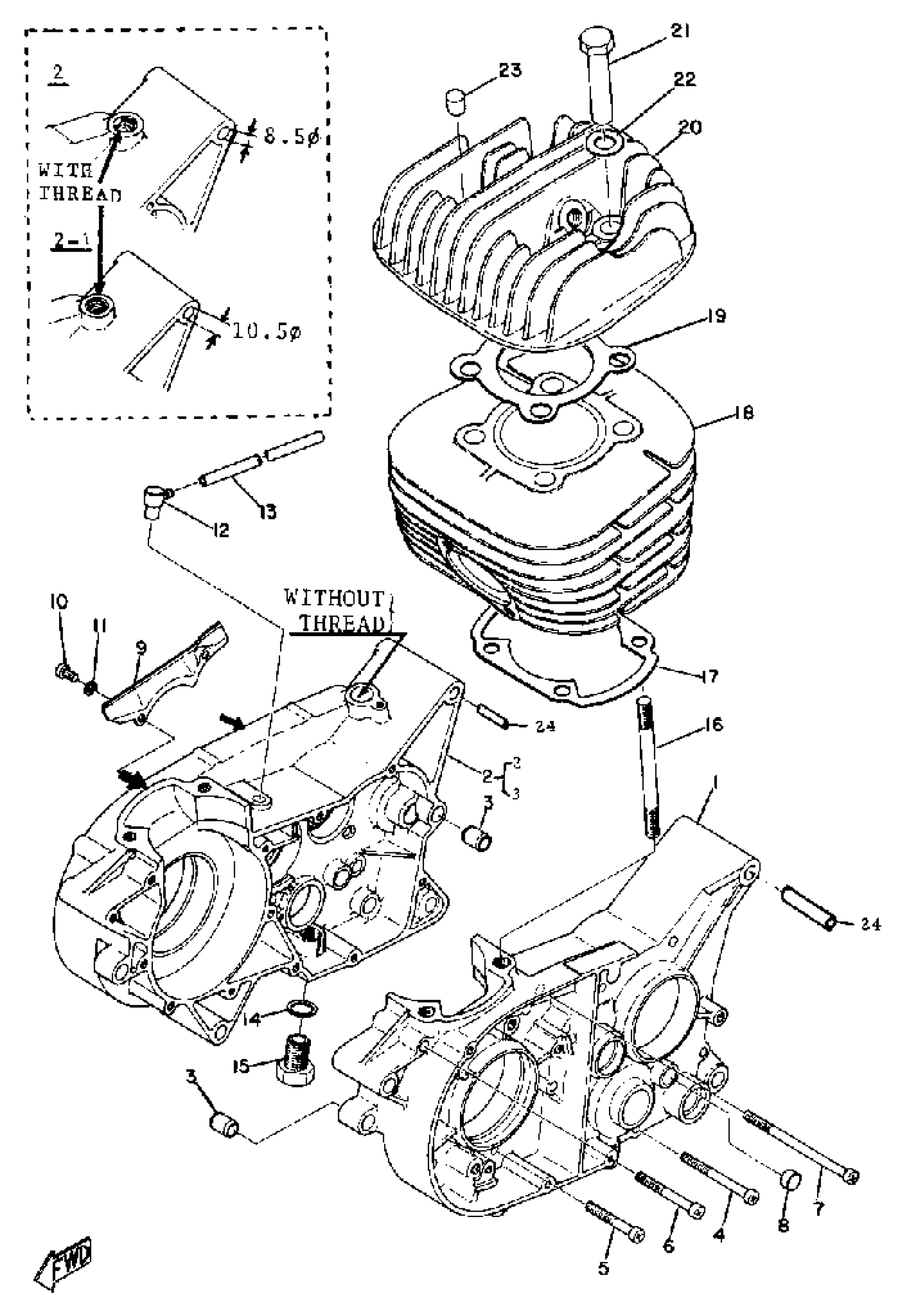

1968 Yamaha DT1 (DT1) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

214-15111-00-00

1
Out of stock

1

CRANKCASE 1

291-15111-00-00

1
Out of stock

1

CRANKCASE 1

291-15111-00-00

1
Out of stock

1

UNAVAILABLE IN PRICE BOOK

214-15121-02-00

1
Out of stock

1

CRANKCASE 1

(291-15111-00-00)

1
Out of stock

1

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

2

UNAVAILABLE IN PRICE BOOK

214-15121-01-00

1
Out of stock

2

UNAVAILABLE IN PRICE BOOK

214-15121-03-00

1
Out of stock

3

CRANKCASE 2

291-15121-00-00

1
Out of stock

3

CRANKCASE 2

(291-15121-00-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW PAN HEAD

98580-06565-00

—
Out of stock

5

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

6

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

7

SCREW, PAN

98507-06100-00

1

$6.80

In stock

8

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

9

COVER

(214-15492-00-00)

1
Out of stock

10

SCREW, PAN HEAD

(92503-05012-00)

1
Out of stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

12

BREATHER

583-15371-00-00

—
Out of stock

13

HOSE(7EG)

90446-07241-00

—

$7.42

In stock

14

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

15

BOLT

90109-14385-00

—

$13.66

In stock

16

BOLT, STUD (214-11361-00)

90116-10089-00

1
Out of stock

17

GASKET, CYLINDER

214-11351-09-00

—

$11.72

In stock

18

CYLINDER 1

(233-11311-01-00)

1
Out of stock

19

GASKET, CYLINDER HEAD

214-11181-09-00

1
Out of stock

20

HEAD, CYLINDER 1

(214-11111-00-00)

1
Out of stock

21

NUT, SPEC''L SHAPE (214-11171-00)

90179-10178-00

1
Out of stock

22

WASHER, PLATE (3X3)

90201-15797-00

—

$6.29

In stock

23

ABSORBER 1

(214-11161-00-00)

1
Out of stock

24

METAL 1

(214-15117-09-00)

1
Out of stock

24

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

24

GEAR, DRIVEN

214-17841-01-00

1
Out of stock

24

STOPPER

5U7-17812-00-00

1
Out of stock

24

BUSH (214-17843-00)

90381-08002-00

—

$10.54

In stock

24

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

O-RING (137)

93210-13016-00

—

$5.78

In stock

24

BRG,R-B 6203 42MM 70G KY

93306-20306-00

—

$32.16

In stock

24

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

24

SCREW PAN HEAD

98580-06565-00

—
Out of stock

24

CIRCLIP(5U8)

99009-42500-00

—

$6.77

In stock
