1968 Yamaha DT1 (DT1) Handle & Wire Diagram

← All diagrams

Find the part on the Handle & Wire diagram for your 1968 Yamaha DT1 (DT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

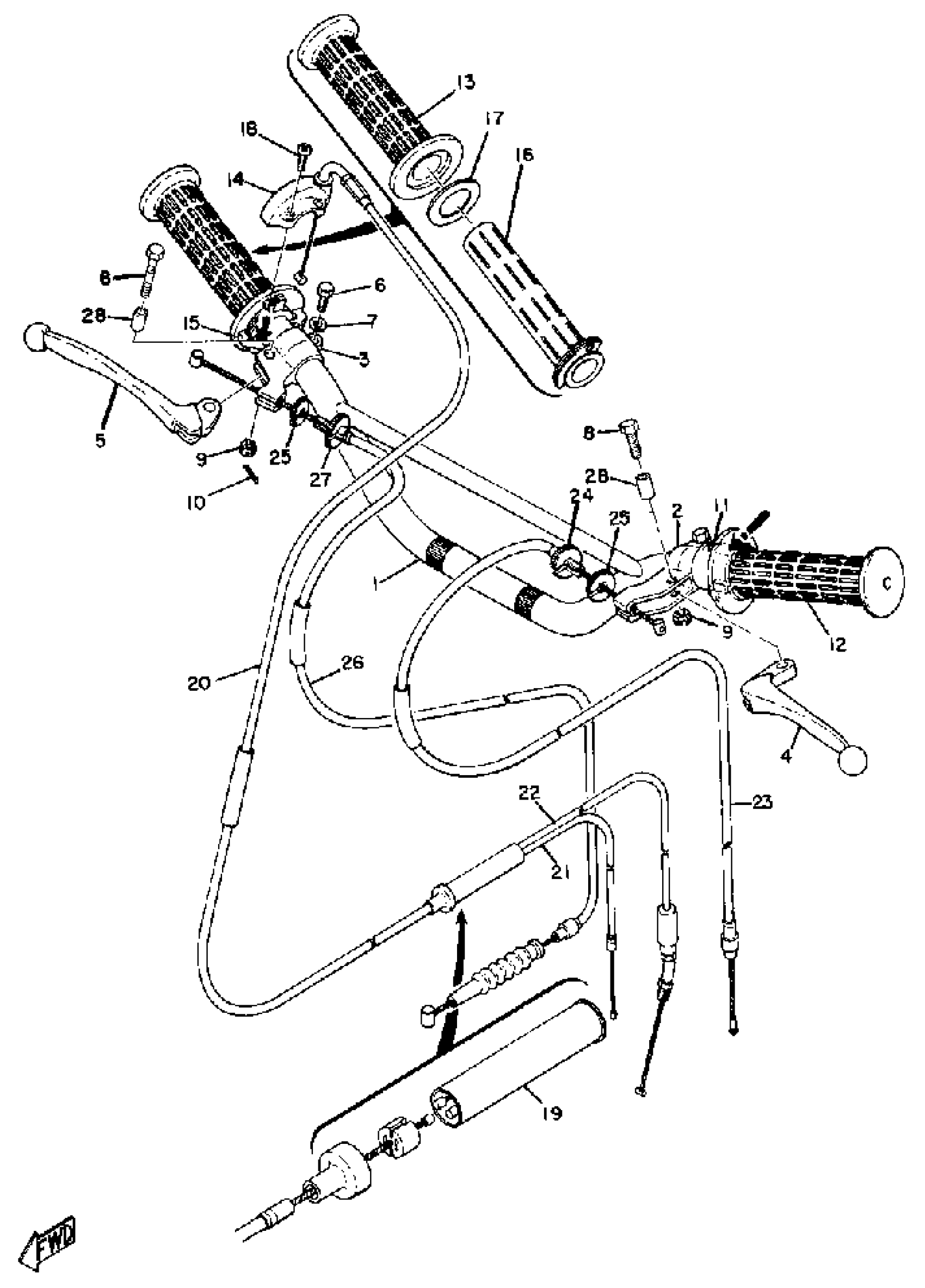

1968 Yamaha DT1 (DT1) Handle & Wire Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY 1

214-82910-07-00

1
Out of stock

1

HANDLEBAR

5V6-26111-00-00

1
Out of stock

1

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

2

HOLDER, LEVER (L.H)

214-82911-01-00

1

$48.32

In stock

2

LEVER HOLDER ASSY 2

233-82920-32-00

1
Out of stock

3

HOLDER, LEVER (R.H)

233-82921-31-00

1

$58.60

In stock

4

LEVER(L.H)

214-83912-00-00

1

$19.48

In stock

5

LEVER(R.H)

233-83922-30-00

1

$19.29

In stock

6

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

. SCREW, LVR FITTING

214-83915-00-00

1
Out of stock

8

. BOLT

90109-05197-00

1
Out of stock

8

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

9

. NUT, SLOTTED

95301-06900-00

1
Out of stock

9

NUT, HEXAGON SMALL

95317-05700-00

1

$6.18

In stock

9

NUT(650)

95380-06700-00

—

$6.17

In stock

10

. PIN, COTTER

91401-12018-00

1
Out of stock

11

HOLDER, HANDLE SWCH

214-83974-00-00

1
Out of stock

12

GRIP LH

214-26241-00-00

1
Out of stock

13

GRIP (R.H)

1A0-26242-01-00

—
Out of stock

14

CAP, GRIP UPPER

214-26281-01-00

1
Out of stock

15

CAP, GRIP LOWER

214-26282-01-00

1
Out of stock

16

TUBE, GUIDE

214-26243-00-00

—

$39.75

In stock

17

RING, LEAF

150-26249-00-00

1
Out of stock

18

SCREW, PAN HEAD(4MY)

98507-05018-00

—

$2.48

In stock

19

CONNECTOR, CABLE

214-26261-01-00

—

$10.29

In stock

20

CABLE, THROTTLE 1

214-26311-00-00

1
Out of stock

21

CABLE, THROTTLE 2

214-26312-00-00

1
Out of stock

22

CABLE, PUMP

214-26321-00-00

1
Out of stock

23

WIRE, CLUTCH

360-26335-00-00

—
Out of stock

24

BOLT

90123-08002-00

—

$8.93

In stock

25

NUT

90179-08030-00

—

$3.78

In stock

26

CABLE, BRAKE

214-26341-00-00

1
Out of stock

27

BOLT

90123-08002-00

—

$8.93

In stock

28

COLLAR, LEVER

214-83913-00-00

—

$6.49

In stock
