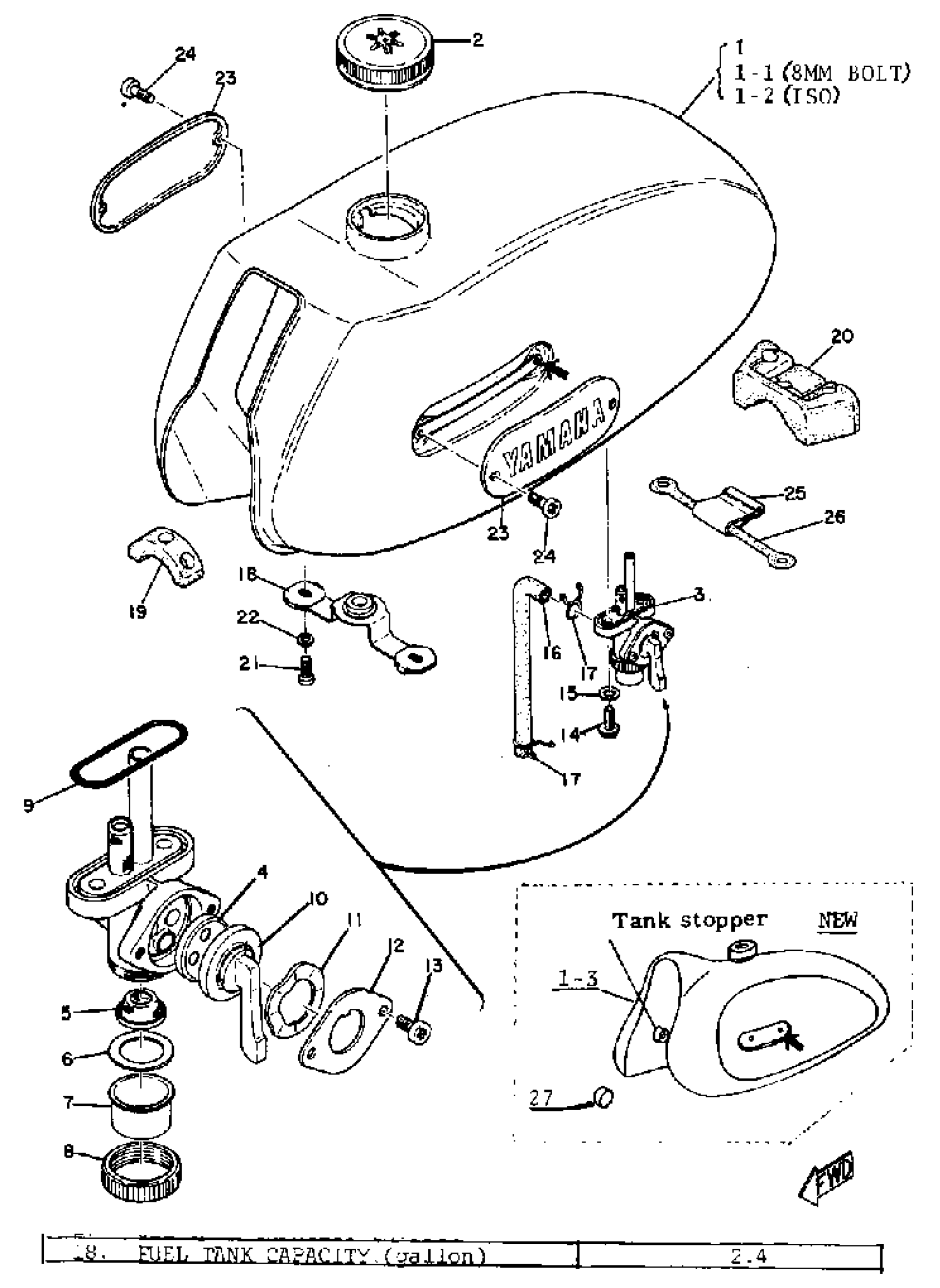

Yamaha DT1 (DT1) 1968 FUEL TANK Diagram

UNAVAILABLE IN PRICE BOOK

214-24110-02-33

Unavailable

EMBLEM 1

214-24161-00-00

Unavailable

WASHER, PLAIN

92990-08200-00

Unavailable

BOLT, HEXAGON

97013-08016-00

$1.01

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

CAP ASSY

122-24610-01-00

$22.99

FUEL COCK ASSY

498-24500-01-00

$127.99

VALVE

214-24523-00-00

$43.99

. NET, FILTER 2

214-24515-00-00

Unavailable

GASKET, FILTER

214-24522-00-00

Unavailable

. CUP, FILTER

214-24521-00-00

Unavailable

. NUT

214-24531-00-00

Unavailable

GASKET, BODY

214-24512-00-00

$30.99

LEVER, COCK

(214-24524-01-00)

Unavailable

WASHER WAVE 137245180000

90206-18025-00

Unavailable

PLATE, LEVER FITTING

(214-24525-00-00)

Unavailable

SCREW, LEVER FITTING

214-24535-00-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

HOSE (L198)

90445-11293-00

Unavailable

CLIP

90467-100A1-00

Unavailable

STAY, FUEL TANK 1

(214-24115-00-00)

Unavailable

DAMPER, LOCATING 3

(214-24183-00-00)

Unavailable

DAMPER, LOCATING 4

214-24184-00-00

Unavailable

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

EMBLEM 1

211-24161-00-00

Unavailable

SCREW, PAN HEAD

(92503-04008-00)

Unavailable

BAND, TANK FITTING 1

214-24173-00-00

Unavailable

BAND, TNK FITTING 2

143-24199-00-00

Unavailable

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable
