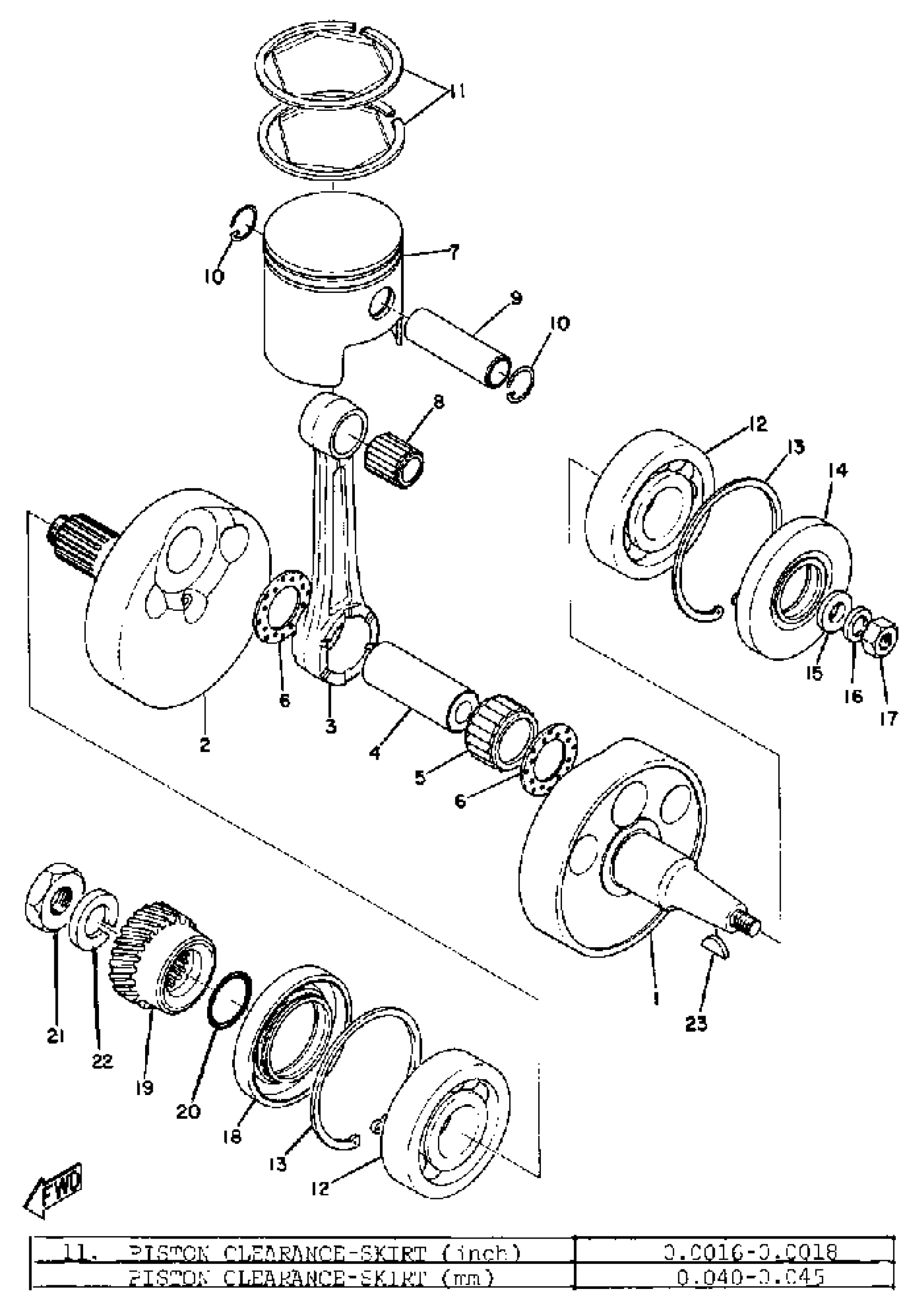

Yamaha DT1 (DT1) 1968 CRANK SHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(214-11400-01-00)

Unavailable

1

CRANK 1

(214-11412-01-00)

Unavailable

1

CRANK 1

(214-11412-01-00)

Unavailable

1

NUT(55K)

90170-12347-00

$10.49

1

WASHER (492)

90201-12535-00

Unavailable

1

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

2

CRANK 2

(214-11422-00-00)

Unavailable

3

. ROD, CONNECTING

431-11651-00-00

Unavailable

4

. PIN, CRANK 1 (DIA 24MM)

214-11681-00-00

Unavailable

5

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

$119.99

6

WASHER (152-11685-00)

90209-24073-00

$14.99

7

PISTON STD

214-11631-01-96

Unavailable

7

PISTON STD

(214-11631-01-96)

Unavailable

7

UNAVAILABLE IN PRICE BOOK

214-11635-00-00

Unavailable

7

PISTON 1 O/S 0.25

214-11635-01-00

Unavailable

7

UNAVAILABLE IN PRICE BOOK

214-11636-00-00

Unavailable

7

PISTON 2 O/S 0.50

214-11636-01-00

Unavailable

7

PISTON 3 O/S 0.75

214-11637-01-00

Unavailable

7

PISTON 3 O/S 0.75

214-11637-01-00

Unavailable

7

PISTON 4 O/S 1.00

214-11638-01-00

Unavailable

7

PISTON 4 O/S 1.00

214-11638-01-00

Unavailable

8

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

Unavailable

9

PIN, PISTON

214-11633-00-00

Unavailable

10

CLIP 6041163400

93450-20026-00

Unavailable

11

RING SET STD W/EXP

214-11601-02-00

Unavailable

11

RING SET STD KS

214-11601-03-00

Unavailable

11

RING SET 1ST W/EXP

(214-11601-12-00)

Unavailable

11

RING SET 1ST KS

214-11601-13-00

Unavailable

11

RING SET 2ND W/EXP

214-11601-22-00

Unavailable

11

RING SET 2ND KS

214-11601-23-00

Unavailable

11

PISTON RINGSET 3RD

214-11601-32-00

Unavailable

11

RING SET 3RD KS

214-11601-33-00

Unavailable

11

PISTON RINGSET 4TH

214-11601-42-00

Unavailable

11

RING SET 4TH KS

214-11601-43-00

Unavailable

12

BEARING(3KW)

93306-30630-00

Unavailable

13

CIRCLIP, R-TYPE

(93420-72023-00)

Unavailable

14

OIL SEAL, SW-TYPE (SW-30-72-10)

93103-30044-00

Unavailable

15

WASHER 1

(214-11557-00-00)

Unavailable

16

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

17

NUT, CRANKSHAFT 1

(214-11555-00-00)

Unavailable

18

OIL SEAL, SW-TYPE (SW-42-72-10)

93103-42045-00

Unavailable

19

GEAR, PRI DRIVE

(214-16111-00-00)

Unavailable

20

O-RING (437)

93210-24235-00

Unavailable

21

NUT

90170-18089-00

Unavailable

22

WASHER(N15)

92907-18100-00

Unavailable

23

KEY, WOODRUFF

214-11545-00-00

Unavailable
