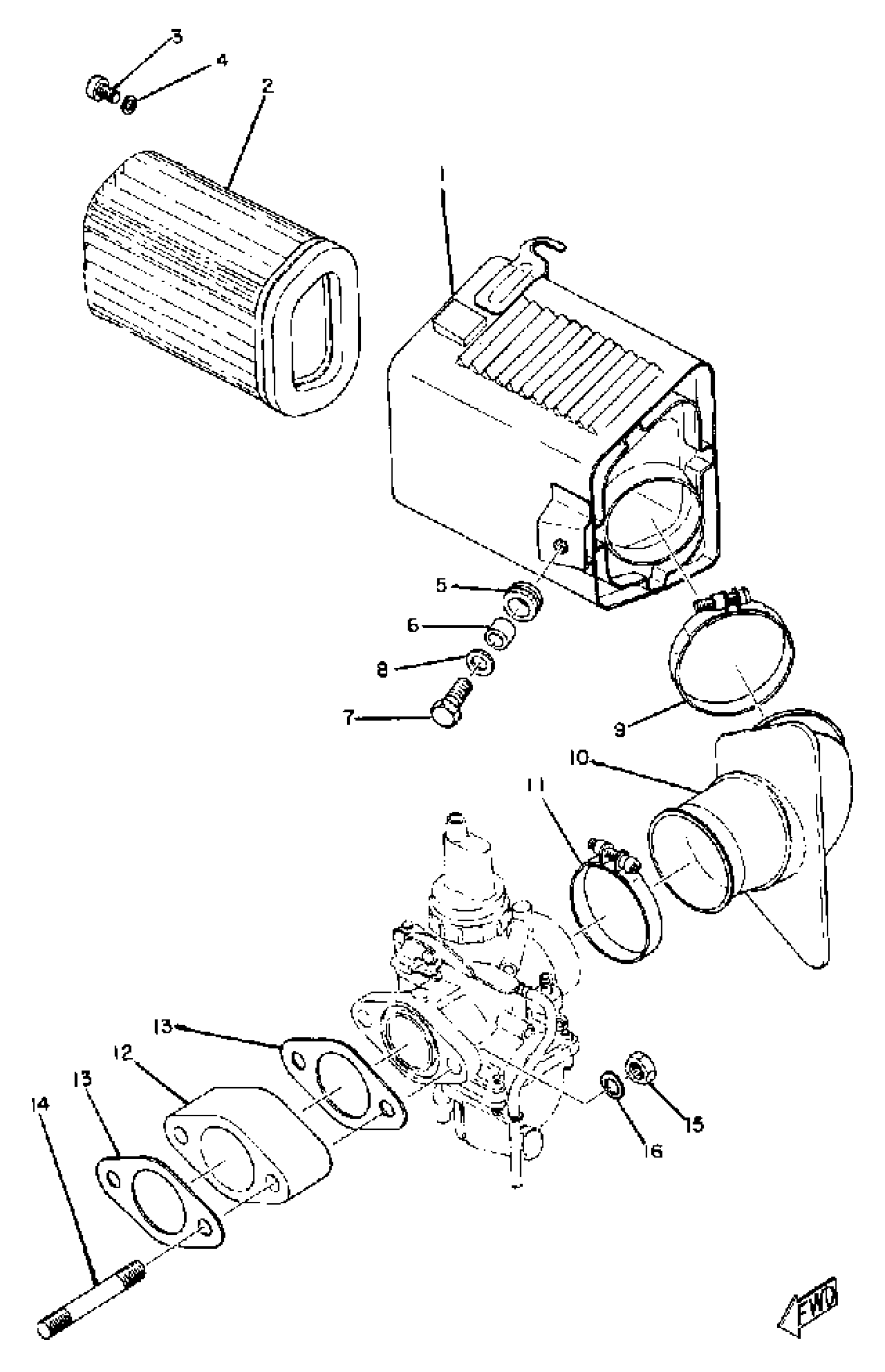

Yamaha DT1 (DT1) 1968 AIR CLEANER Diagram

#

Description
Price

1

CASE,AIR CLEANER 1

214-14411-02-00

Unavailable

1

CASE, AIR CLEANER 1

(214-14411-02-00)

Unavailable

1

FILTRON K205

(214-14451-99-00)

Unavailable

2

ELEMENT, AIR CLNR

(214-14451-00-00)

Unavailable

3

SCREW PAN HEAD

98580-06010-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

GROMMET 839774310000

90480-14023-00

$7.49

6

COLLAR (J10)

90387-06026-00

$8.49

7

BOLT(3DM)

97024-06020-00

$8.49

8

WASHER, PLATE

90201-06380-00

$0.60

9

HOSE CLAMP ASSY

90450-54008-00

$7.49

10

JOINT, AIR CLNR 1

214-14453-01-00

Unavailable

11

CLAMP, H0SE (29R)

90460-49248-00

$24.99

12

MANIFOLD, INTAKE

214-13555-01-00

Unavailable

13

GASKET

214-13556-09-00

$7.99

14

BOLT, STUD

(90116-08059-00)

Unavailable

15

NUT(6L2)

95333-08600-00

Unavailable

16

CASE, AIR CLEANER 1

(214-14411-02-00)

Unavailable

16

FILTRON K205

(214-14451-99-00)

Unavailable

16

GUIDE, ELEMENT

214-14458-00-00

Unavailable

16

NO LONGER AVAILABLE

90116-08059-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
