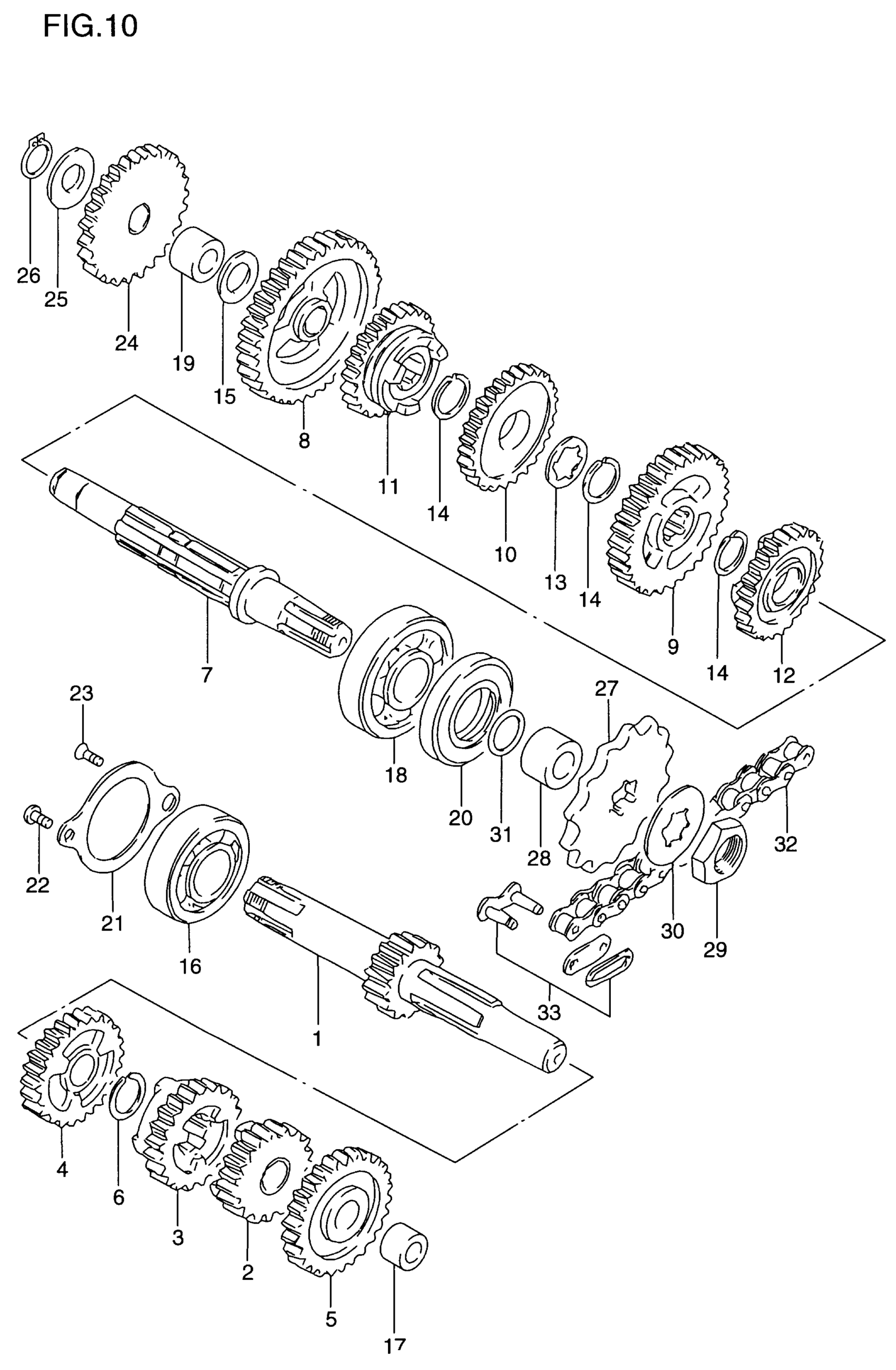

Suzuki DS80 (2000) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:15)

24121-46001

Unavailable

2

GEAR, 2ND DRIVE (NT:19)

24220-46000

Unavailable

3

GEAR, 3RD DRIVE (NT:22)

24231-46001

Unavailable

4

GEAR, 4TH DRIVE (NT:24)

24241-46000

Unavailable

5

GEAR, 5TH DRIVE (NT:26)

24251-46001

Unavailable

6

CIRCLIP

09380-17007

Unavailable

7

DRIVESHAFT

24131-46000

Unavailable

8

GEAR, 1ST DRIVEN (NT:35)

24310-46001

Unavailable

9

GEAR, 2ND DRIVEN (NT:32)

24321-46001

Unavailable

10

GEAR, 3RD DRIVEN (NT:29)

24331-46000

Unavailable

11

GEAR, 4TH DRIVEN (NT:26)

24341-46000

Unavailable

12

GEAR, 5TH DRIVEN (NT:24)

24351-46000

Unavailable

13

WASHER (13X24X1)

09160-13006

Unavailable

14

CIRCLIP

09380-17007

Unavailable

15

WASHER (17.1X23X1.0)

09167-17003

Unavailable

16

BEARING (17X40X12)

09262-17023

$16.75

17

BUSH

09303-13001

Unavailable

18

BEARING

08113-63030

$23.65

19

BUSH

09303-13001

Unavailable

20

OIL SEAL (21X40X6)

09283-21003

$6.17

21

HOLDER, BEARING

24741-46000

Unavailable

22

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

23

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

24

GEAR, KICK IDLE (NT:26)

26260-46001

Unavailable

25

WASHER

08211-12261

$2.50

26

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

27

SPROCKET, ENGINE (NT:12)

27511-46700

$15.26

28

SPACER (17X21X13)

09180-17008

$8.58

29

NUT

09140-16002

$3.16

30

WASHER (16.1X33X0.8)

09167-16001

$1.87

31

O RING (D:1,ID:16.8)

09280-17001

$1.49

32

CHAIN, DRIVE (DID428X96L) | MODEL T

27600-27412

Unavailable

32

CHAIN ASSY DRIV | MODEL V/W/X/Y,L:112(r)96 This part replaces 27600-20910-112.

27600-20911-112

$27.73

33

.JOINT SET, CHAIN This part replaces 27620-20910.

27620-20911

$5.30
