Description

Price

1

SWINGING ARM ASSY, REAR (SILVER) | Includes Item(s) 2

61000-03430-13L

Unavailable

2

BUSHING (10X23X37)

09319-10024

$11.28

3

SHAFT, PIVOT

61211-03401

$17.58

4

NUT

08319-31107

$2.73

5

BUFFER, CHAIN TOUCH DEFENSE

61273-03400

$17.87

6

CASE, CHAIN (BLACK)

61311-03410-291

$57.48

7

WASHER

09169-06026

$2.20

8

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

9

SCREW This part replaces 02112-06103.

02112-0610B

$1.84

10

TORQUE LINK, REAR (SILVER)

64311-03400-13L

$19.15

11

BOLT, TORQUE LINK FRONT (8X22)

09111-08015

$3.16

12

BOLT, REAR BRAKE PANEL (8X26.5)

09111-08013

$3.04

13

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

14

NUT

09140-08008

$1.49

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

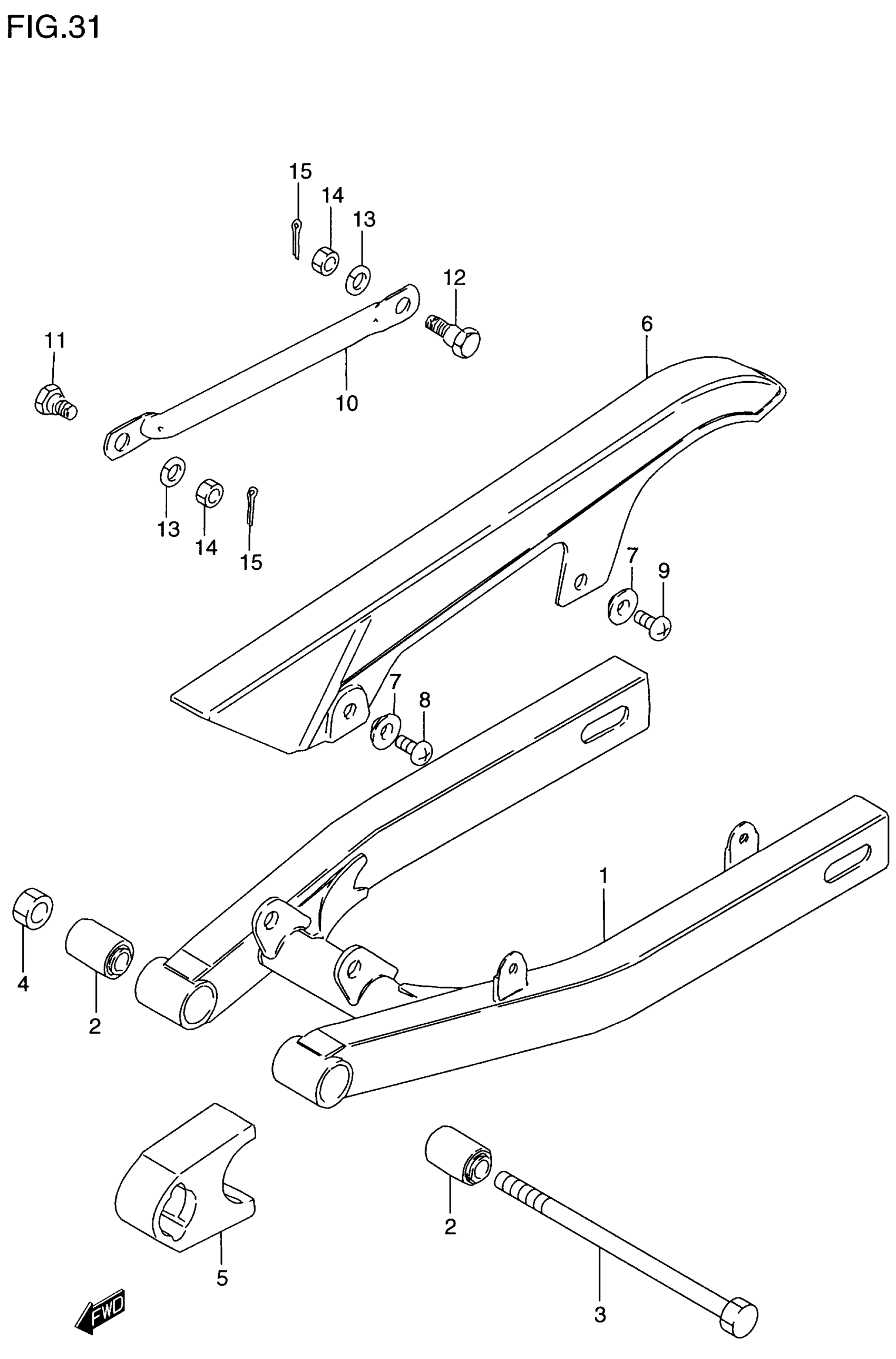

Suzuki DS80 (2000) REAR SWINGING ARM Diagram

SWINGING ARM ASSY, REAR (SILVER) | Includes Item(s) 2

BUSHING (10X23X37)

SHAFT, PIVOT

NUT

BUFFER, CHAIN TOUCH DEFENSE

CASE, CHAIN (BLACK)

WASHER

SCREW This part replaces 02112-06103.

SCREW This part replaces 02112-06103.

TORQUE LINK, REAR (SILVER)

BOLT, TORQUE LINK FRONT (8X22)

BOLT, REAR BRAKE PANEL (8X26.5)

LOCK WASHER This part replaces 08321-01083.

NUT

COTTER PIN This part replaces 04111-20208.
