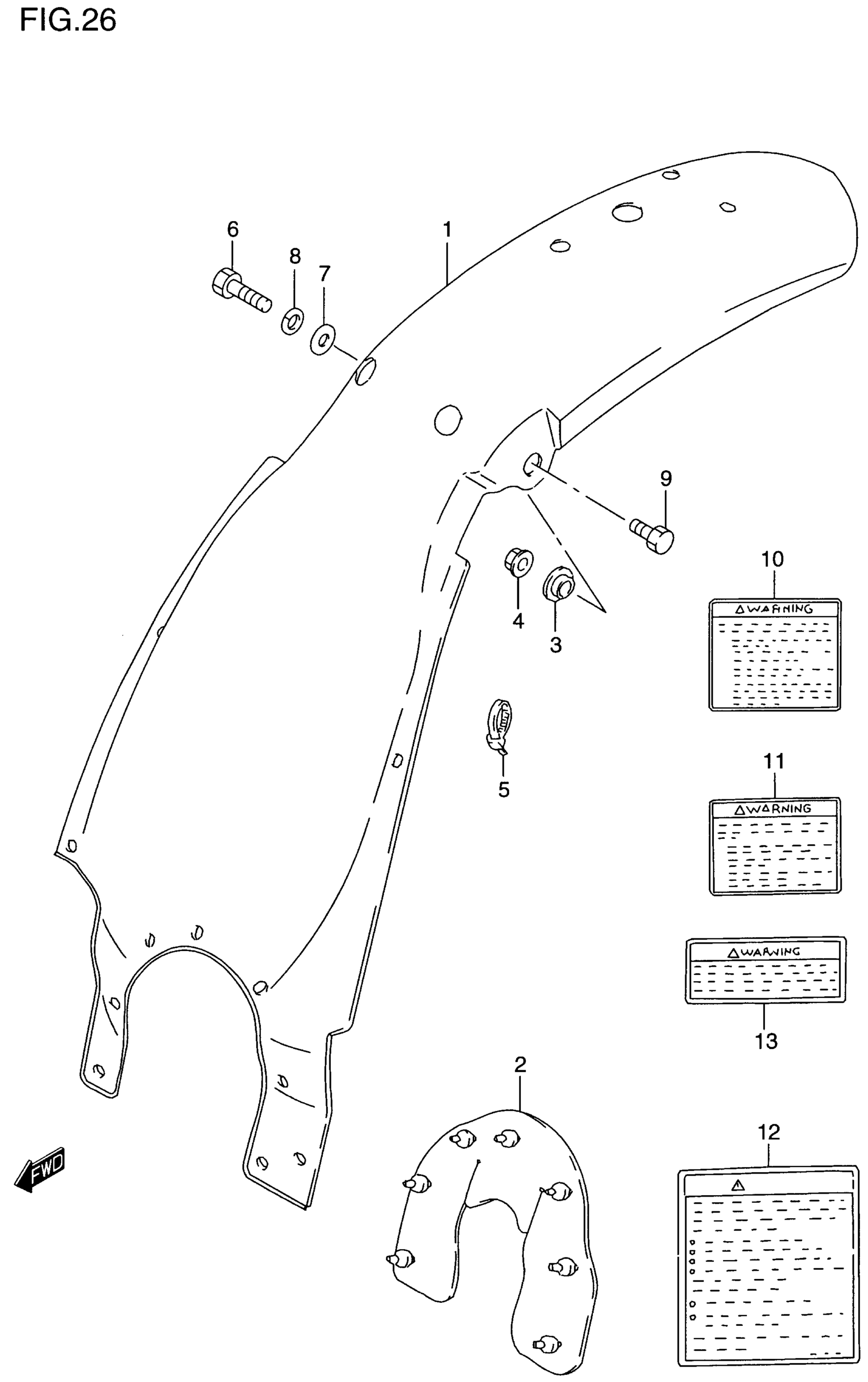

Suzuki DS80 (2000) REAR FENDER (MODEL T/V/W/X) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-03400-25Y

Unavailable

1

FENDER, REAR (YELLOW) | E28

63111-03410-25Y

Unavailable

2

MUD GUARD, REAR FENDER

63411-03400

$12.63

3

NO DESCRIPTION AVAILABLE This part replaces 09169-08026.

09169-08026-XC0

Unavailable

4

NUT

08319-31087

$2.32

5

CLAMP | MODEL T This part replaces 09407-20405.

09407-25402

$4.64

5

CLAMP | MODEL V/W/X

09407-25402

$4.64

6

BOLT This part replaces 01500-08353.

01500-0835B

$3.04

7

WASHER, EXHAUST SUPPORT | MODEL T/V This part replaces 09160-08002.

09160-08135

$2.35

7

WASHER | M0DEL W/X

09160-08135

$2.35

8

LOCK WASHER This part replaces 08321-01083.

08321-0108A

$1.84

9

BOLT This part replaces 01580-08253.

01580-0825A

$3.18

10

LABEL, WARNING | MODEL T/V/W

68369-03401

Unavailable

11

LABEL,GENERAL W | MODEL T/V/W This part replaces 68319-33E00.

68319-33E02

$7.25

11

LABEL, WARNING | MODEL X

68921-03400

Unavailable

11

LABEL, WARNING | MODEL T/V/W E28

68319-03410

Unavailable

11

LABEL, WARNING | MODEL X E28

68921-03410

Unavailable

12

LABEL, ATTENTION | MODEL T/V/W E28

68366-03401

Unavailable

13

LABEL,MANUAL NOTICE This part replaces 68353-26E01.

68353-26E03

$5.05

14

MANUAL, OWNER'S | MODEL T

99011-03454-03A

Unavailable

14

MANUAL, OWNER'S | MODEL V

99011-03455-03A

Unavailable

14

MANUAL, OWNER'S | MODEL W

99011-03456-03A

Unavailable

14

MANUAL, OWNER'S | MODEL X

99011-03457-03A

Unavailable

14

MANUAL, OWNER'S | MODEL T E28

99011-03454-01B

Unavailable

14

MANUAL, OWNER'S | MODEL V E28

99011-03455-01B

Unavailable

14

MANUAL, OWNER'S | MODEL W E28

99011-03456-01B

Unavailable

14

MANUAL, OWNER'S | MODEL X E28 DRAWING NOT SHOWN

99011-03457-01B

Unavailable
