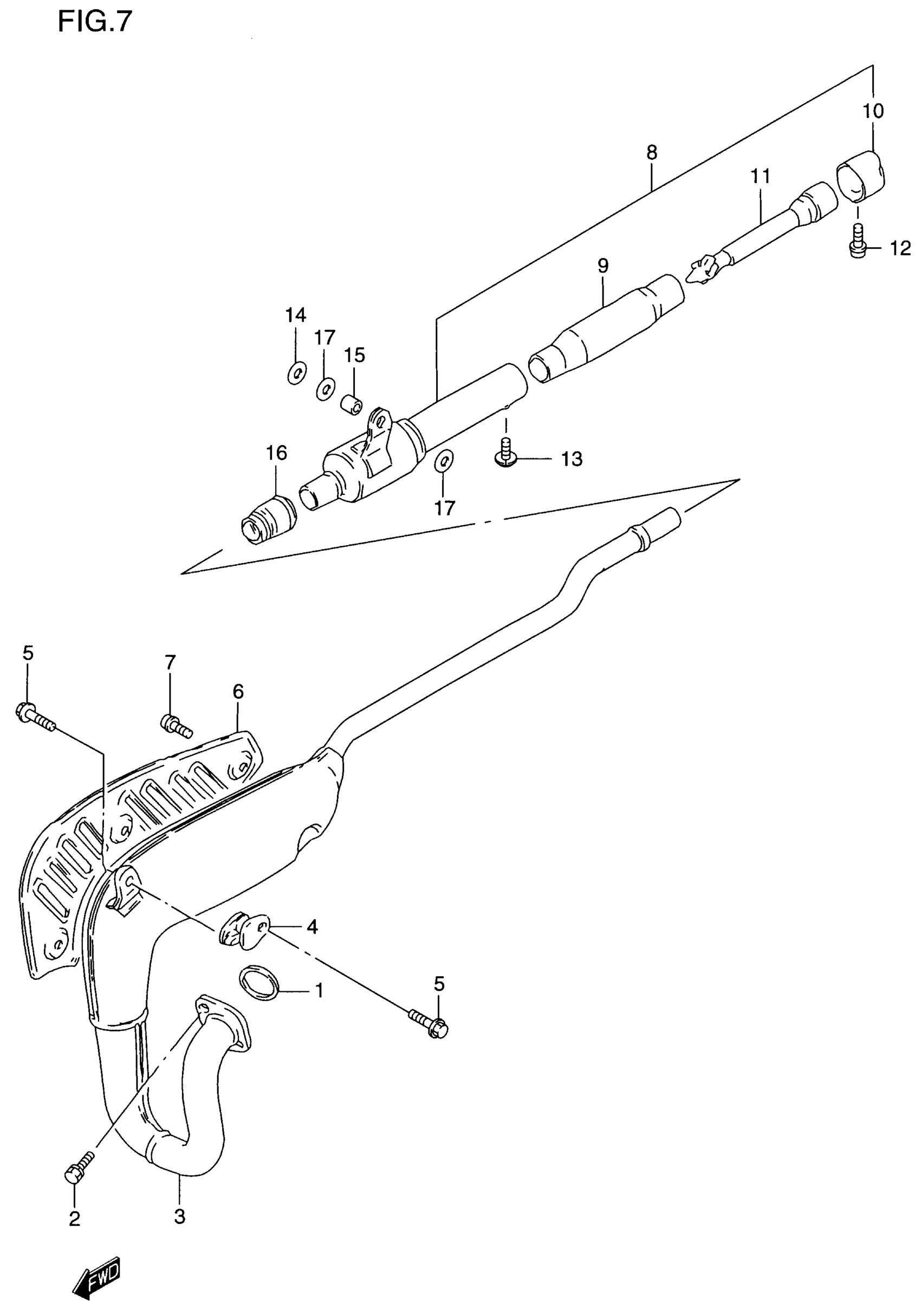

Suzuki DS80 (2000) MUFFLER Diagram

#

Description
Price

1

.GASKET,EXHAUST

14181-18C00

$7.22

2

BOLT This part replaces 01570-06203.

01570-0620A

$2.19

3

MUFFLER, 1ST

14310-03420-H01

Unavailable

4

DAMPER,MUFFLER This part replaces 14770-20400.

14770-20402

$11.75

5

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

6

COVER, MUFFLER

14781-03400

$27.97

7

SCREW This part replaces 02112-76103.

02112-7610A

$2.28

8

MUFFLER, 2ND | Includes Item(s) 9 - 13

14303-03441-H01

Unavailable

9

SHELL, ARRESTER

14815-46600

Unavailable

10

CUTTER, MUFFLER TEAL This part replaces 14817-03412.

14817-46600

$17.02

11

TUBE, CLEAN OUT

14850-30602

$50.97

12

SCREW This part replaces 02112-36083.

02112-3608A

$2.45

13

SCREW This part replaces 02112-36163.

02112-3616A

$1.97

14

WASHER (8.5X26X1.6) | MODEL T/V This part replaces 09160-08004.

09160-08134

$2.03

14

WASHER (8.5X26X1.6) | MODEL W/X/Y

09160-08134

$2.03

15

SPACER, TAIL COVER RR RR | ~F.NO.102374 This part replaces 09180-08050.

09180-08199

$2.12

15

SPACER (8.5X14X9) | F.NO.102375~

09180-08199

$2.12

16

CONNECTOR

14771-48002

$13.04

17

CUSHION This part replaces 09320-14006.

14761-03450

$1.80
