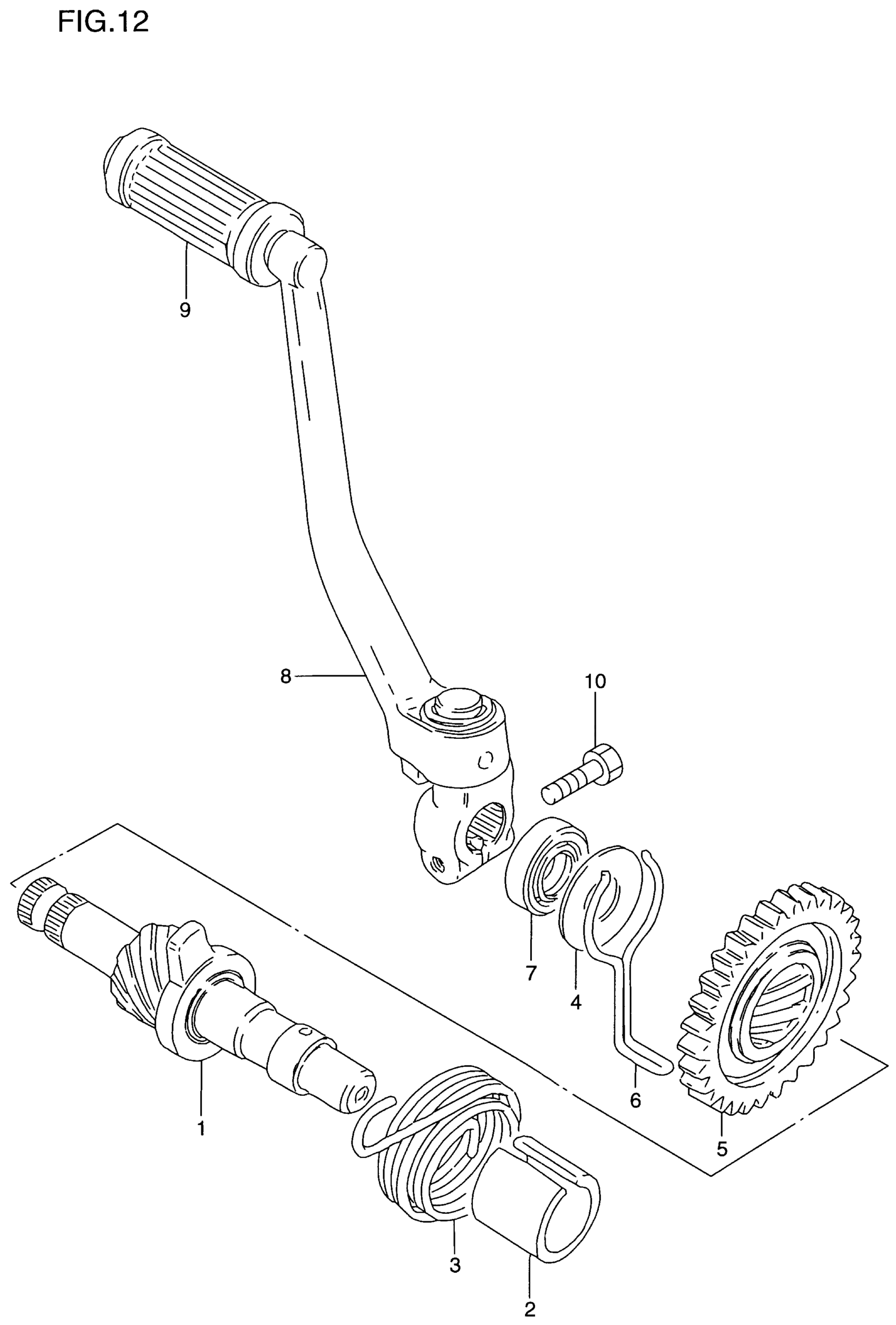

Suzuki DS80 (2000) KICK STARTER Diagram

#

Description

Price

1

SHAFT, KICK STARTER

26210-46001

$67.10

2

GUIDE, SPRING

26221-46000

$8.12

3

SPRING

09448-40001

$6.32

4

WASHER (14X29X1.5) This part replaces 09160-14046.

09160-14046-XC0

$4.83

5

GEAR, KICK DRIVE (NT:30)

26241-46000

$70.30

6

SPRING

09384-28001

$2.45

7

OIL SEAL (14X24X6) This part replaces 09285-14001.

09285-14002

$16.88

8

LEVER ASSY,KICK | Includes Item(s) 9 This part replaces 26300-26420.

26300-26421

$78.21

9

RUBBER,KICK STA This part replaces 26352-01000.

26352-01020

$3.25

10

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78
