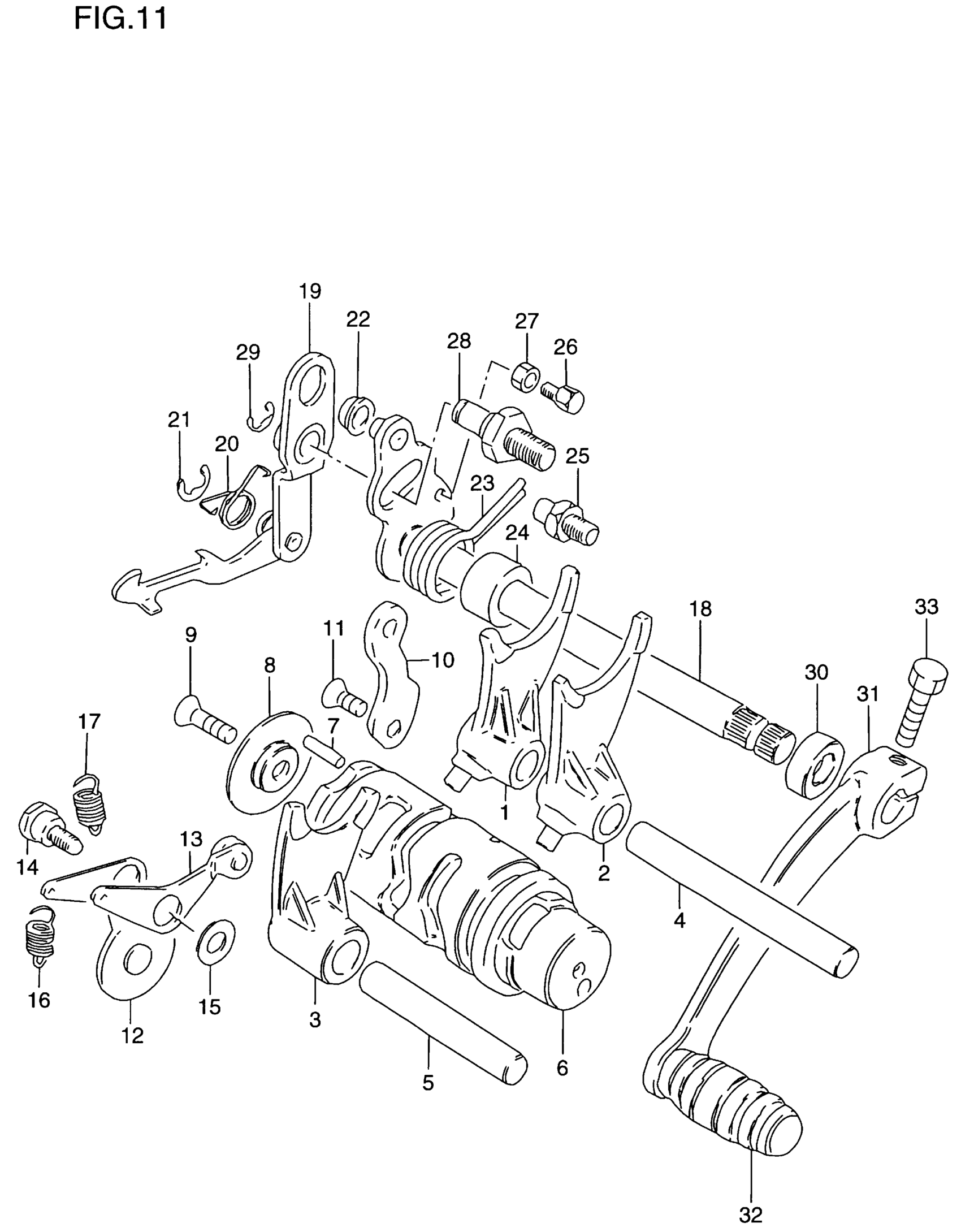

Suzuki DS80 (2000) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-46003

Unavailable

2

FORK, GEAR SHIFTING NO.2

25221-46000

Unavailable

3

FORK, GEAR SHIFTING NO.3

25231-46001

Unavailable

4

SHAFT, GEAR SHIFTING NO.1

25411-14331

$23.07

5

SHAFT, NO.1 | MODEL T/V/W/X This part replaces 25421-35403.

25421-35410

$23.47

5

SHAFT, GEAR SHIFTING NO.2 | MODEL Y

25421-35410

$23.47

6

CAM, GEAR SHIFTING | MODEL T/V This part replaces 25311-46000.

25311-46001

Unavailable

6

CAM, GEAR SHIFTING | MODEL W/X/Y

25311-46001

Unavailable

7

PIN | 4X15.8

09261-04009

$1.56

7

PIN | 4X18

09209-04015

Unavailable

8

RETAINER, PIN

25322-46000

$7.77

9

SCREW This part replaces 02122-06203.

02122-0620A

$1.49

10

GUIDE, CAM

25341-46000

Unavailable

11

SCREW This part replaces 02122-06123.

02122-0612A

$1.49

12

STOPPER, CAM

25350-46000

Unavailable

13

STOPPER, CAM NEUTRAL

25390-46001

Unavailable

14

BOLT

09111-06020

Unavailable

15

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

16

SPRING

09443-08017

$2.23

17

SPRING

09443-10017

Unavailable

18

SHAFT, GEAR SHIFTING

25510-46002

$44.07

19

PAWL | Includes Item(s) 20 - 21

25540-46004

Unavailable

20

SPRING

09448-13006

$2.53

21

E RING This part replaces 08332-11073.

08332-1107A

$1.78

22

ROLLER

09180-07014

$4.11

23

SPRING

09444-26015

Unavailable

24

SPACER (12X20X15.3)

09180-12083

$2.45

25

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

26

BOLT

25673-46000

Unavailable

27

NUT

09140-06023

$2.06

28

STOPPER, ARM This part replaces 25672-46001.

25672-46002

Unavailable

29

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.49

30

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

31

LEVER ASSY,GEAR | Includes Item(s) 32 This part replaces 25600-16520.

25600-16521

$49.59

32

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.74

33

BOLT, GEAR SHIFT LINK This part replaces 01500-06203.

01500-0620A

$1.78
