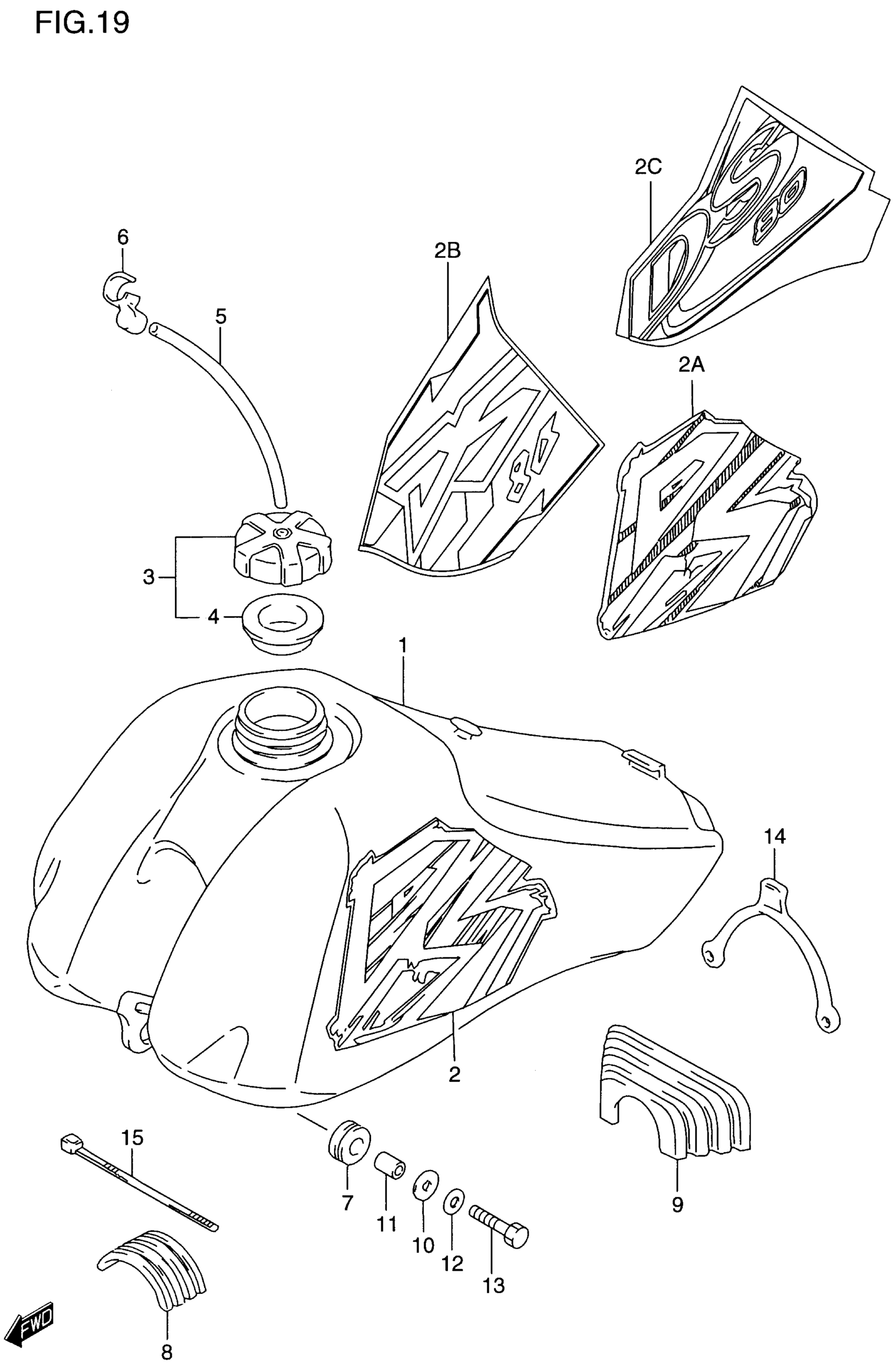

Suzuki DS80 (2000) FUEL TANK (MODEL T/V/W/X) Diagram

#

Description
Price

1

TANK ASSY, FUEL (YELLOW)

44110-03400-25Y

Unavailable

2

EMBLEM, FUEL TANK | MODEL T

68120-03430-E9Z

Unavailable

2A

EMBLEM, FUEL TANK | MODEL V

68120-03440-G1Y

Unavailable

2B

EMBLEM, FUEL TANK | MODEL W

68120-03450-J3P

Unavailable

2C

EMBLEM, FUEL TANK | MODEL X

68120-03460-M2V

Unavailable

3

CAP SET,FUEL TA | Includes Item(s) 4 This part replaces 44200-40821.

44200-40822

$14.76

4

GASKET This part replaces 44248-05210.

44248-05211

$3.76

5

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

6

CLAMP

44486-03400

$5.32

7

CUSHION, FRONT

09320-10025

Unavailable

8

CUSHION, UPPER FRONT

44541-14300

$8.12

9

CUSHION, UPPER REAR

44542-03400

$17.07

10

WASHER, 6.5X24X1.6 | MODEL T/V This part replaces 09160-06074.

09160-06501

$1.86

10

WASHER | MODEL W/X

09160-06501

$1.86

11

SPACER | MODEL T This part replaces 09180-06046.

09180-06292

$2.47

11

SPACER | MODEL V/W/X

09180-06292

$2.47

12

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

13

BOLT, GEAR SHIFT ARM This part replaces 01500-06253.

01500-0625A

$1.78

14

BAND, REAR

44561-03400

Unavailable

15

CLAMP | MODEL T This part replaces 09407-20405.

09407-25402

$4.64

15

CLAMP | MODEL V/W/X

09407-25402

$4.64
