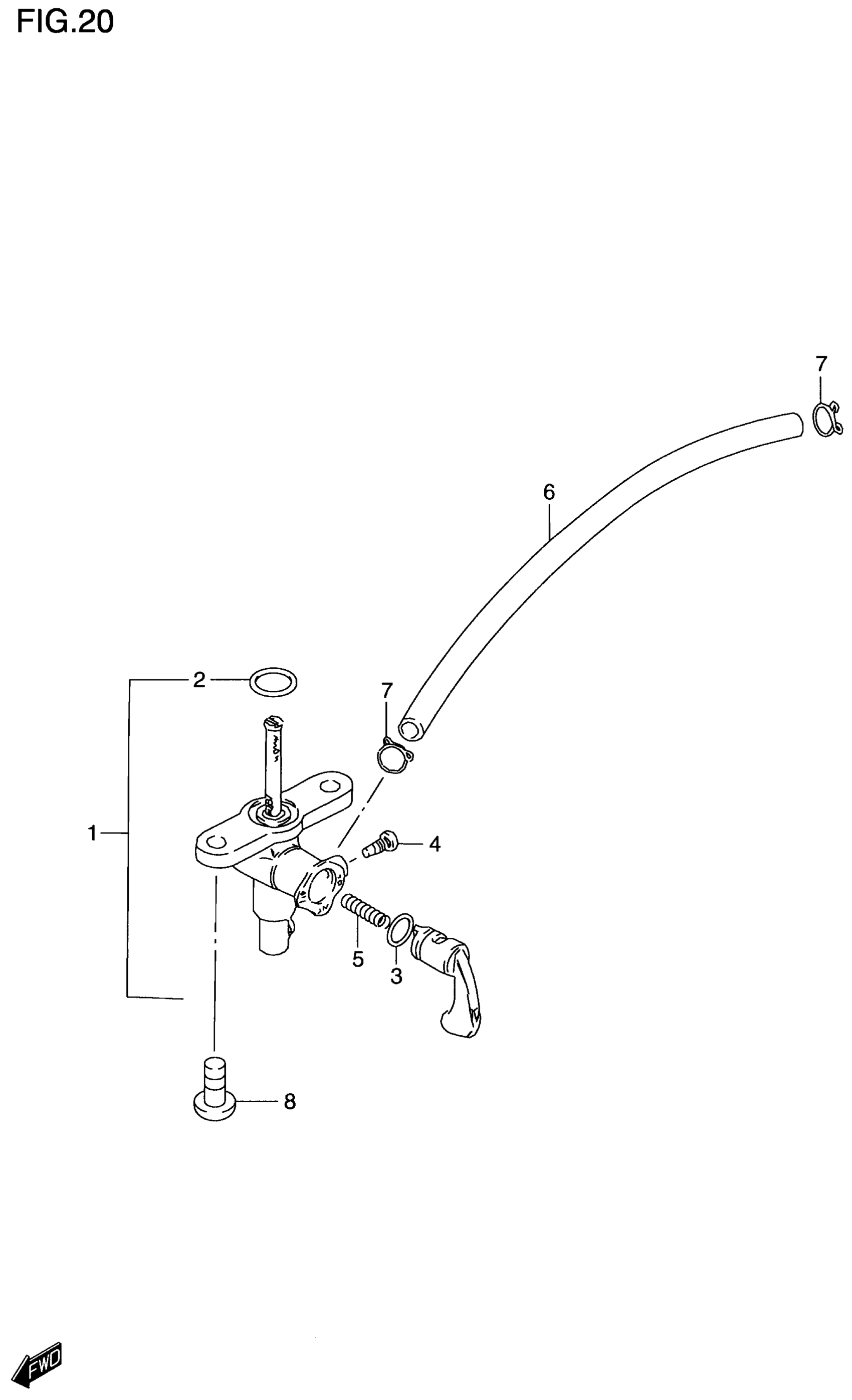

Suzuki DS80 (2000) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY, FUEL | Includes Item(s) 2 - 5

44300-03400

Unavailable

2

O RING, JOINT

44348-41370

$1.91

3

O RING, LEVER

44353-41370

$4.37

4

SCREW

44343-41370

$2.22

5

SPRING | MODEL T/V/W This part replaces 44357-41370.

44357-32470

$2.21

5

SPRING | MODEL X/Y

44357-32470

$2.21

6

HOSE,5X10X600 This part replaces 09352-50823-600.

44421-13ER0

$10.06

7

CLIP

09401-08401

$1.54

8

SCREW This part replaces 02112-36163.

02112-3616A

$1.97
