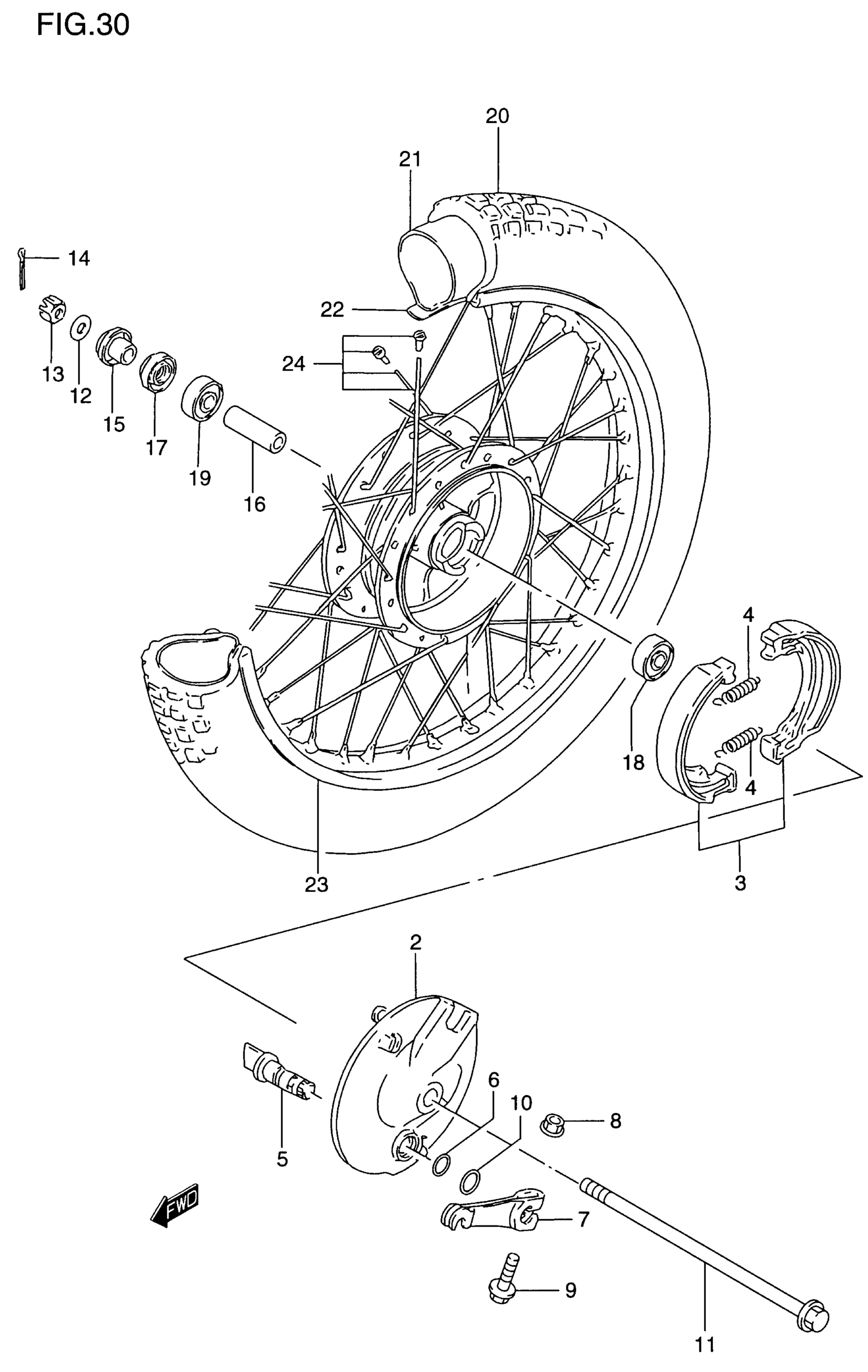

Suzuki DS80 (2000) FRONT WHEEL Diagram

#

Description
Price

1

DRUM, FRONT HUB

54110-46500

Unavailable

2

PANEL, FRONT BRAKE ANCHOR

54210-46002

Unavailable

3

SHOE SET, BRAKE

54401-43810

$33.51

4

SPRING

09443-07025

$2.08

5

SHAFT, BRAKE CAM

54441-26503

Unavailable

6

DUST SEAL (ID:13.8,D:2.50)

09280-14011

$4.77

7

LEVER, FR BRAKE CAM

54451-26500

$14.76

8

NUT This part replaces 08316-10063.

08316-1006B

$2.50

9

BOLT This part replaces 01550-06353.

01550-0635A

$2.32

10

WASHER

09160-14055

$2.39

11

AXLE, FRONT

54711-04711

$33.12

12

WASHER, REAR | MODEL T/V This part replaces 09160-10085.

09160-10142

$2.34

12

WASHER | MODEL W/X/Y

09160-10123

$2.12

13

NUT This part replaces 08314-40103.

08314-4010B

$2.50

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

SPACER, FR AXLE RH

54740-26101

$18.87

16

SPACER (10.2X16X51)

09180-10148

$8.18

17

OIL SEAL (15X31X5)

09284-15001

$4.73

18

BEARING This part replaces 08143-63007.

08143-6300B

$15.33

19

BEARING This part replaces 08113-62007.

08113-6200B

$11.92

20

TIRE, FRONT (2.50-14 4PR) IRC

55100-46420

$79.62

21

TUBE,INNER This part replaces 55200-46410.

55200-46411

$17.96

22

PROTECTOR,INNER This part replaces 55261-24010.

55261-24020

$3.45

23

RIM, WHEEL (1.40X14)

55311-03400

Unavailable

24

SPOKE SET, FRONT WHEEL

55320-03410

$37.53
